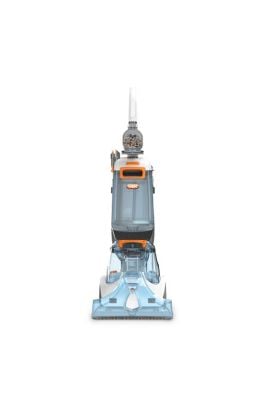

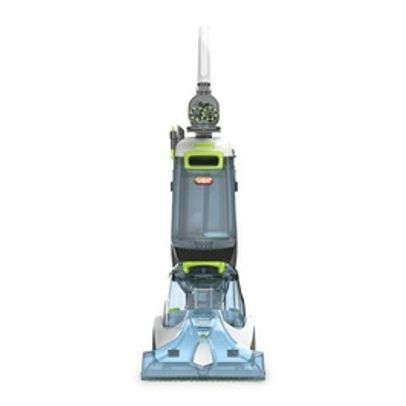

Dual V Advance

How to videos and documents

Useful video and PDF guides, showing you how to use, maintain and fix your Vax product.

Maintenance

Here is what you can do to keep your appliance performing at its best.

Clearing a blockage in the nozzle

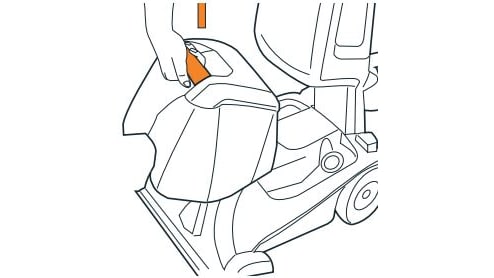

Remove tank

Lift the dirty water tank to remove.

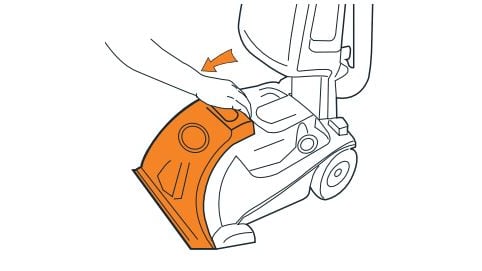

Lift nozzle

Lift and pull top of nozzle to remove.

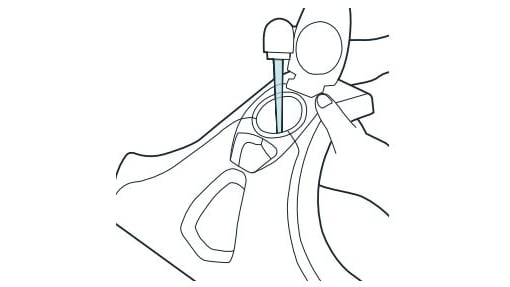

Rinse nozzle

Rinse nozzle under water (Max 40°C) to remove any dirt and debris.

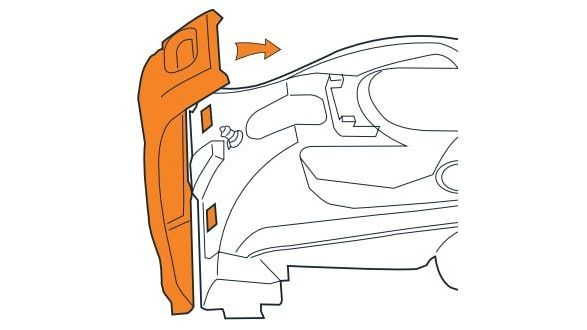

Replace nozzle

Line up the tabs on nozzle with the holes on the machine. Slide the tabs into the holes and press down on the nozzle until clicks into place.

Cleaning the dirty water tank and filter
Remove tank

Pull to remove the dirty water tank.

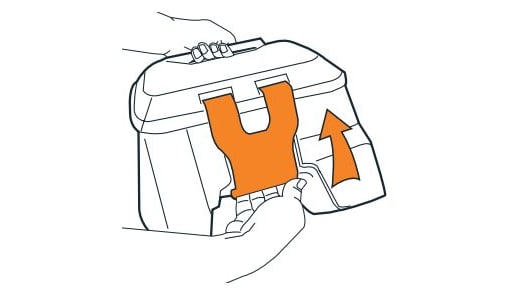

Lift clip

Lift the dirty water tank clip up to release.

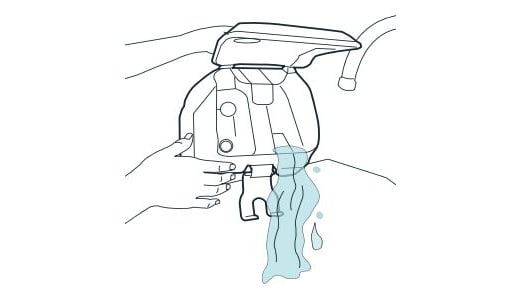

Rinse DWT

Empty dirty water over the sink. Rinse the dirty water tank and lid under water (max 40ºC) to remove any dirt or debris.

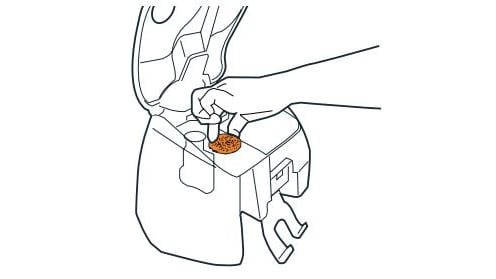

Clean filter

Wipe clean the filter screen located at the back of the dirty water tank.

Cleaning the Spin Scrub brushbar

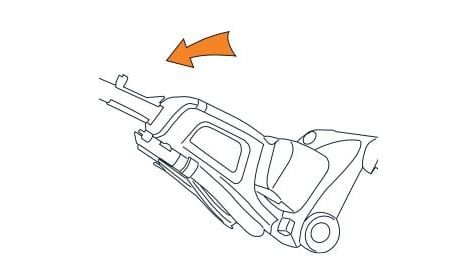

Remove tanks

Switch off the machine and unplug from the mains. Remove the tanks and lie the machine on its back.

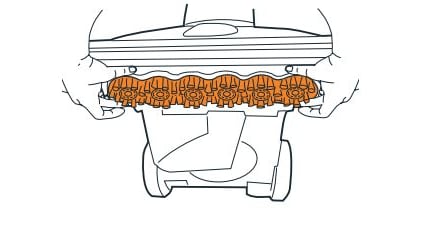

Remove brushes

Firmly pull sides of Spin Scrub cover to remove the brushbar from the machine.

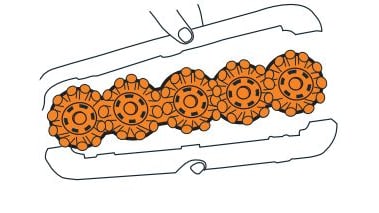

Unclip brushes

Firmly pull one side of the Spin Scrub brushbar cover at a time to unclip.

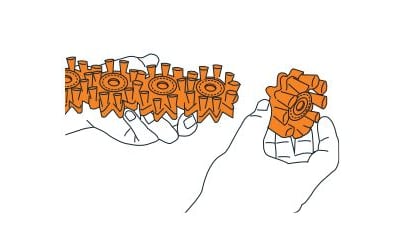

Separate brushes

Separate the individual brushes, clean and rinse under running water (Max 40°C) to remove any dirt and debris.

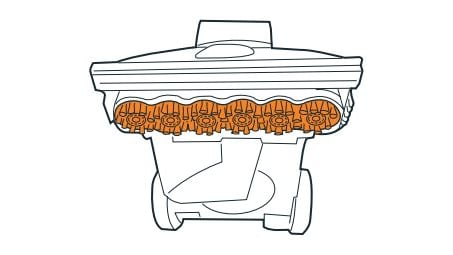

Refit brushes

Refit the individual brushes. Line up the tabs on Spin Scrub cover with the tabs on brush frame. Push and clip covers until they click into place and leave to fully air dry.

Refit brushbar

Line up the tabs on the top of SpinScrub cover with the holes on the machine and push firmly until clicks into place.

Troubleshooting

Here is what you can do to keep your appliance performing at its best.
