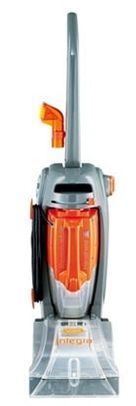

V-126

How to videos and documents

Useful video and PDF guides, showing you how to use, maintain and fix your Vax product.

Maintenance

Here is what you can do to keep your appliance performing at its best.

Resetting the brushbar
Remove dirt bin

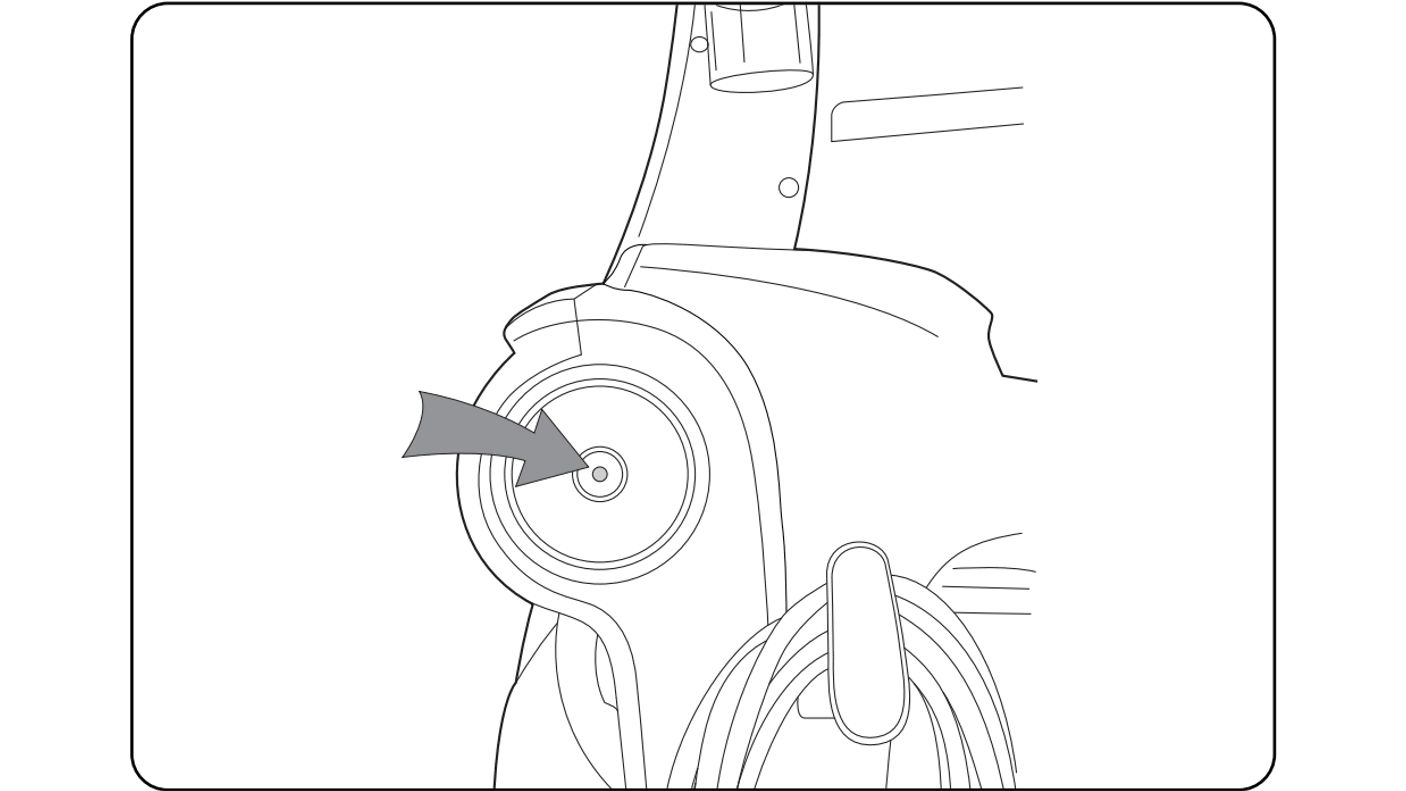

This machine is equipped with a safety reset button. If the brushbar stops turning, press the reset button on the side of the machine to restart.

Accessing the brushbar and belt
Remove dirt bin

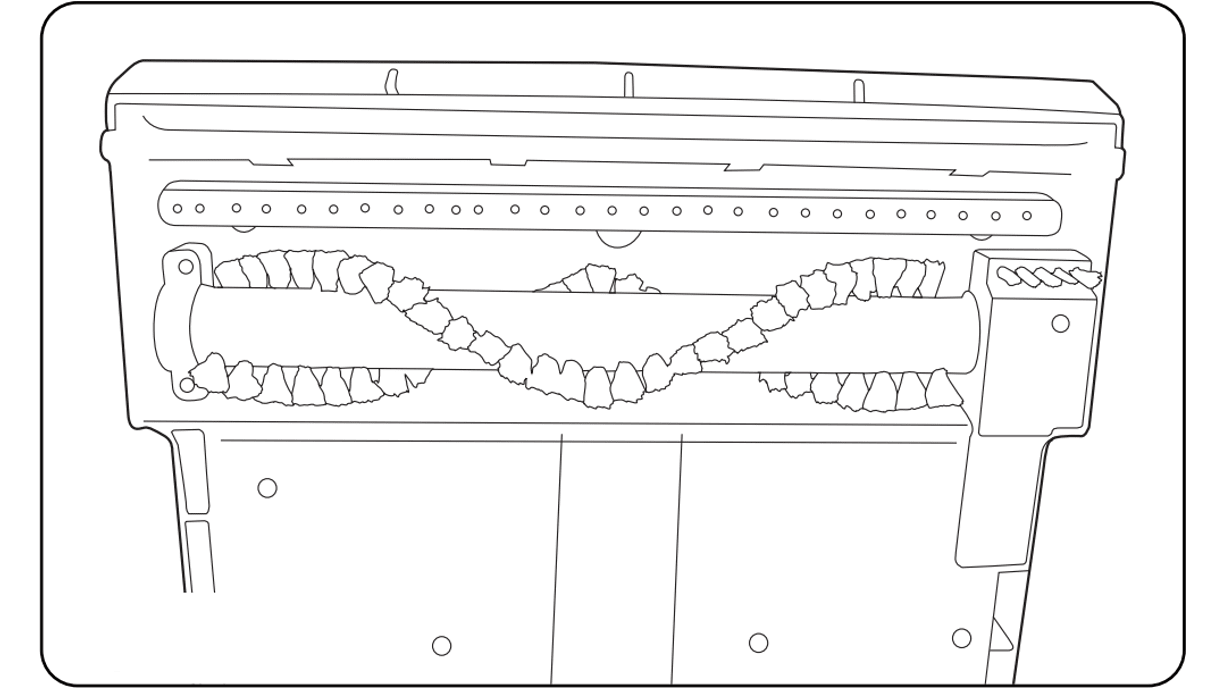

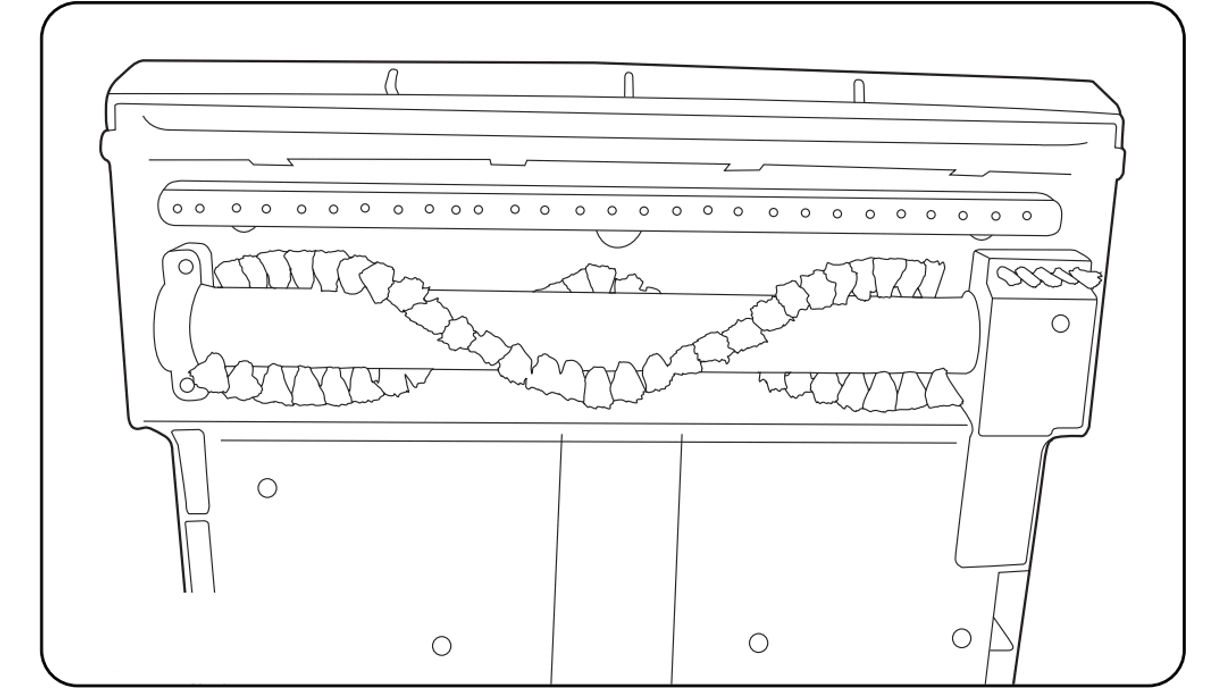

Remove the tanks and lie the machine back.

Lift lid

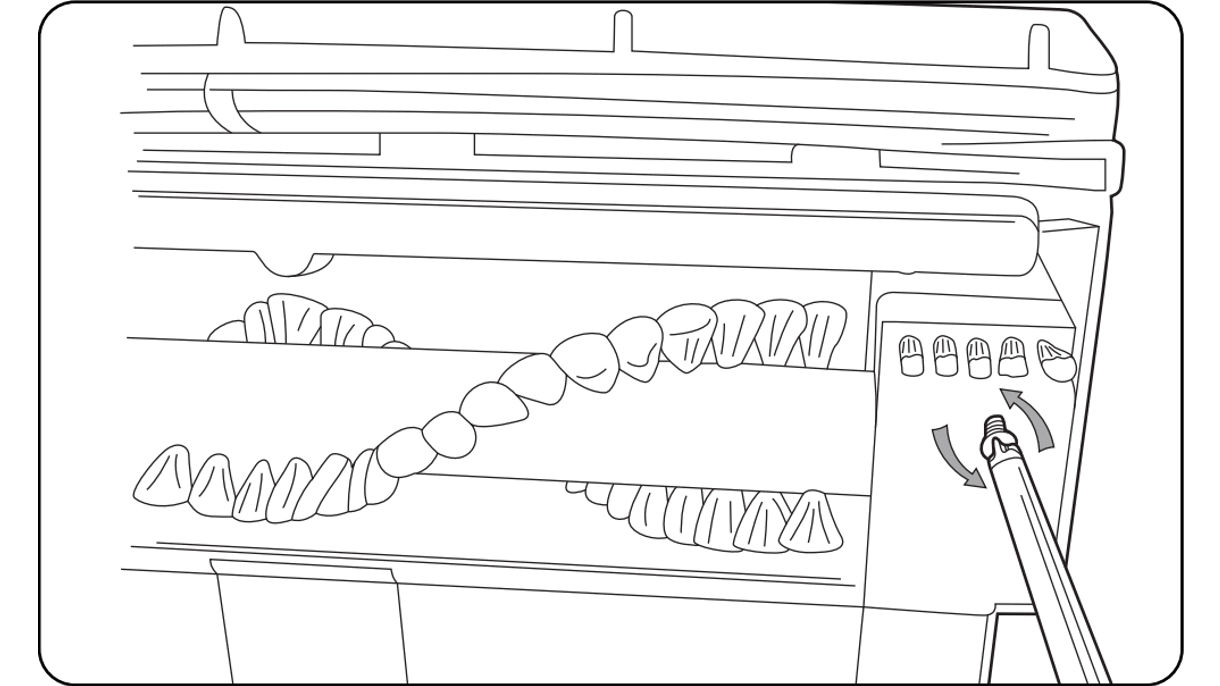

Remove the belt cover screw.

Lift separator

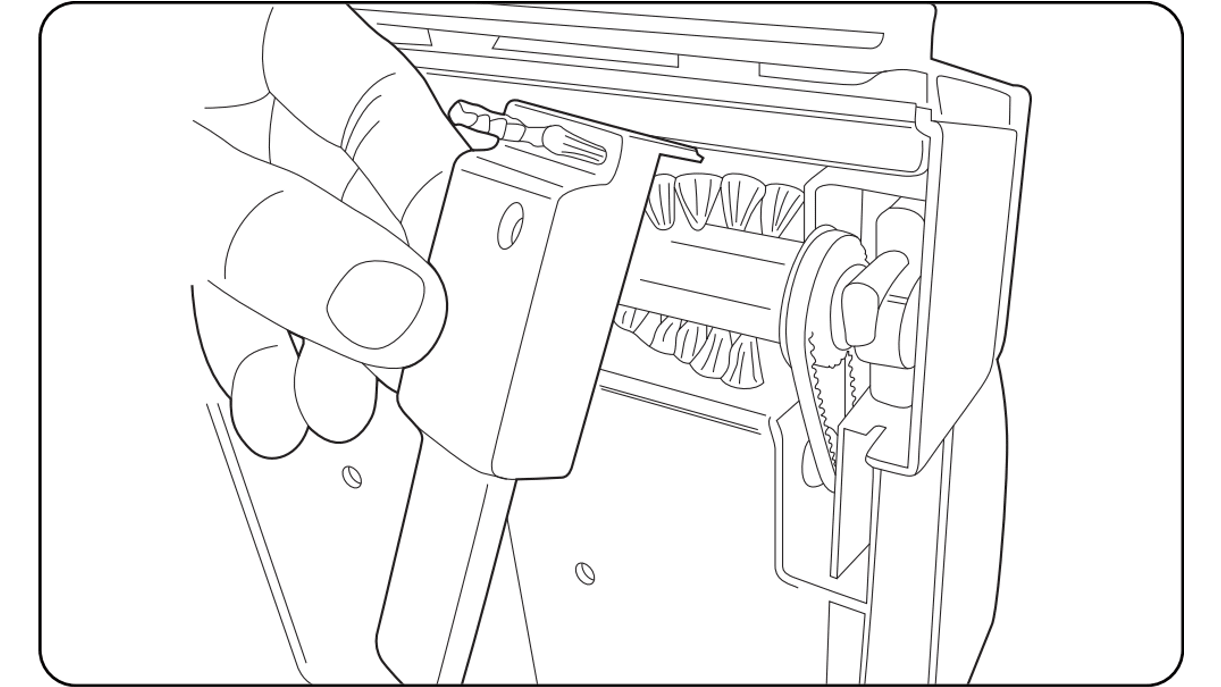

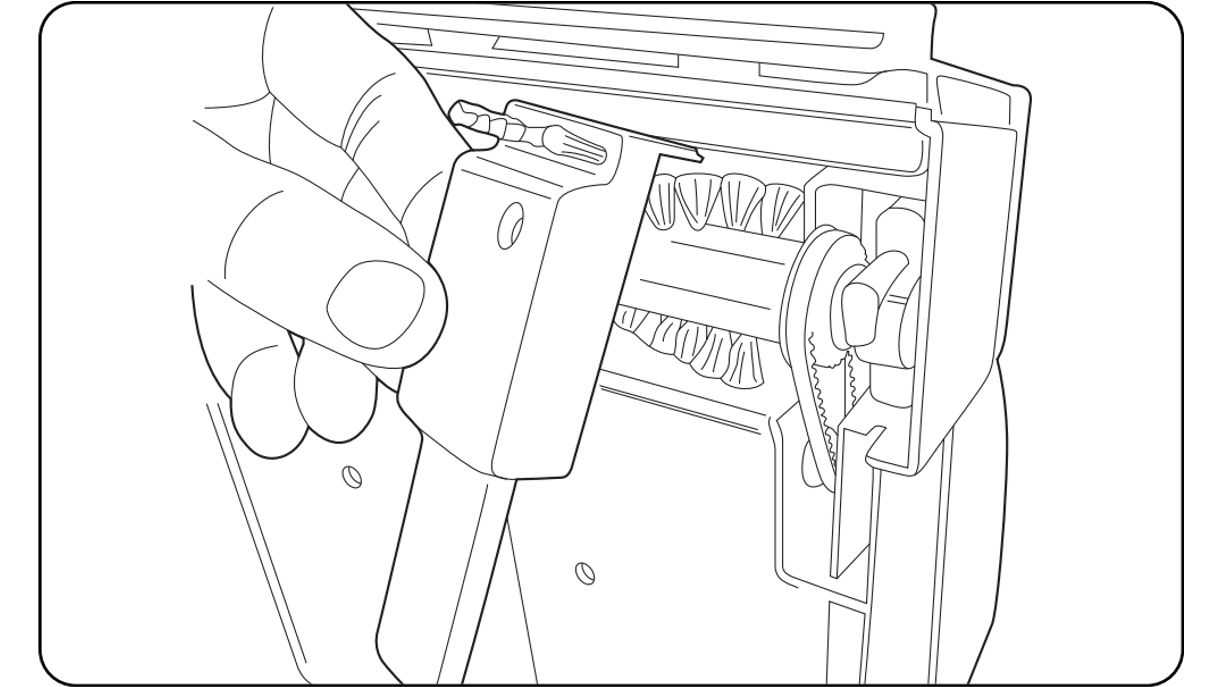

Remove the belt cover. The belt can be taken off the spindle. To remove the brushbar, the screws at either end must be undone first.

Cleaning the filter
Remove dirt bin

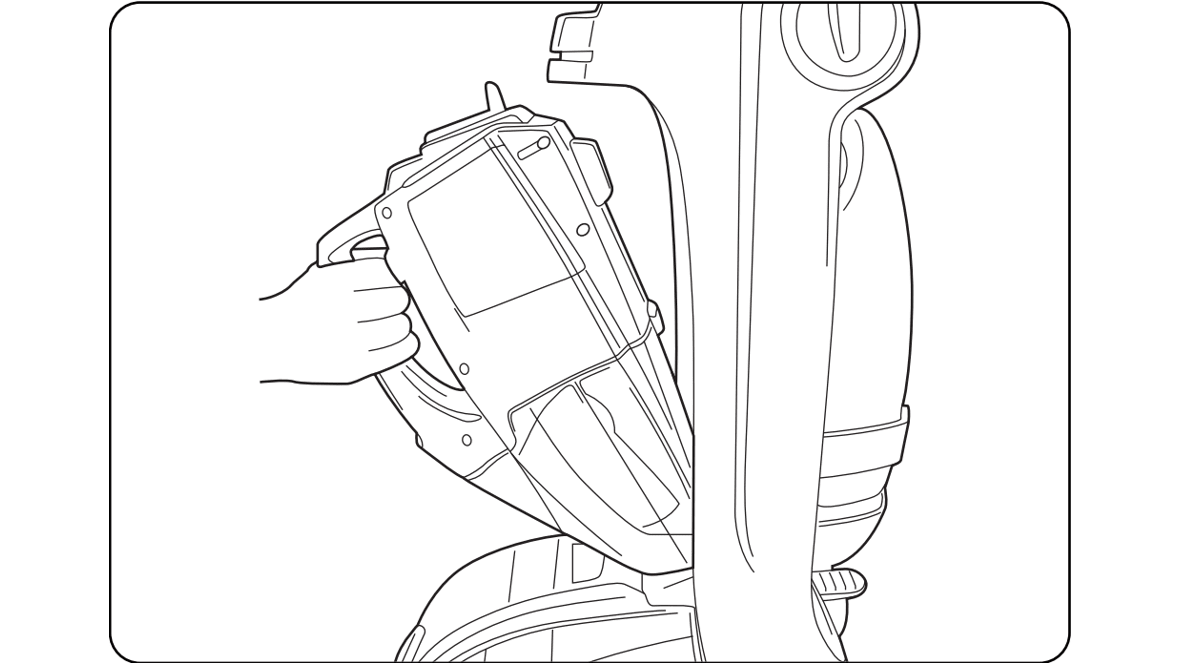

Move the handle slide release to the left and remove the handheld from the upright machine.

Lift lid

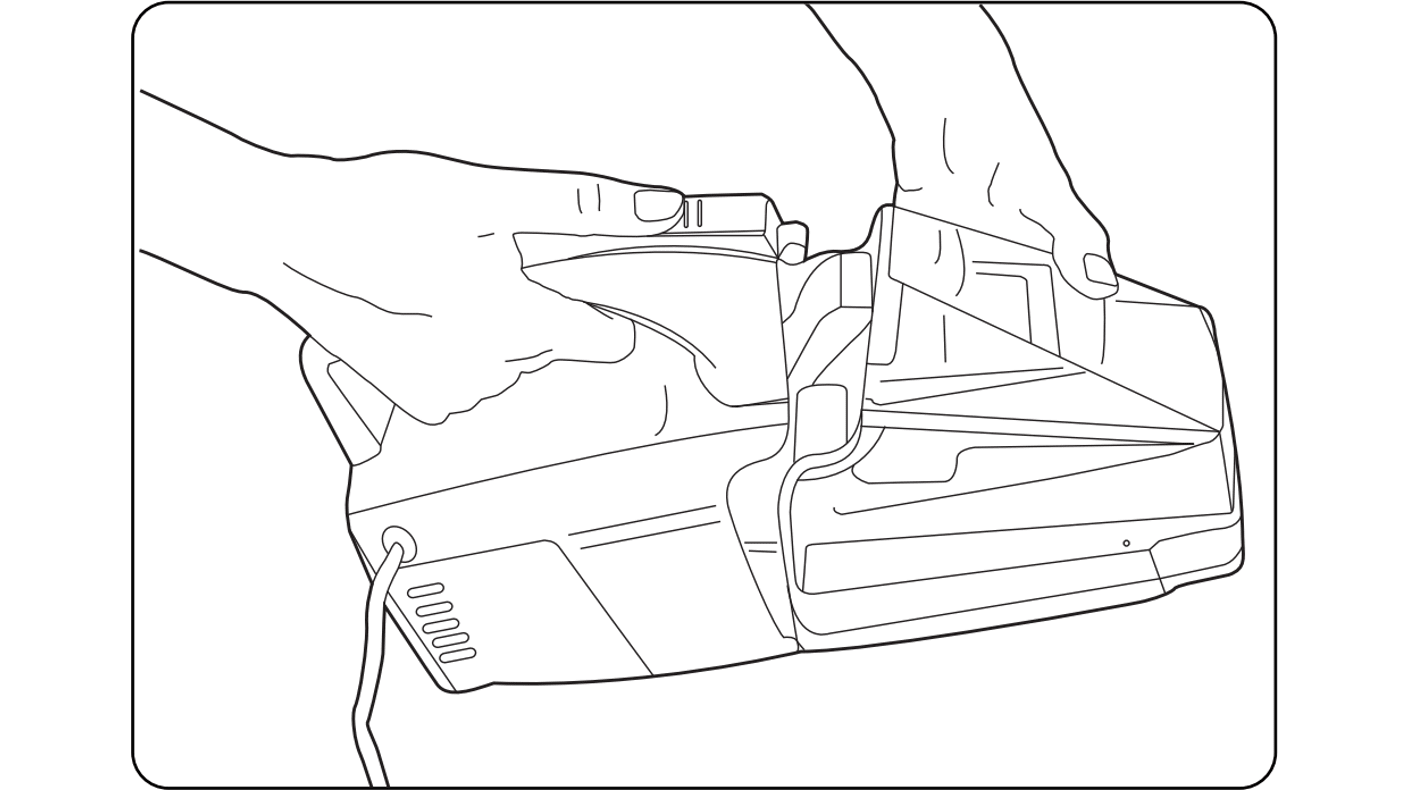

Press the handheld dirty water tank release button and remove the tank.

Lift separator

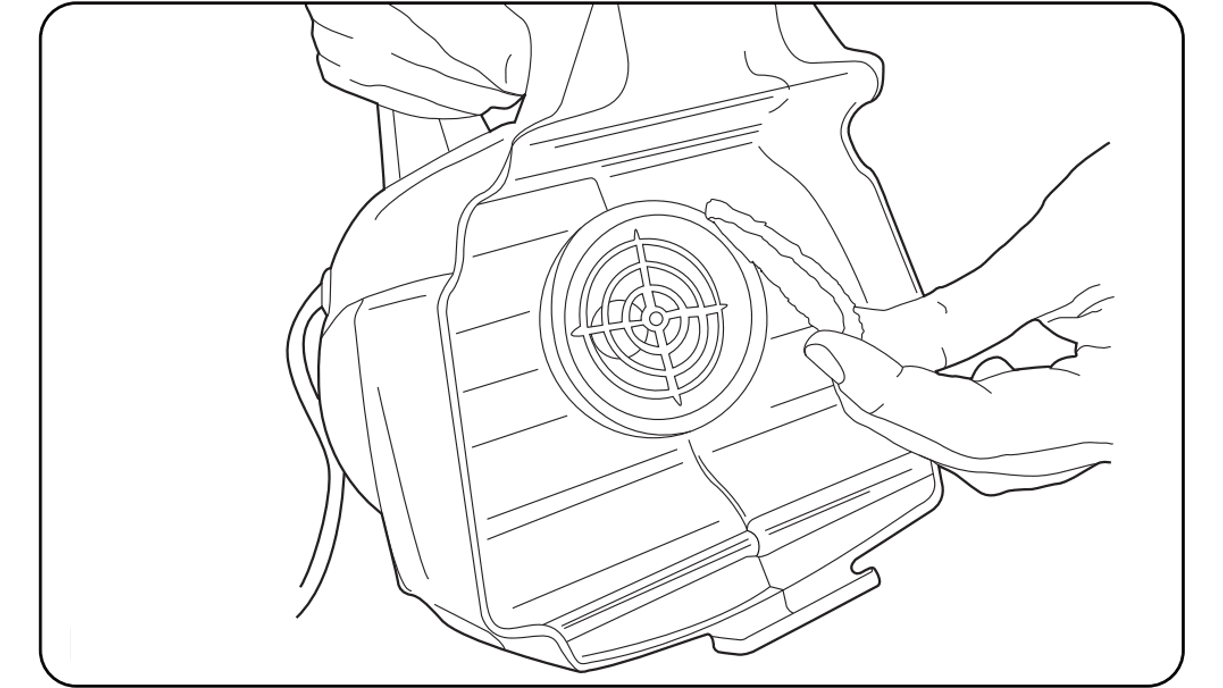

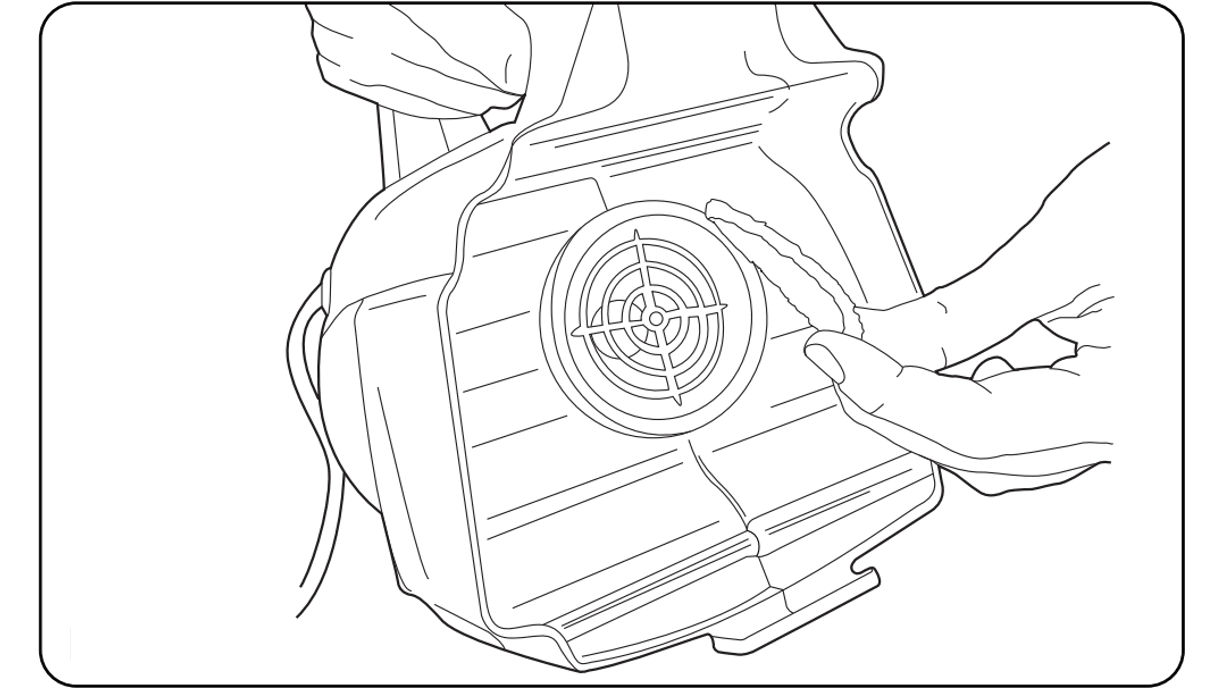

Remove the filter and wash under a tap (max 40°C). Allow to air dry thoroughly before replacing in the machine.

Troubleshooting

Here is what you can do to keep your appliance performing at its best.
