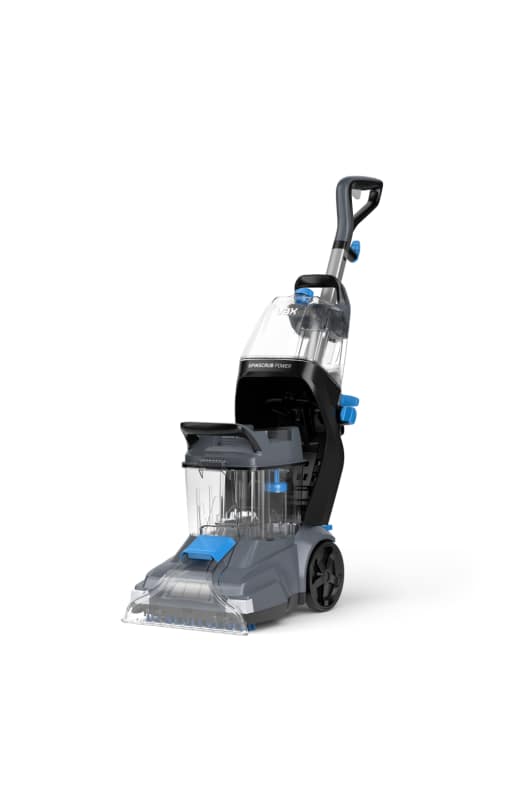

CDCW-SSXA VAX SpinScrub Power Plus Carpet Cleaner

CDCW-SSXS VAX SpinScrub Power Carpet Cleaner

Maintenance

Here is what you can do to keep your appliance performing at its best.

How do I clean the dirty water tank?

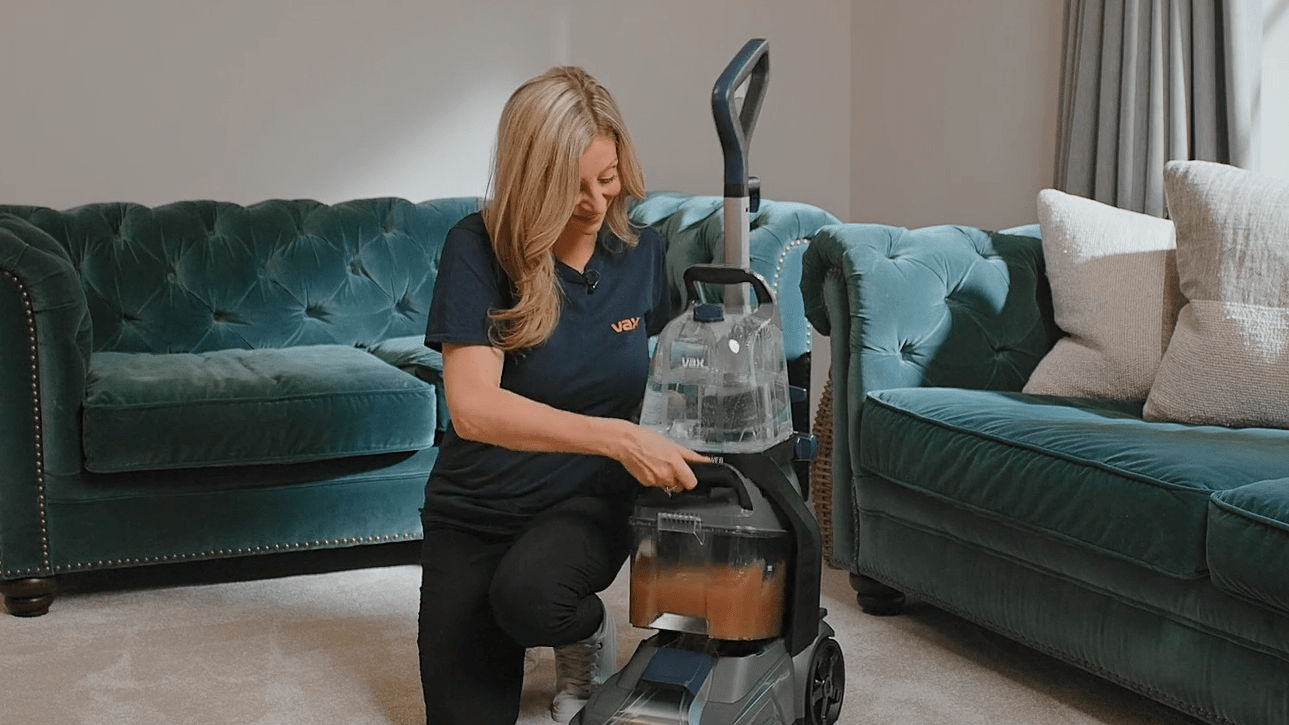

To empty, unplug the machine from the mains, hold the handle and firmly pull to remove the dirty water tank.

Remove the lid by releasing the latch on the back and unhooking the clip.

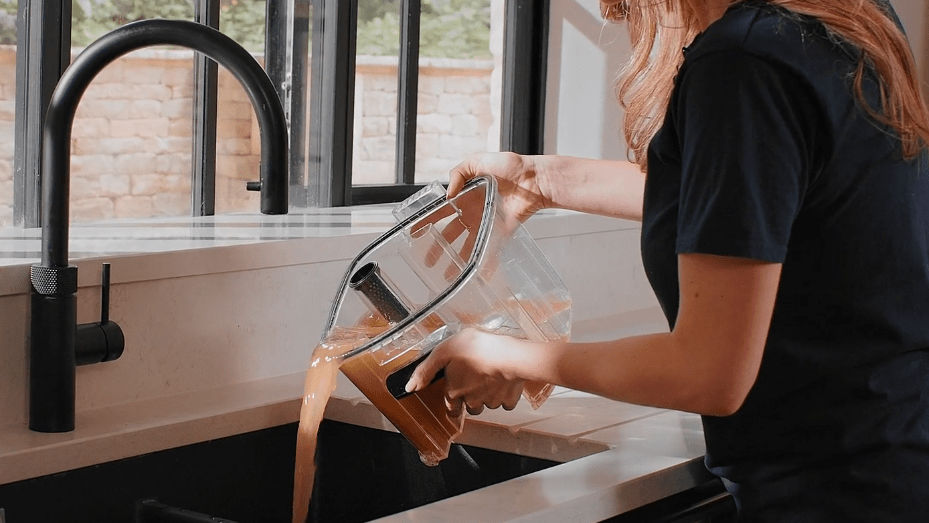

Empty the tank over a sink or toilet and remove the filter.

Rinse the filter under warm water.

Rinse the tank under warm water (40°C max) to remove any dirt or debris.

Replace the filter in to the dirty water tank.

To replace the lid, fit the tab on the front of the lid into the front of the dirty water tank.

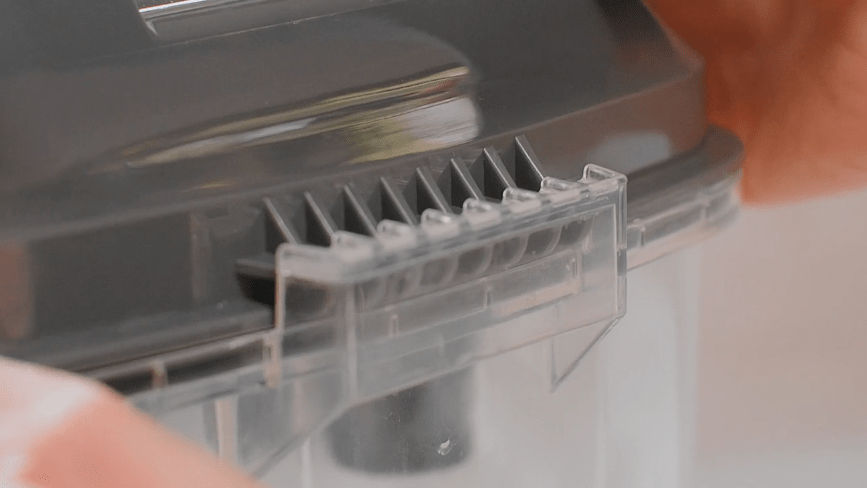

Hook the bottom latch on to the tank and push the top of the latch up and inwards until it clicks into place.

Push the dirty water tank into the machine, it will click into place once fitted.

How do I clean the spinscrub brushbar?

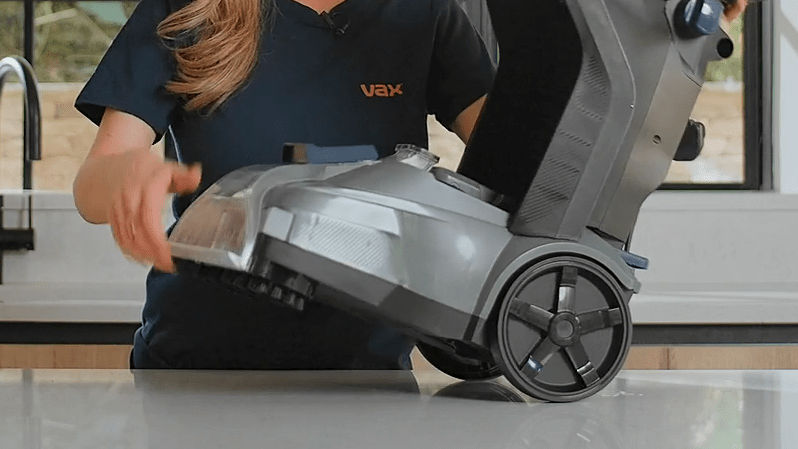

With the machine unplugged from the mains and both tanks removed tilt the machine back.

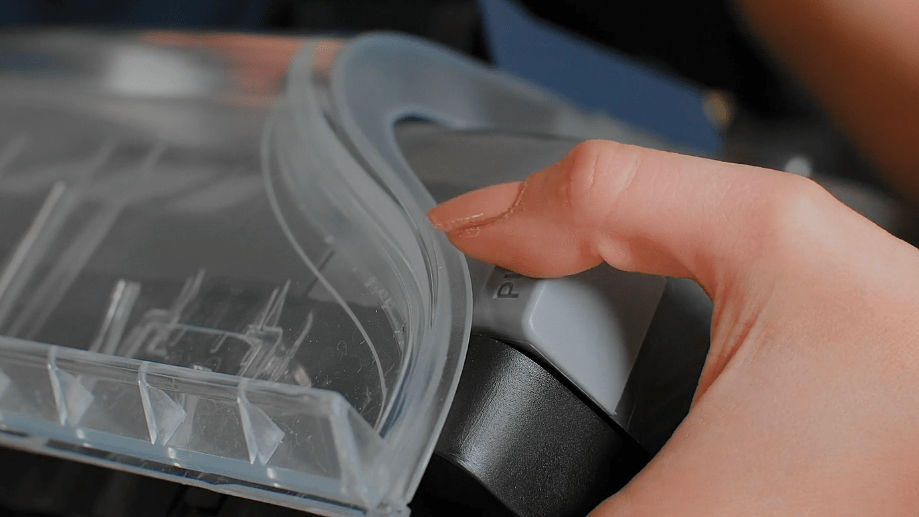

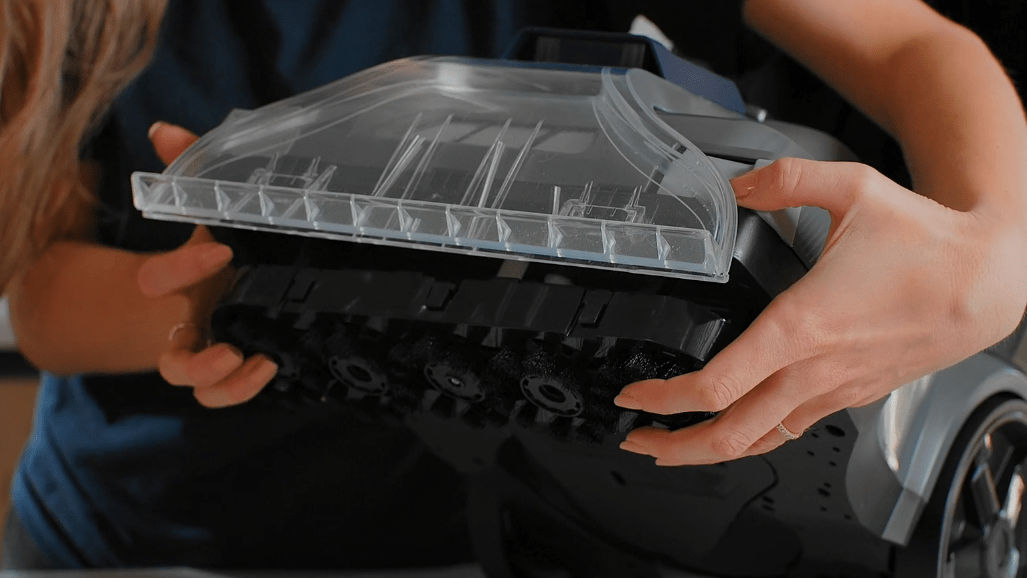

Push the two brushbar release buttons backwards to unlock the brushbar.

Hold the SpinScrub brushes as they release.

Clean any debris/threads or hair and rinse under warm water (40°C Max).

To replace line up the spindle and tabs on the back of the SpinScrub brush with the machine and push firmly until it clicks into place. Stand the machine back up into the upright position.

How do I clean the nozzle?

With the machine unplugged from the mains and both tanks removed tilt the machine back.

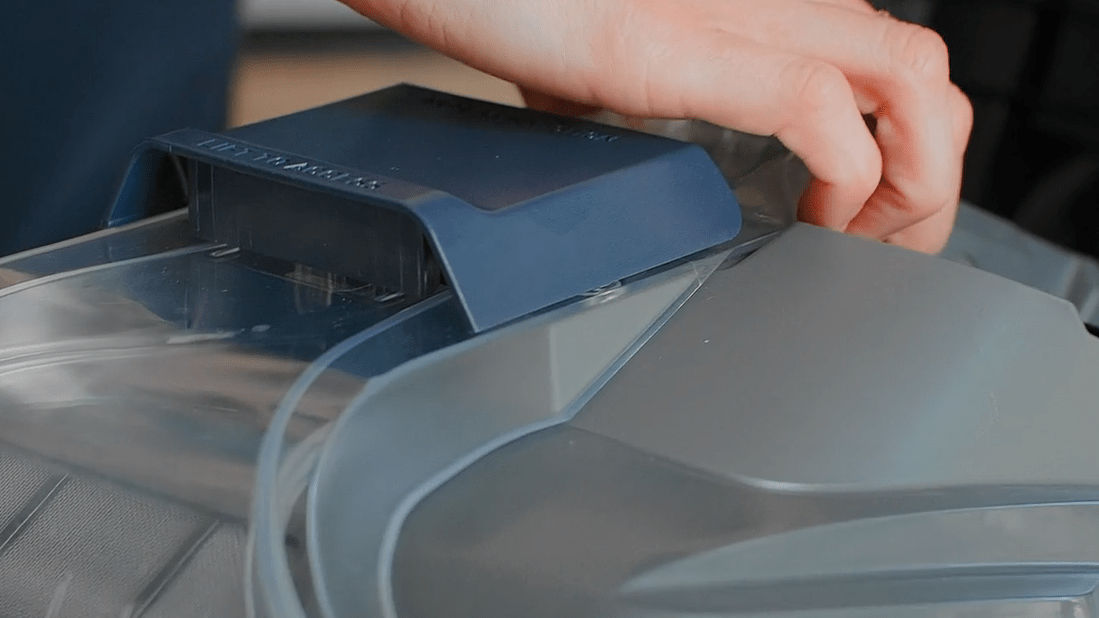

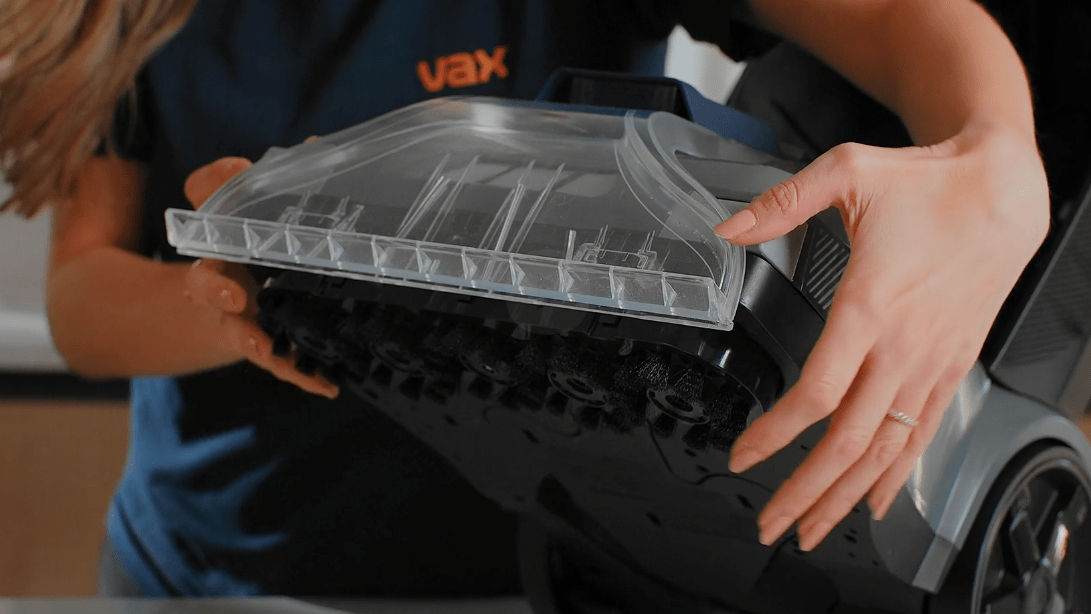

Pull to release the nozzle, then unhook the tabs underneath the machine to remove.

Rinse the nozzle under warm water (40°C Max) to remove any dirt/debris.

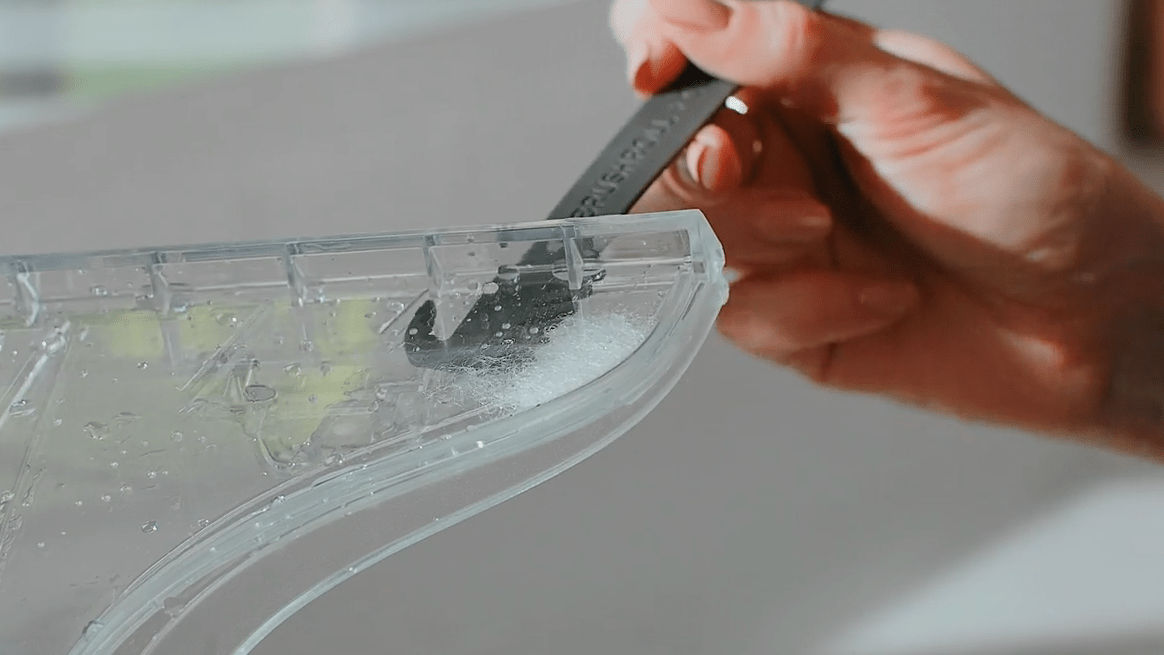

If dirt and debris remains a Nozzle Clean Out Tool is available for purchase and can be found in the Spares & Accessories. Insert the Nozzle Clean Out Tool into the nozzle. Slide to the edges and corners to remove any stubborn dirt and debris.

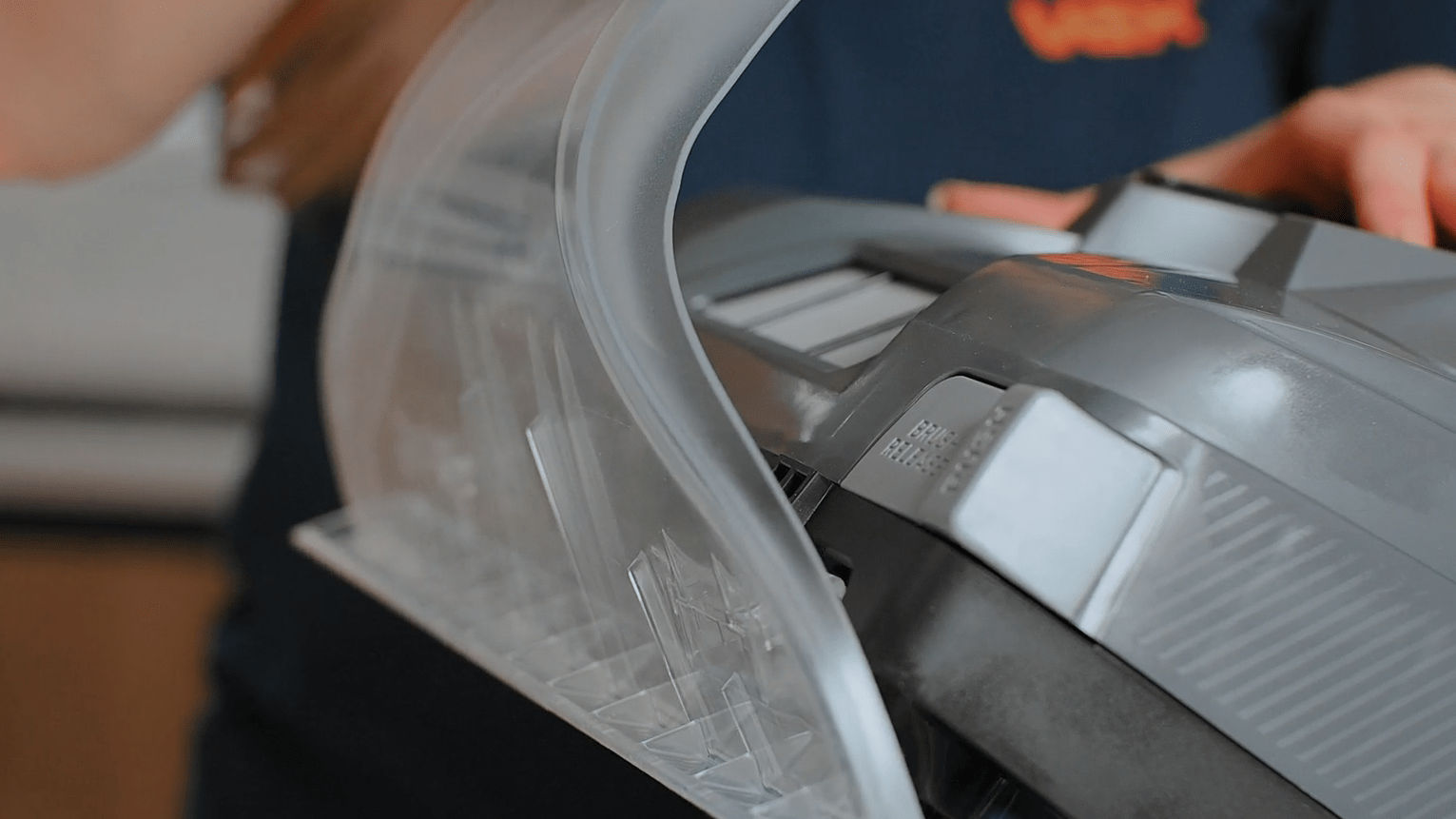

To replace the nozzle, tilt the machine back and hook the tabs on the nozzle under the base of the machine. Lower the nozzle backwards and push until it clicks into place.

How do I remove the handle?

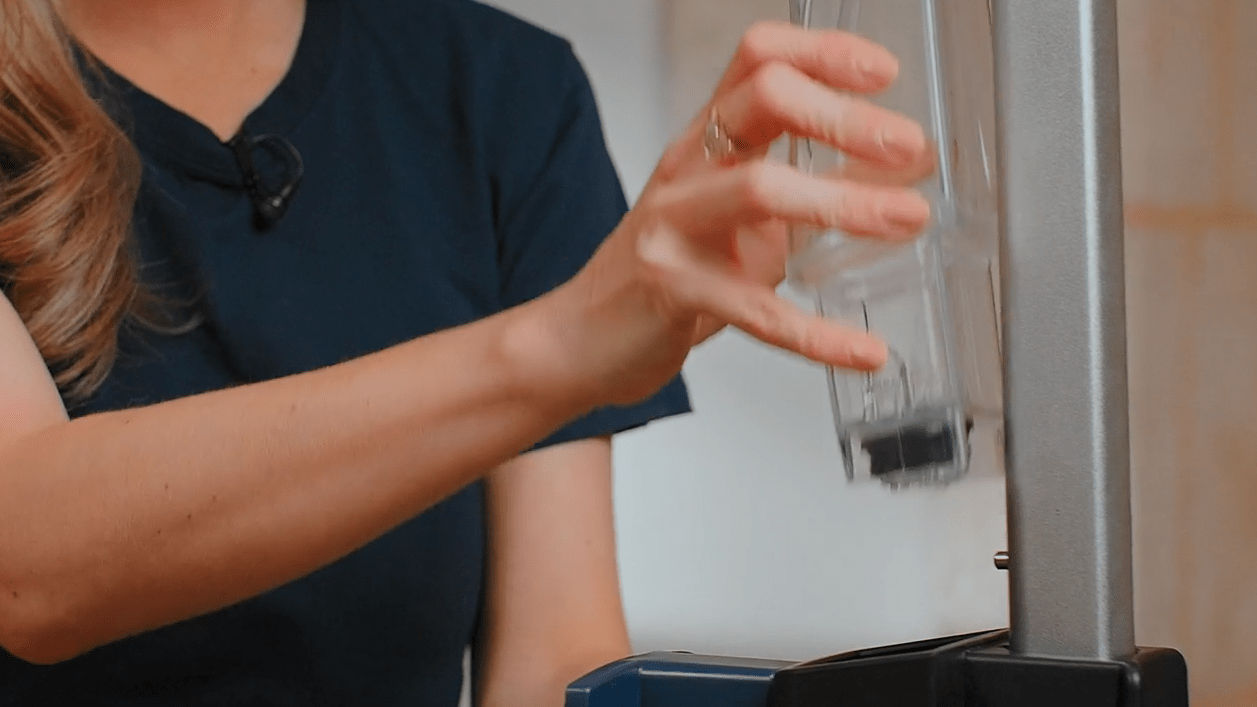

To remove the handle, remove the solution tank to expose the handle release point.

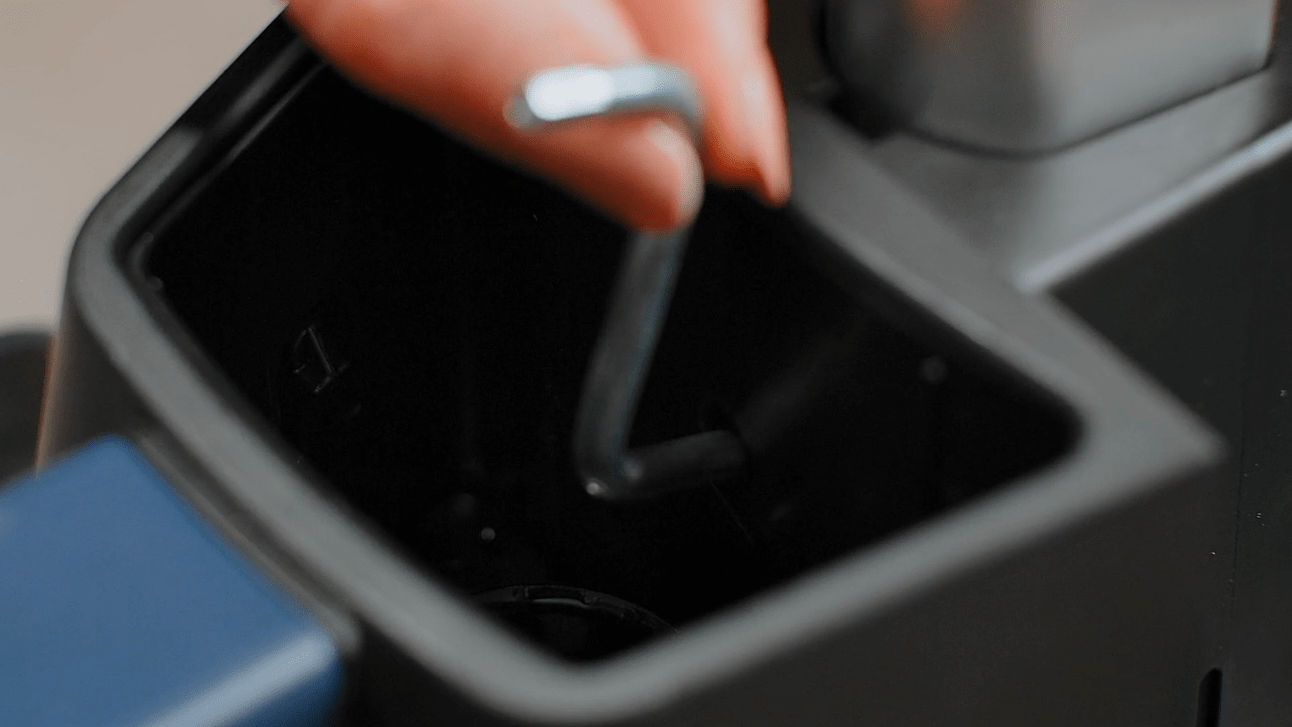

Using a thin blunt instrument like an Allen Key, press the button inwards.

Pull firmly on the handle to remove.
