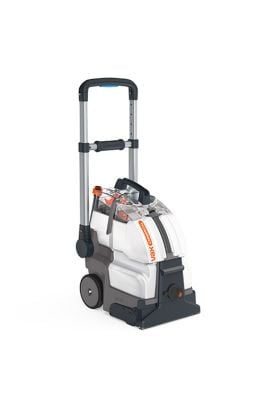

Carpet Cleaner VCW-06 - Carpet Cleaners - Carpet Cleaners

You can register your Vax product on the Vax website registrations page.

Useful video and PDF guides, showing you how to use, maintain and fix your Vax product.

Here is what you can do to keep your appliance performing at its best.

Clearing a blockage from the brushbar

Undo the top nozzle clip.

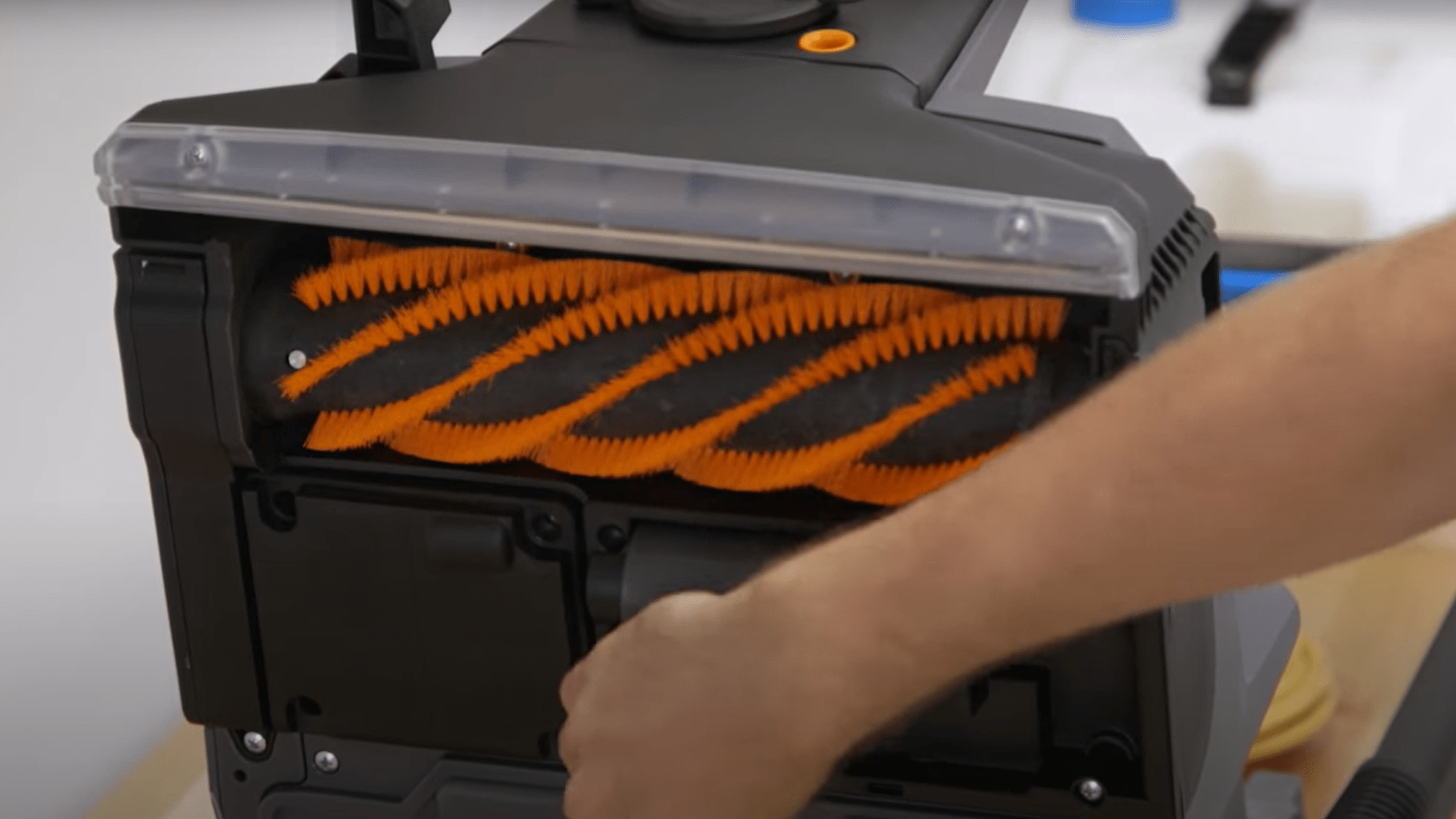

Undo the nozzle clip under the machine.

Pull to remove the nozzle.

Slide the brushbar door to open.

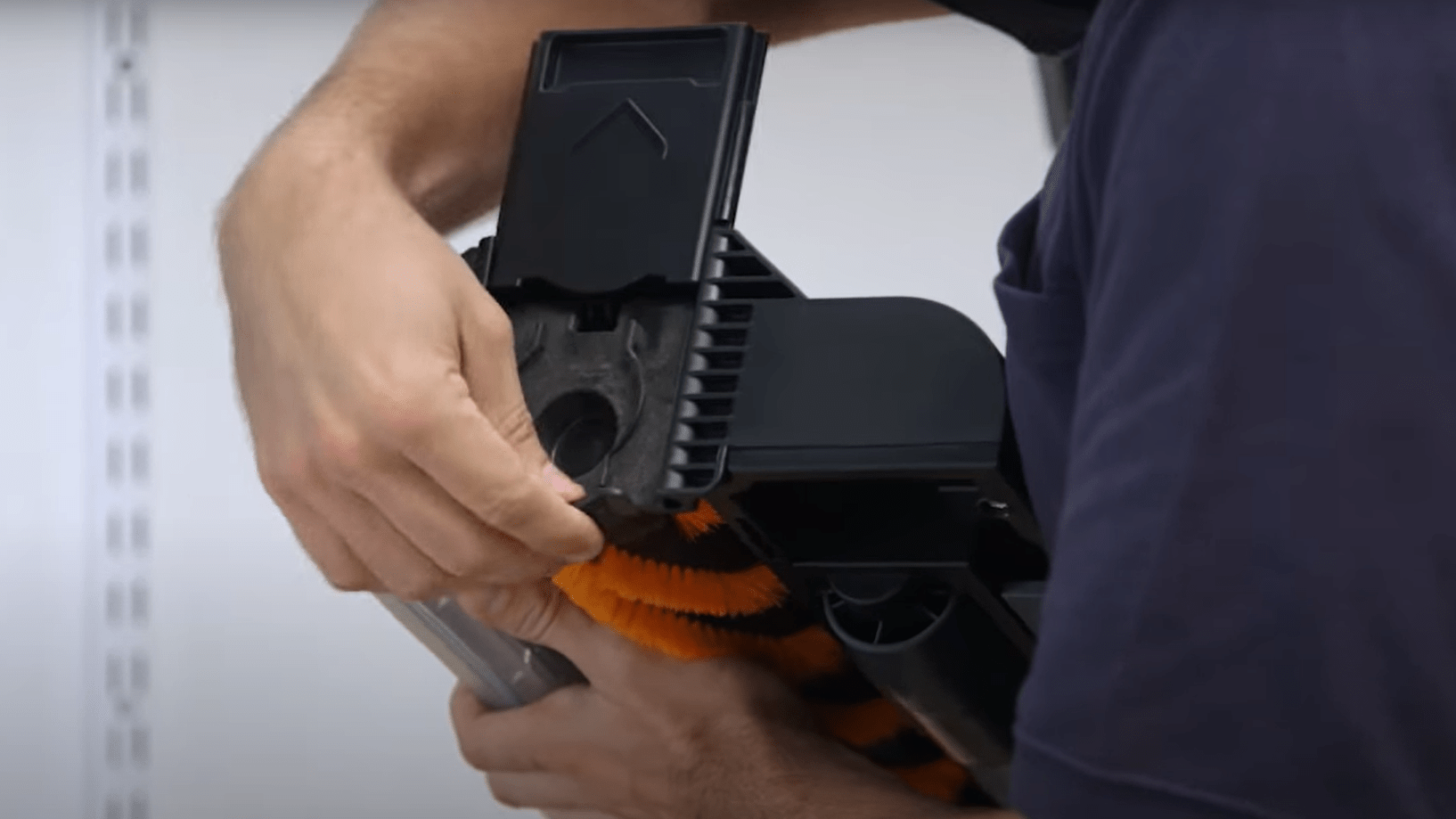

Remove the brushbar end cap.

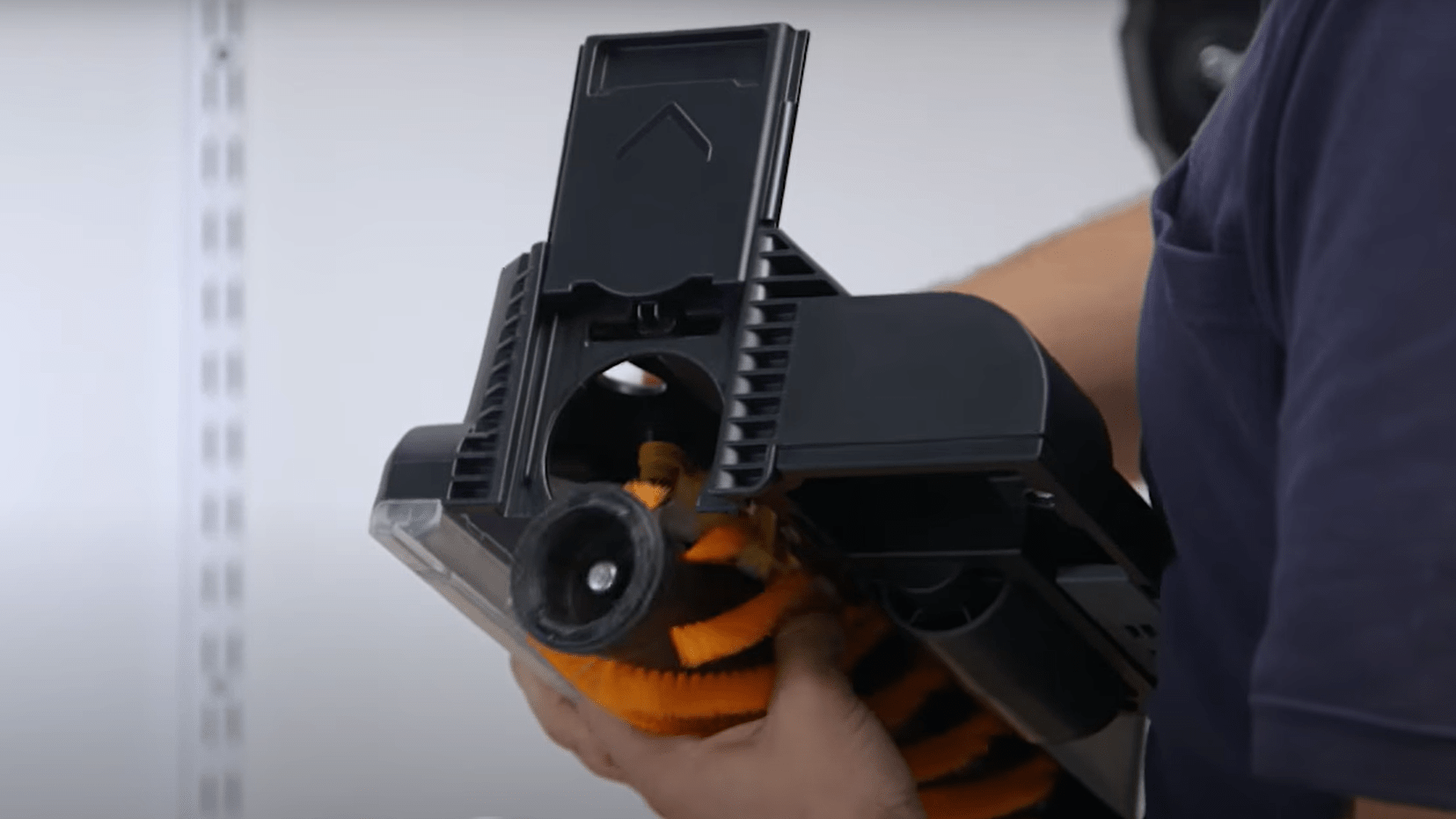

Remove the brushbar.

Cut any hair from around the brushbar.

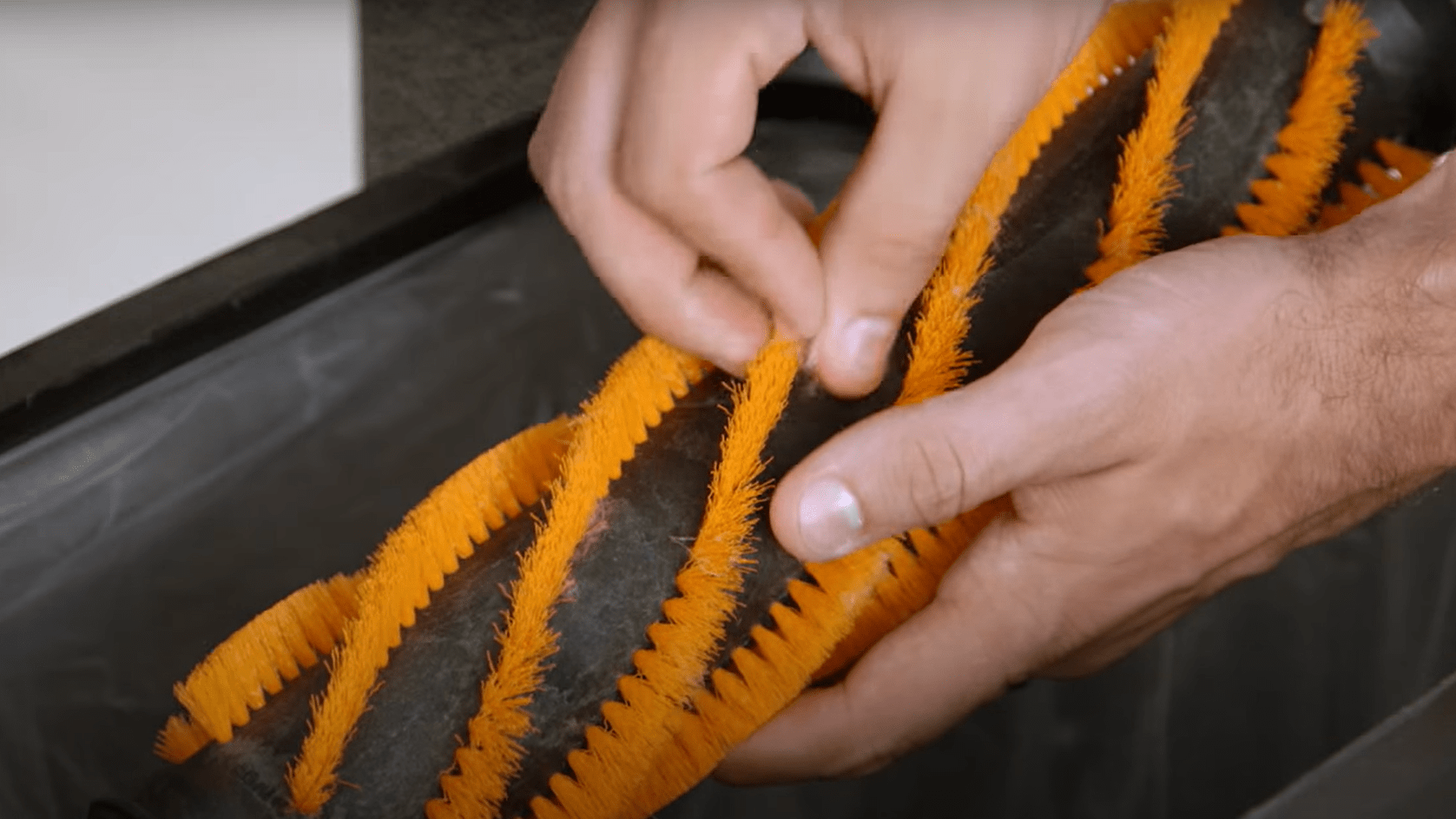

Pull to remove any debris.

Emptying and cleaning the dirty water tank

Remove the dirty water tank.

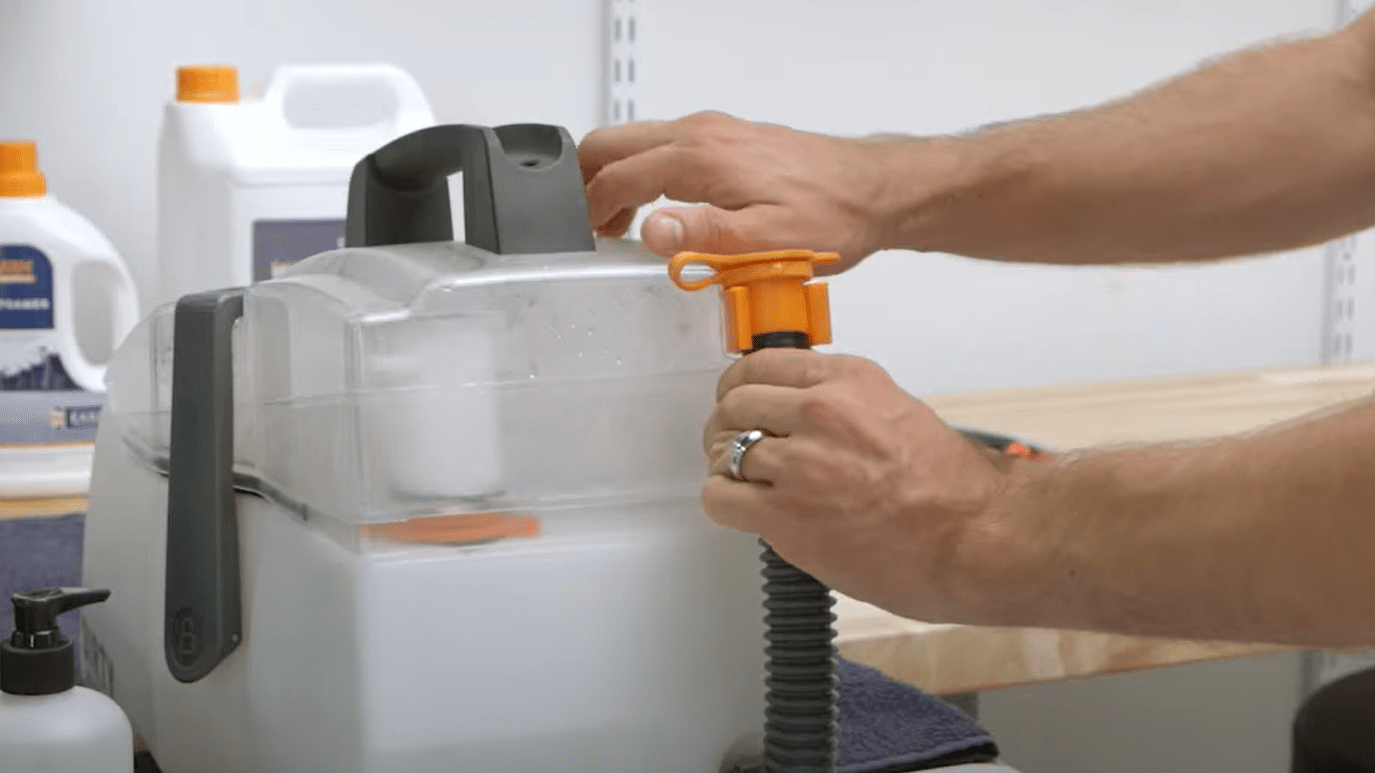

Release the drain hose on the back of the tank.

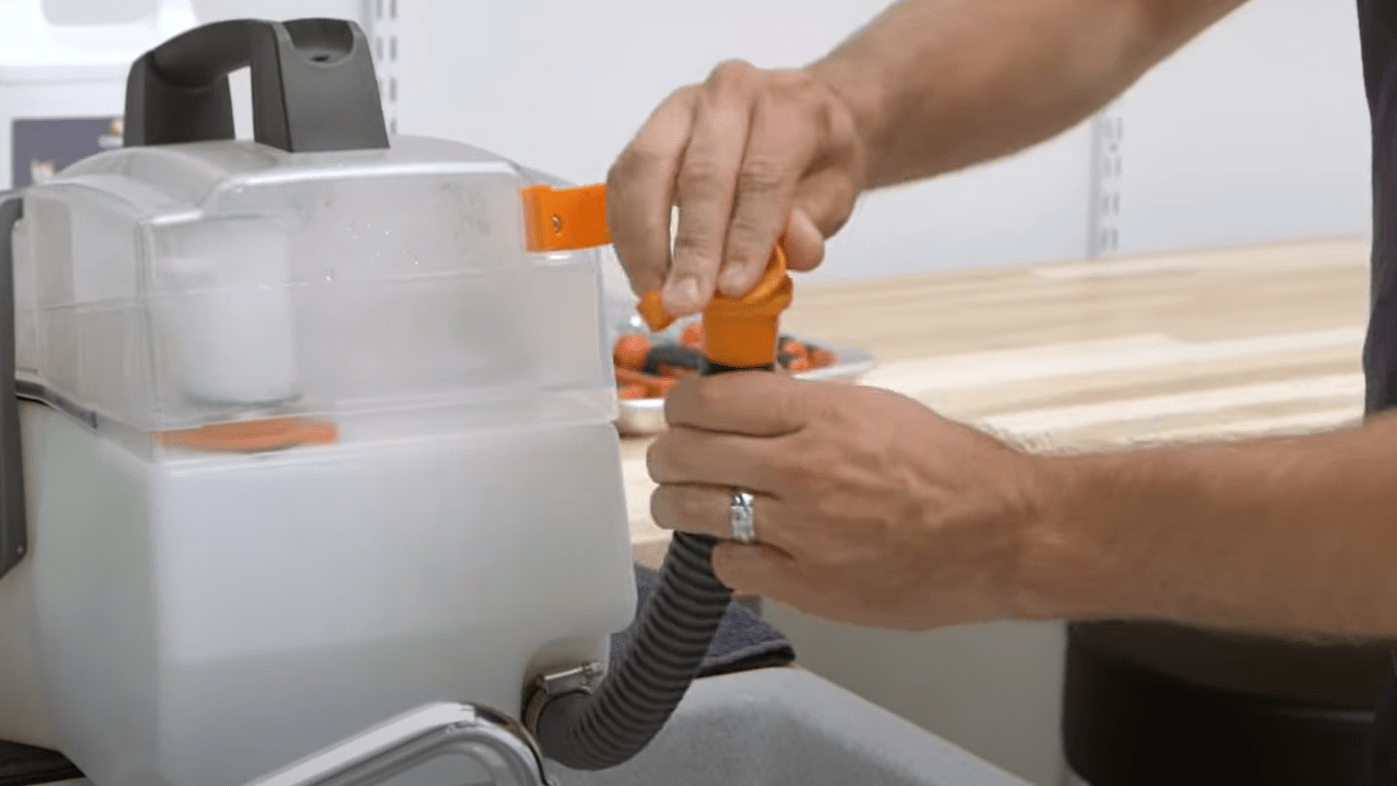

Remove the cap from the end of the drain hose.

Drain the dirty water out of the tank.

Release the dirty water tank clips.

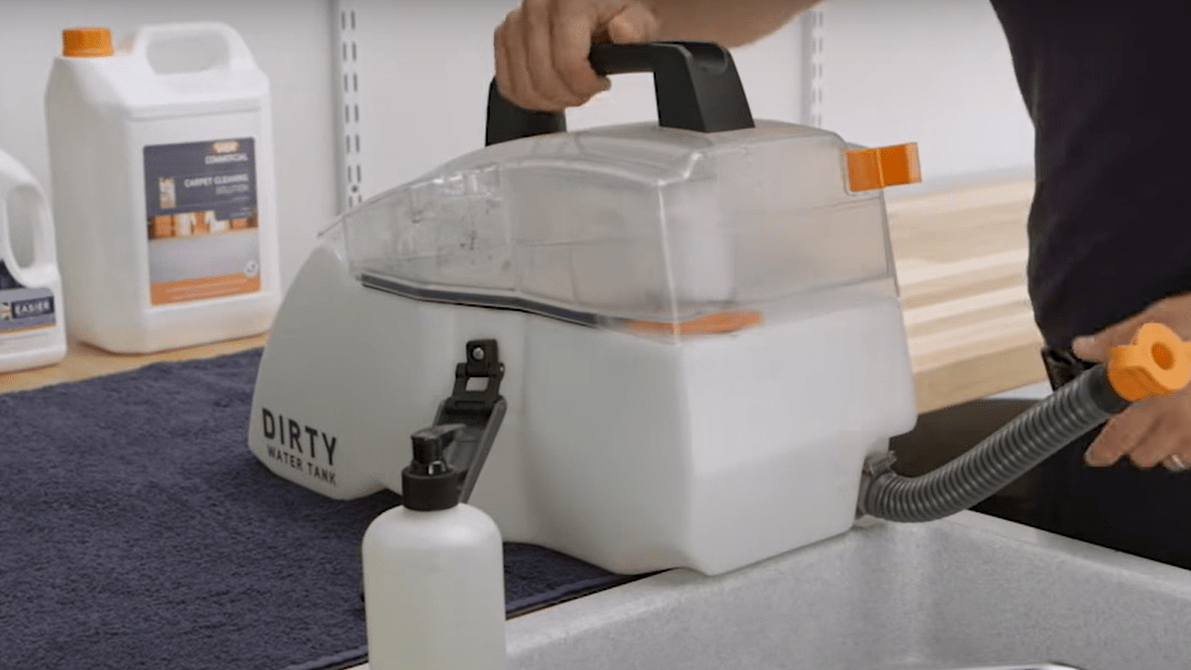

Lift to remove the lid.

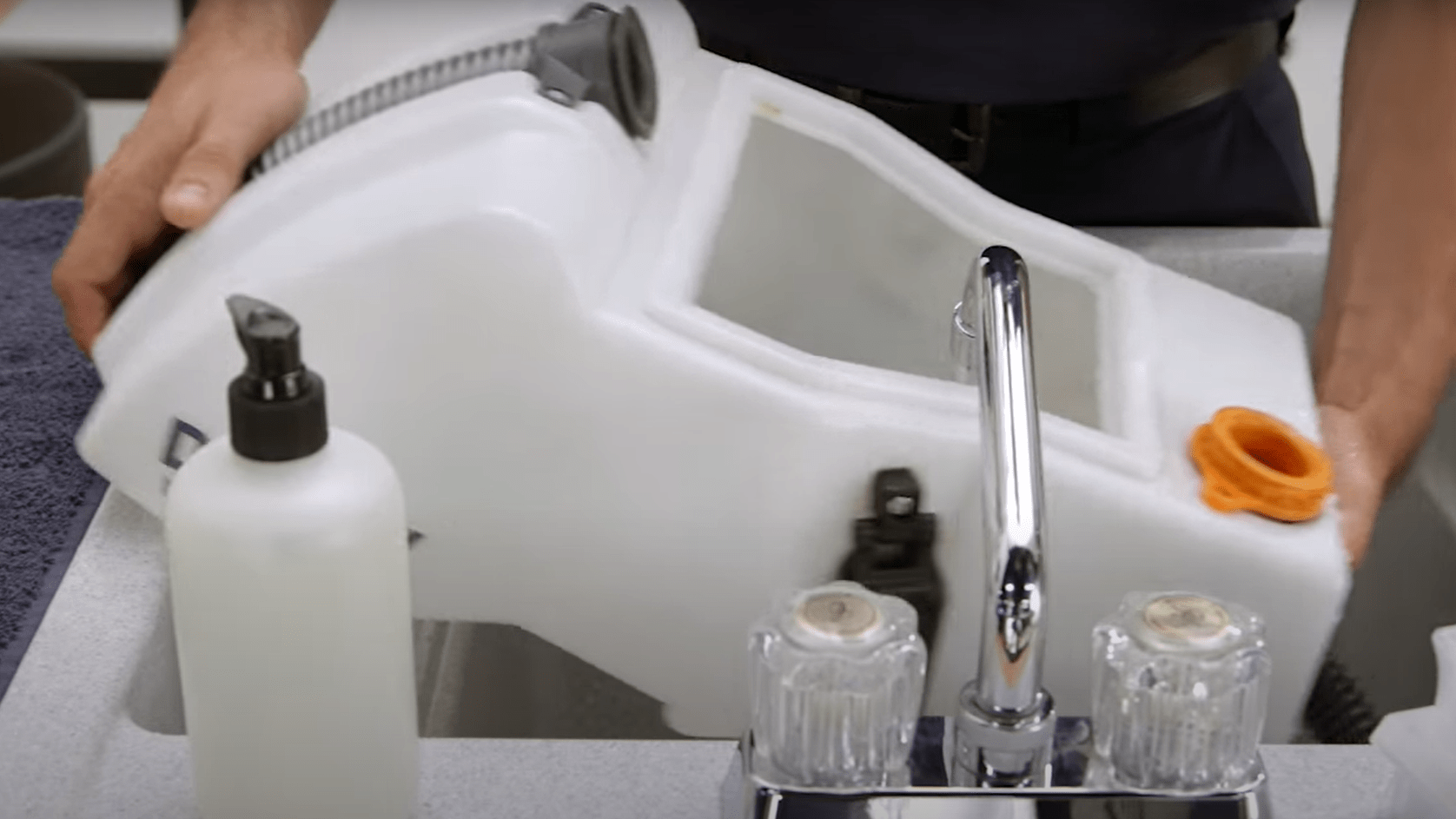

Rinse the tank with warm water.

Accessing the belt

Undo the 4 screws on the belt cover.

Remove the belt cover.

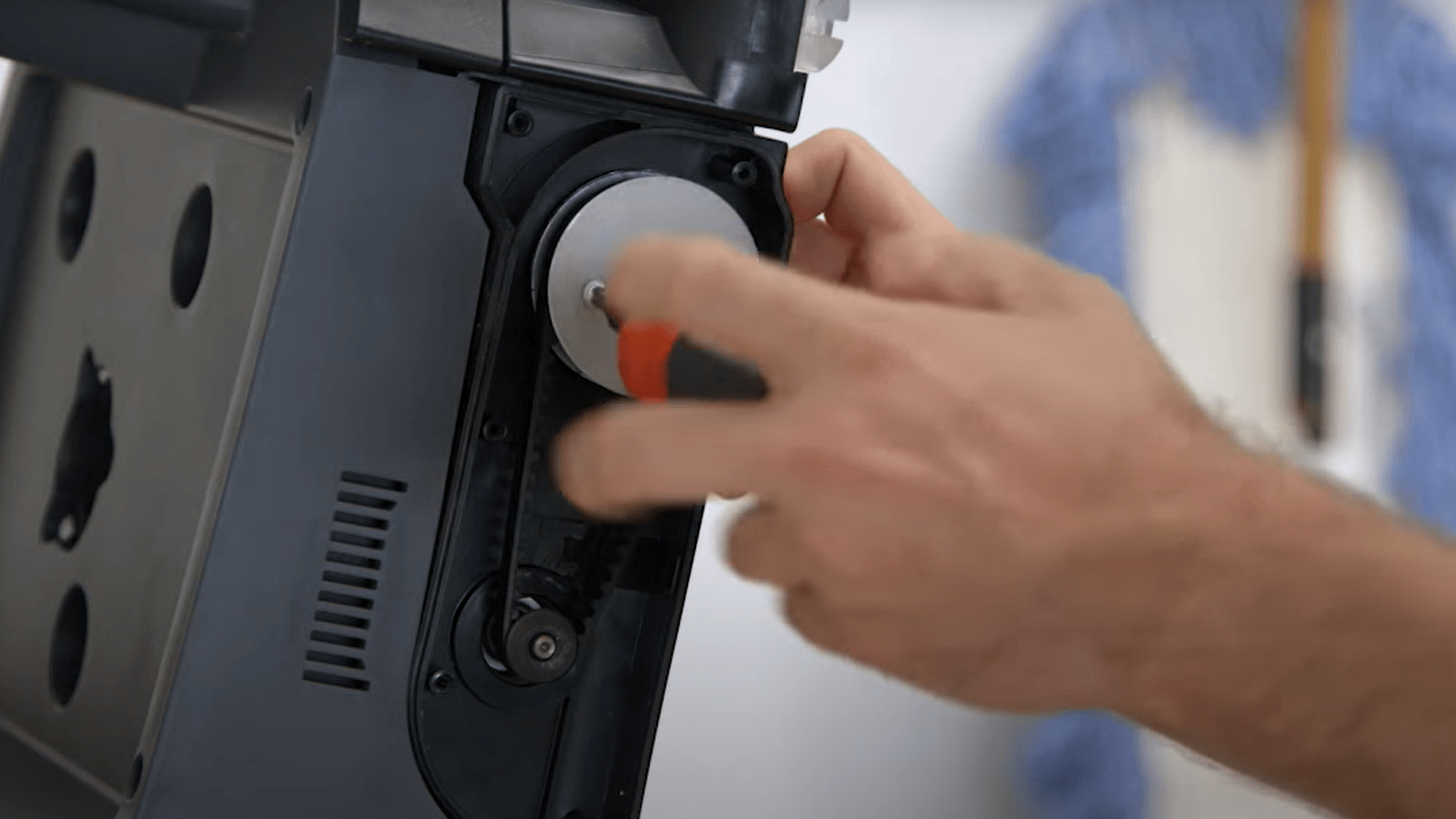

Undo the 2 screws on the belt plate.

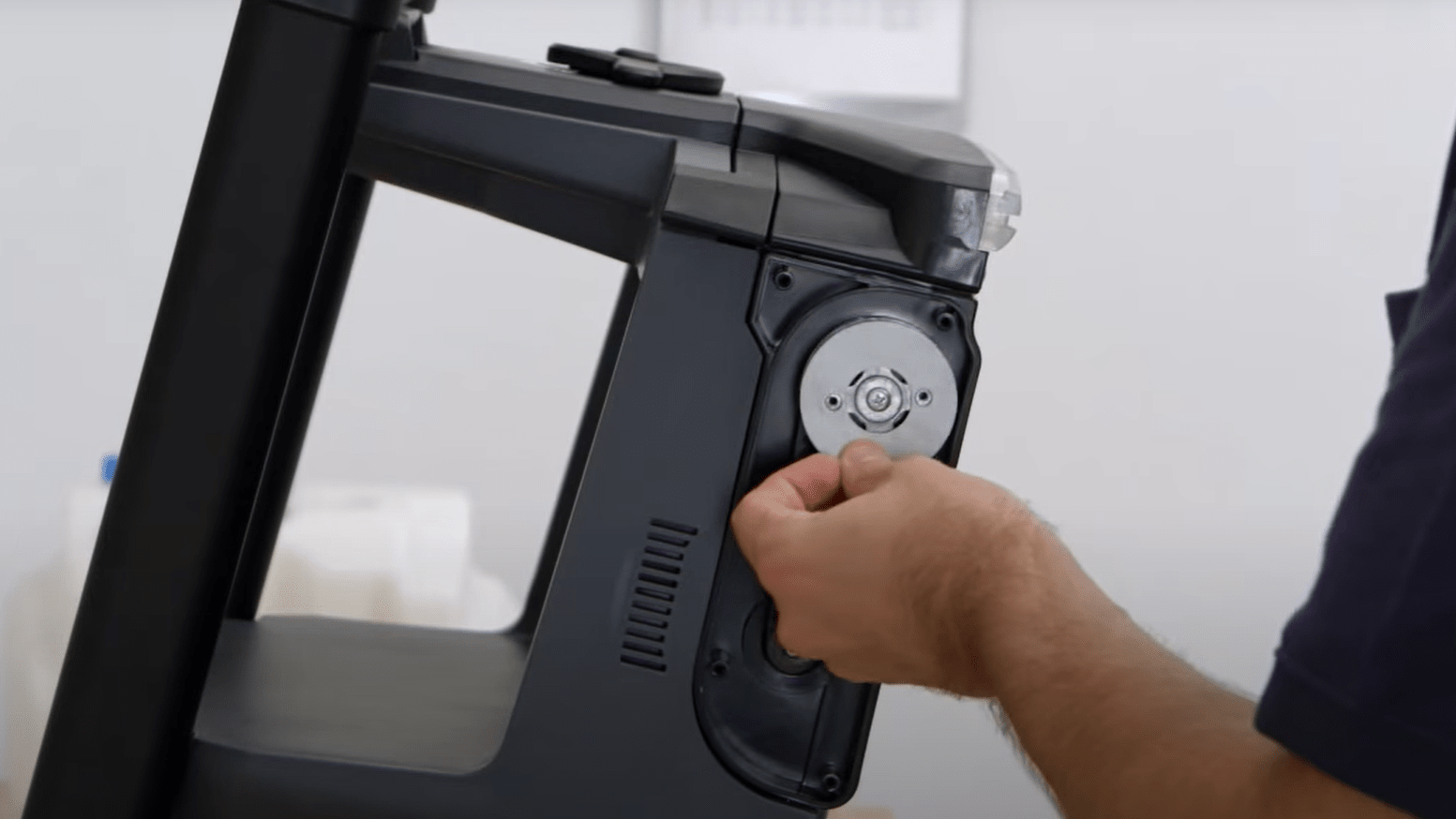

Remove the belt plate.

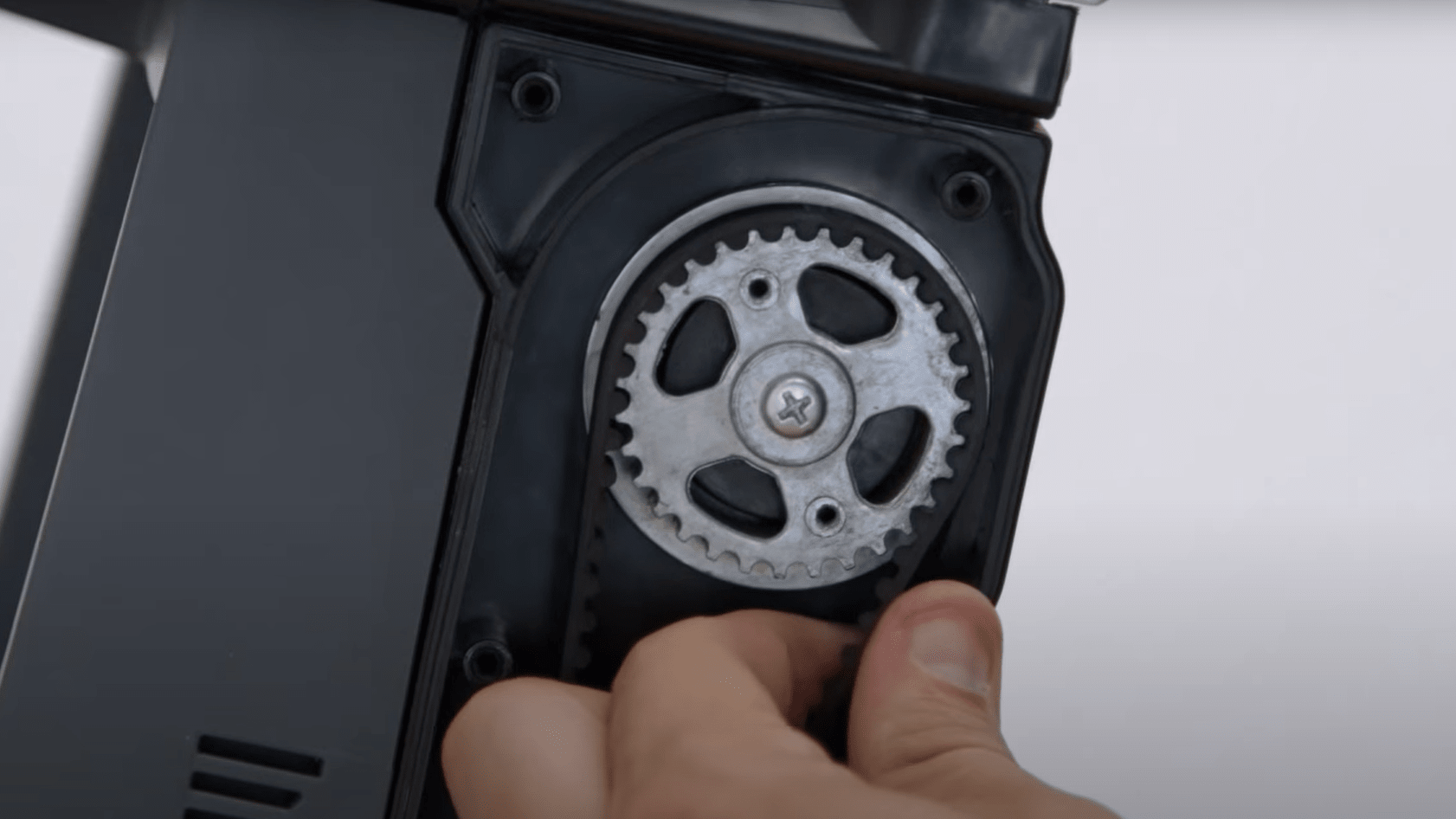

Check the belt for any damage and replace if required.

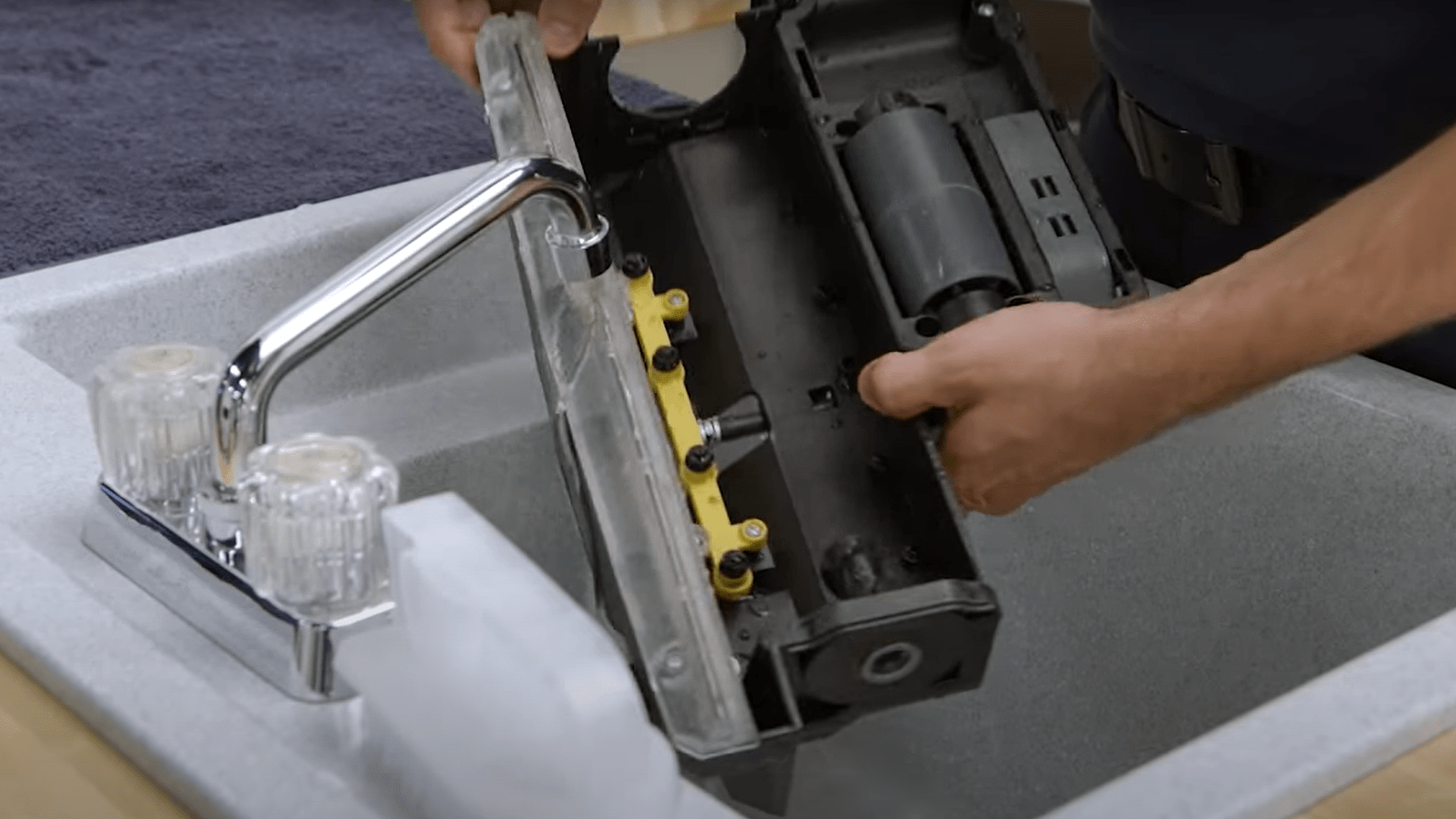

Clearing a blockage in the nozzle
