Maintenance

Here is what you can do to keep your appliance performing at its best.

Clearing a blockage in the hose
Empty tank

Empty the dirty water tank into the sink or toilet.

Press the button on the tool and pull to remove from the end of the hose.

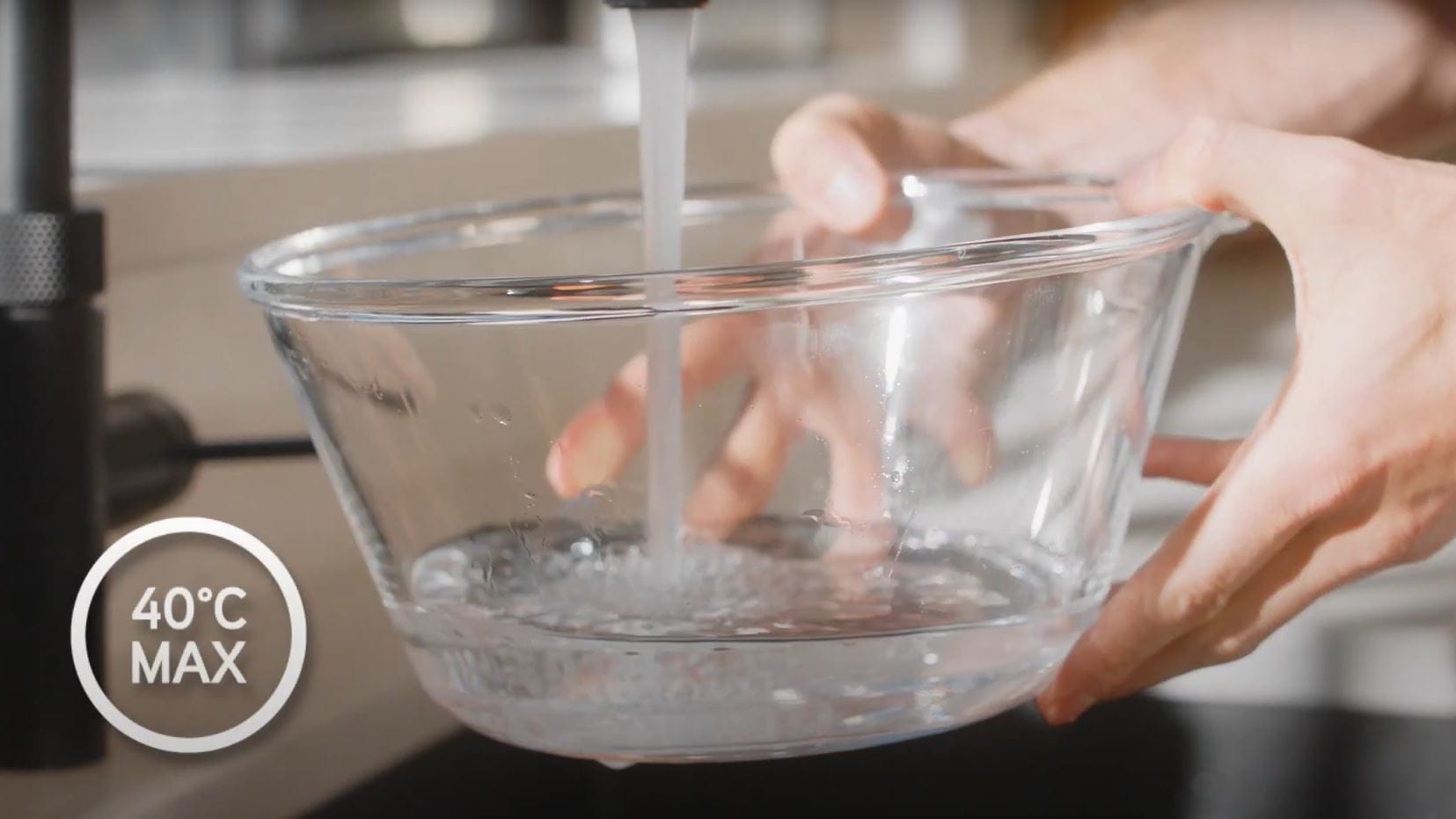

Fill bowl

Fill a bowl with 500ml of warm water (no solution).

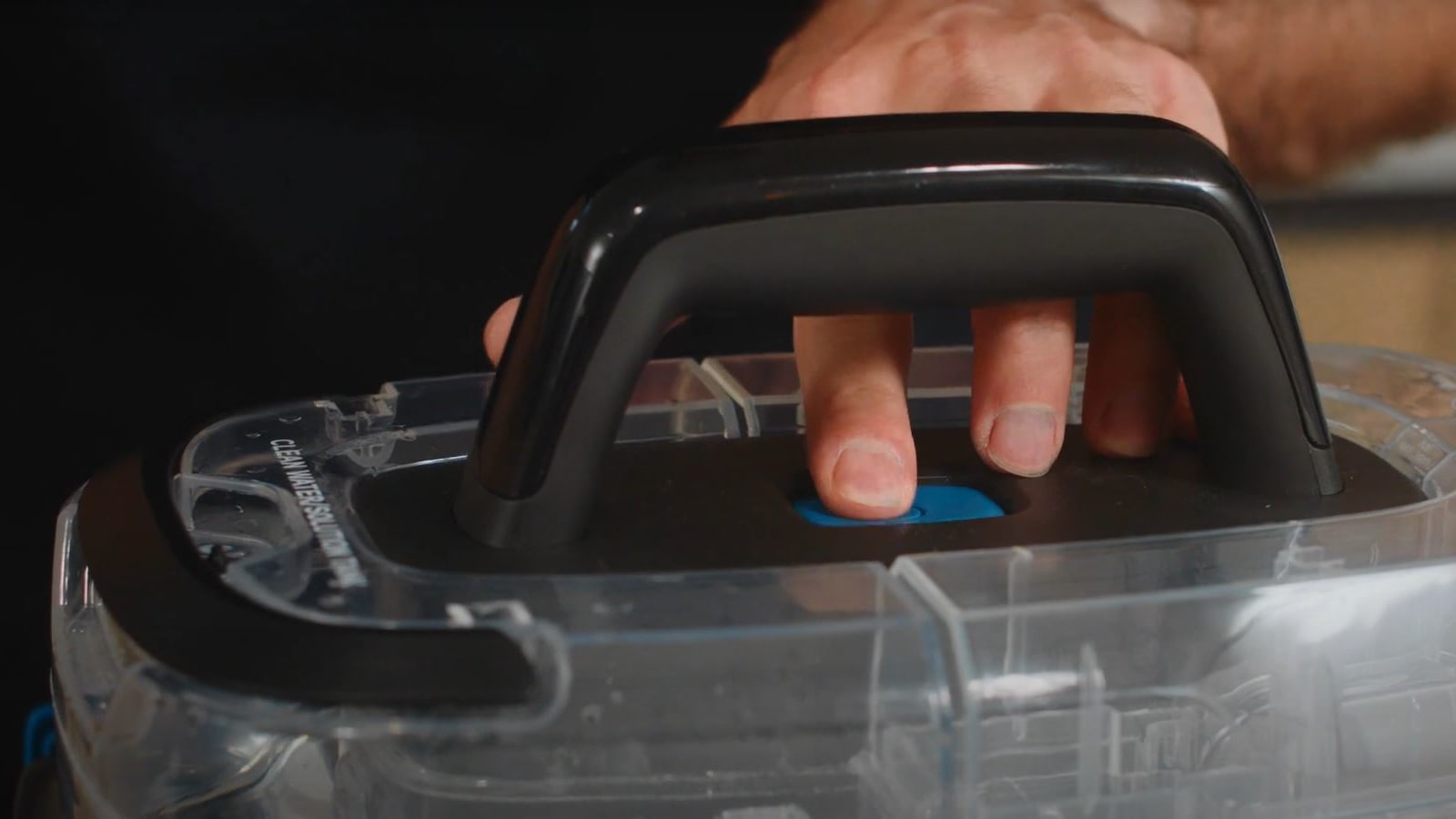

On/off button

Plug the machine in to the mains, switch on and press the on/off button on the machine.

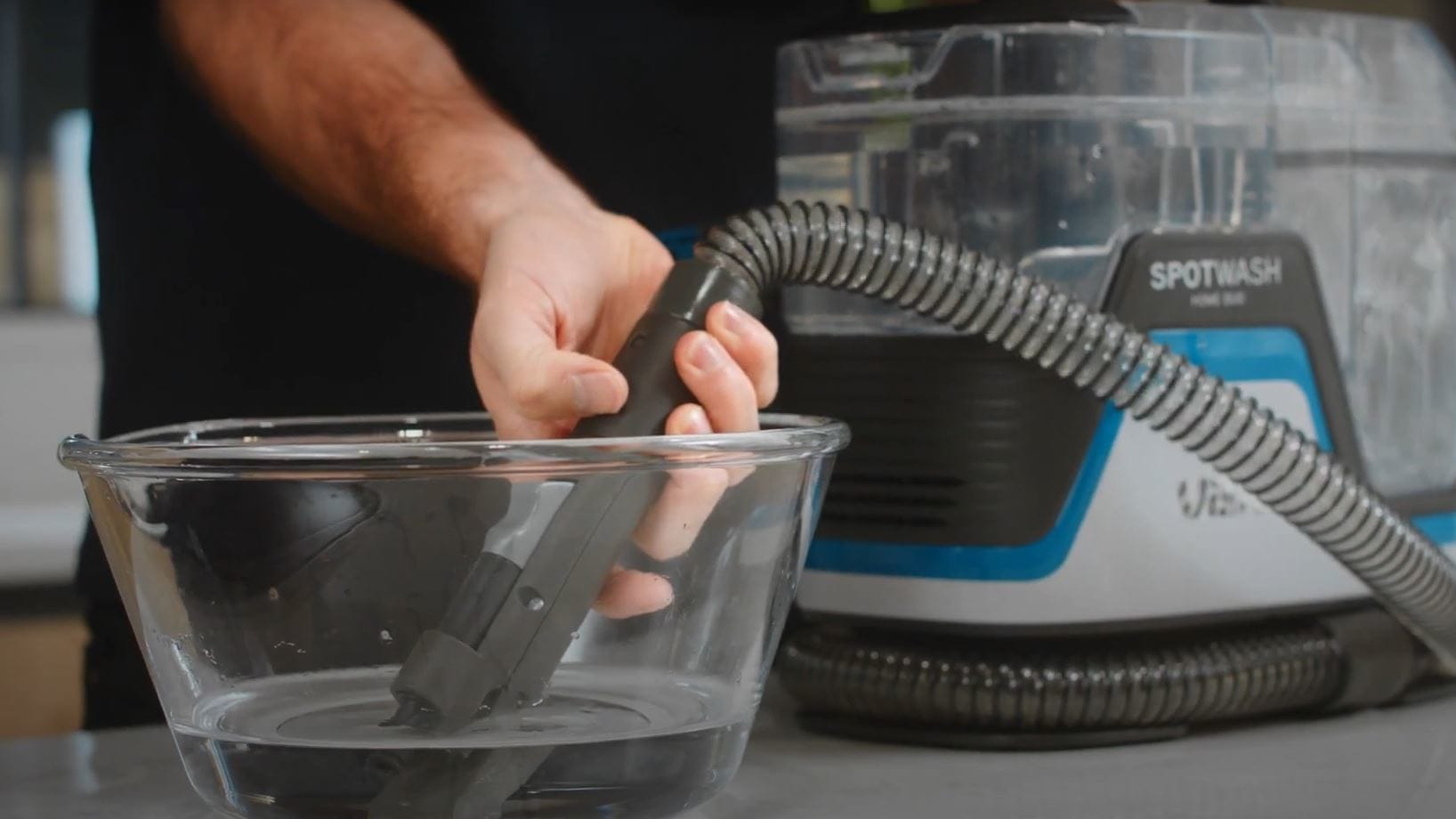

Bowl and hose

Submerge the end of the hose into the bowl of water. Do not press the trigger on the hose.

10 mins

Once the bowl is empty, let the machine run for another 10 seconds to remove any residual water and debris left in the hose. Repeat the process again if needed.

On/off button

Press the on/off button on the machine to switch off and unplug the machine from the mains.

Remove tank

Press the dirty water tank release button. Pull forward and lift the tank to remove.

Remove lid

Lift the lid to remove from the dirty water tank.

Empty tank

Empty the dirty water tank into the sink or toilet.

Emptying and cleaning the dirty water tank

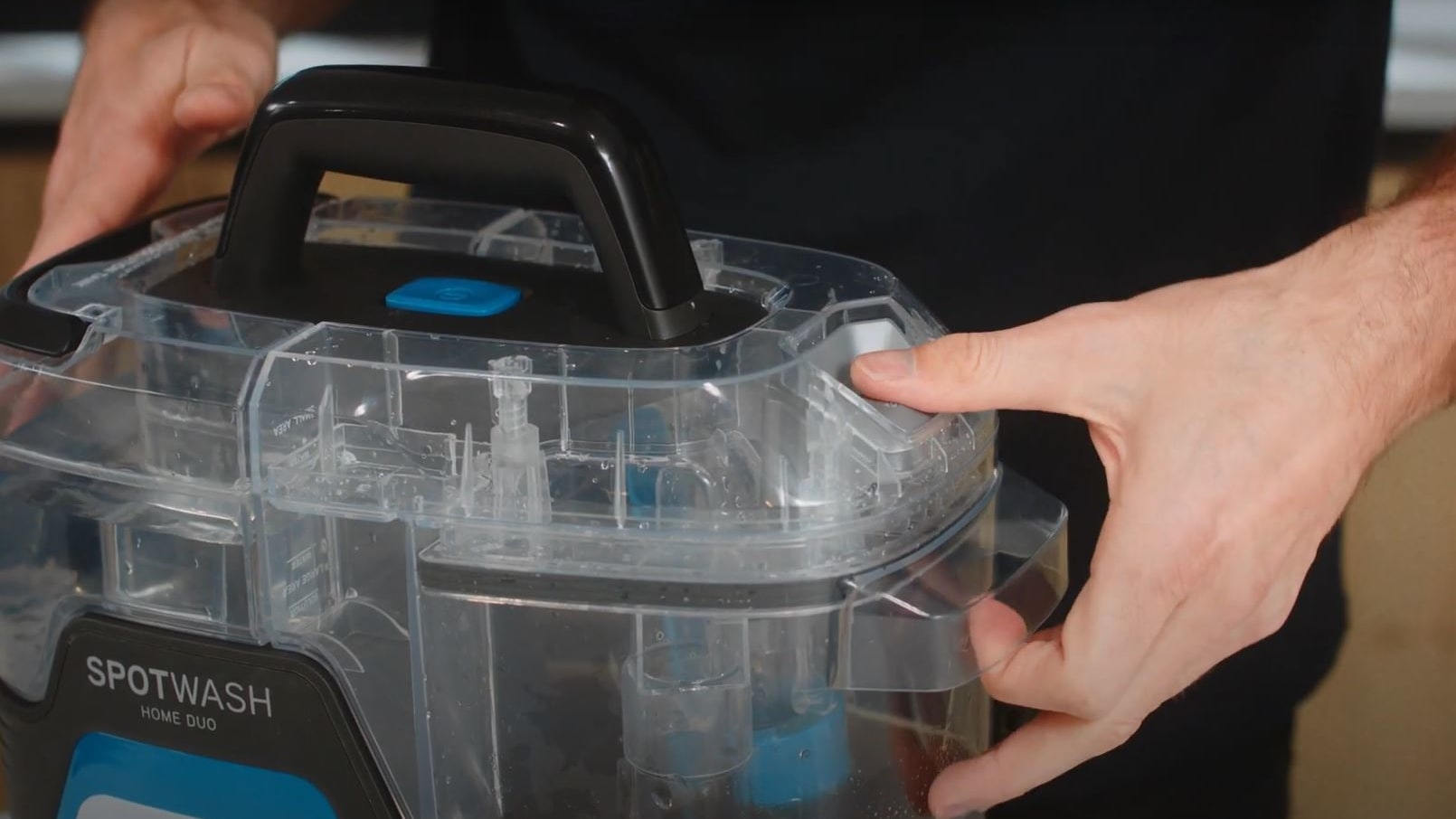

Remove dirty water tank

Press the dirty water tank release button. Lift off the machine using the carry handle on the front of the tank.

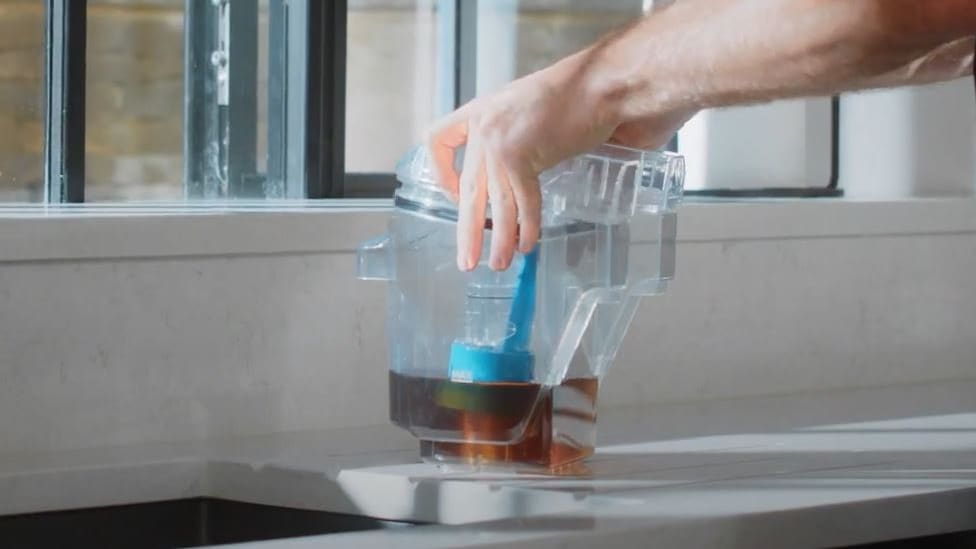

Remove lid

Pull to remove the lid from the dirty water tank.

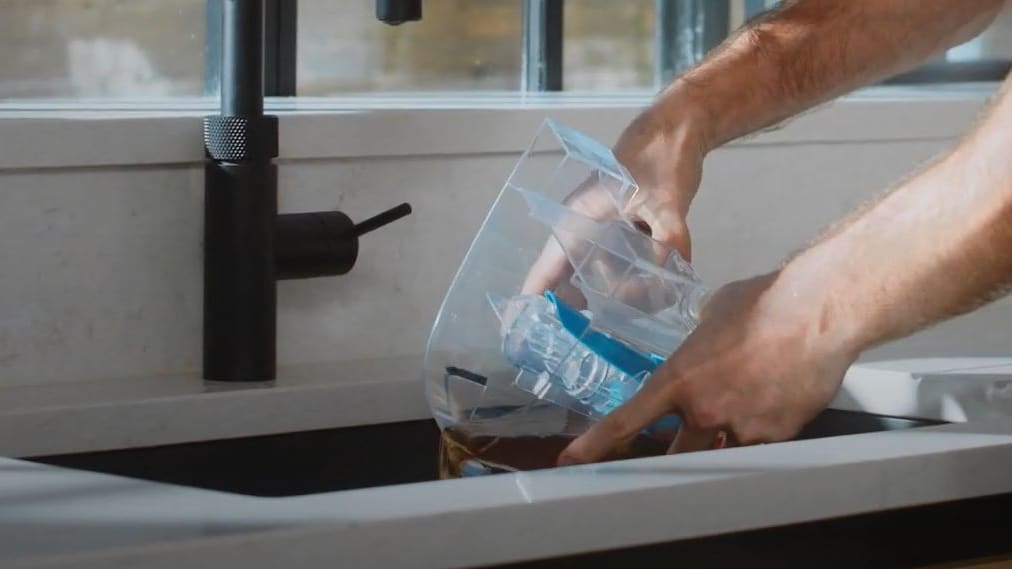

Empty tank

Empty the dirty water into the sink or toilet.

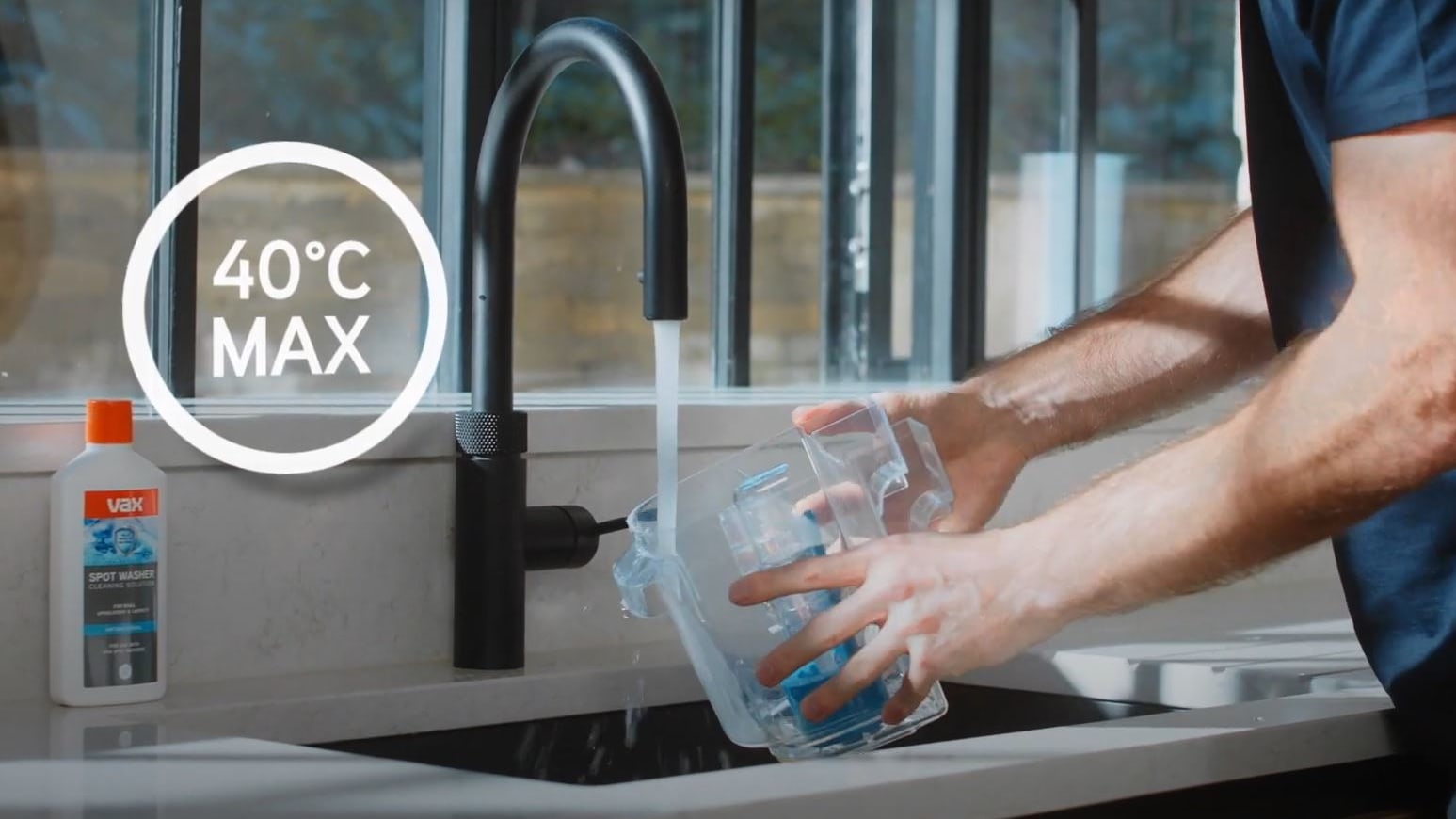

Rinse tank

Rinse the dirty water tank and lid under water (max 40°C) to remove dirt/debris.

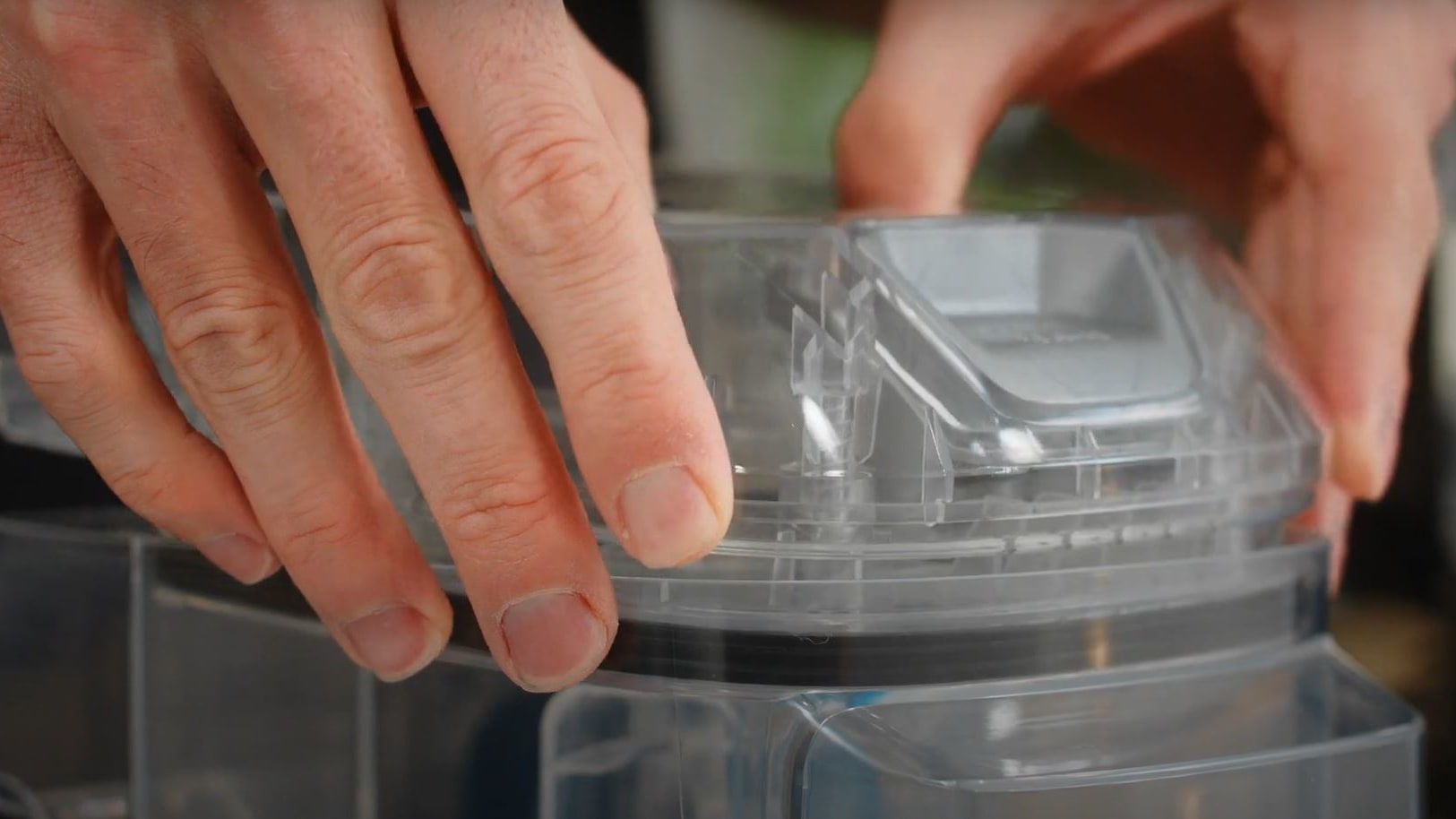

Refit lid

To refit the lid align the lid to the tank and firmly push down into place.

Replace tank

Refit the bottom of the dirty water tank on to the machine first and then push down until it clicks into place.

Cleaning the tools and attachments

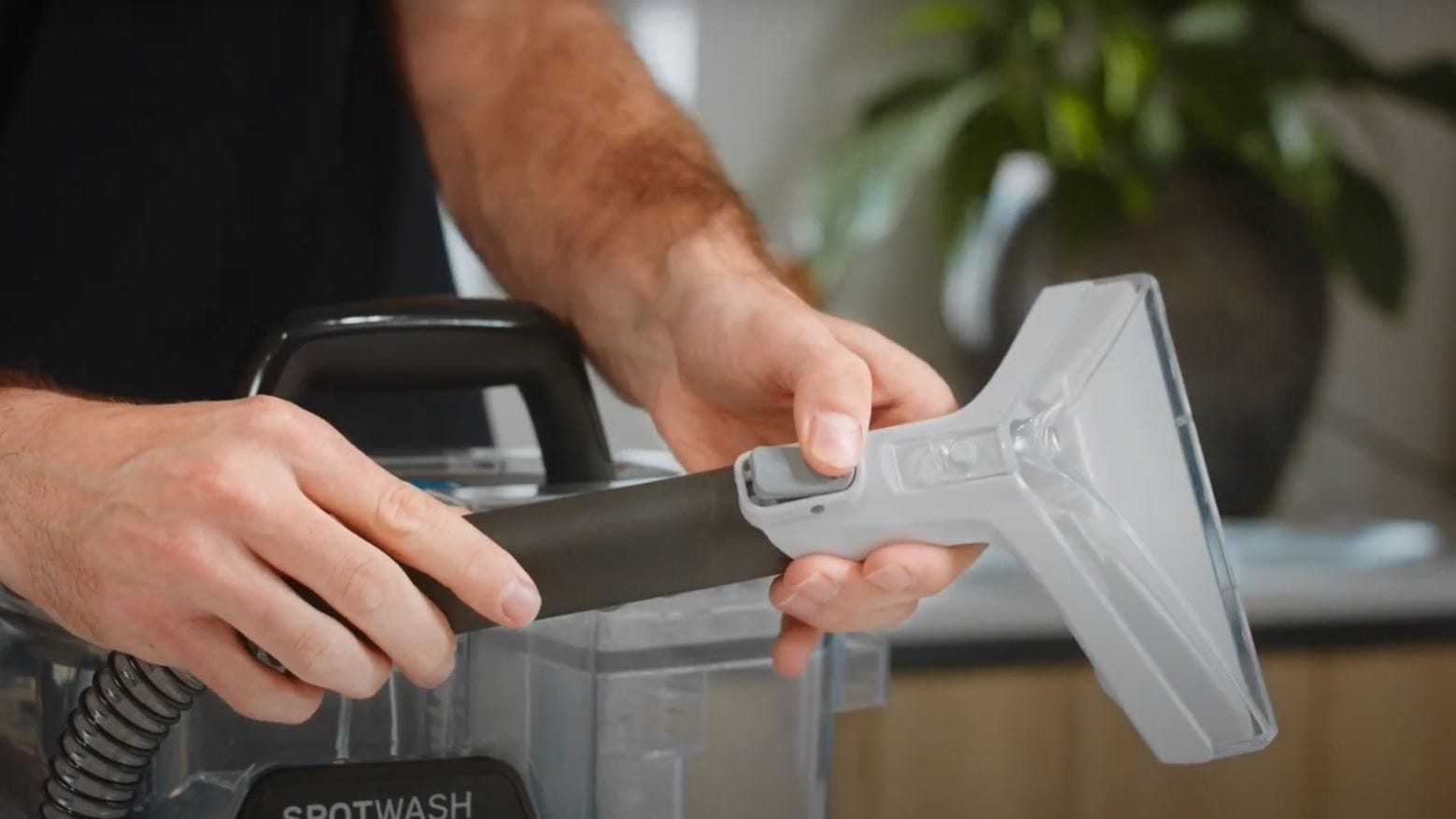

Remove tool

Press the tool release button and pull to remove the tool from the hose.

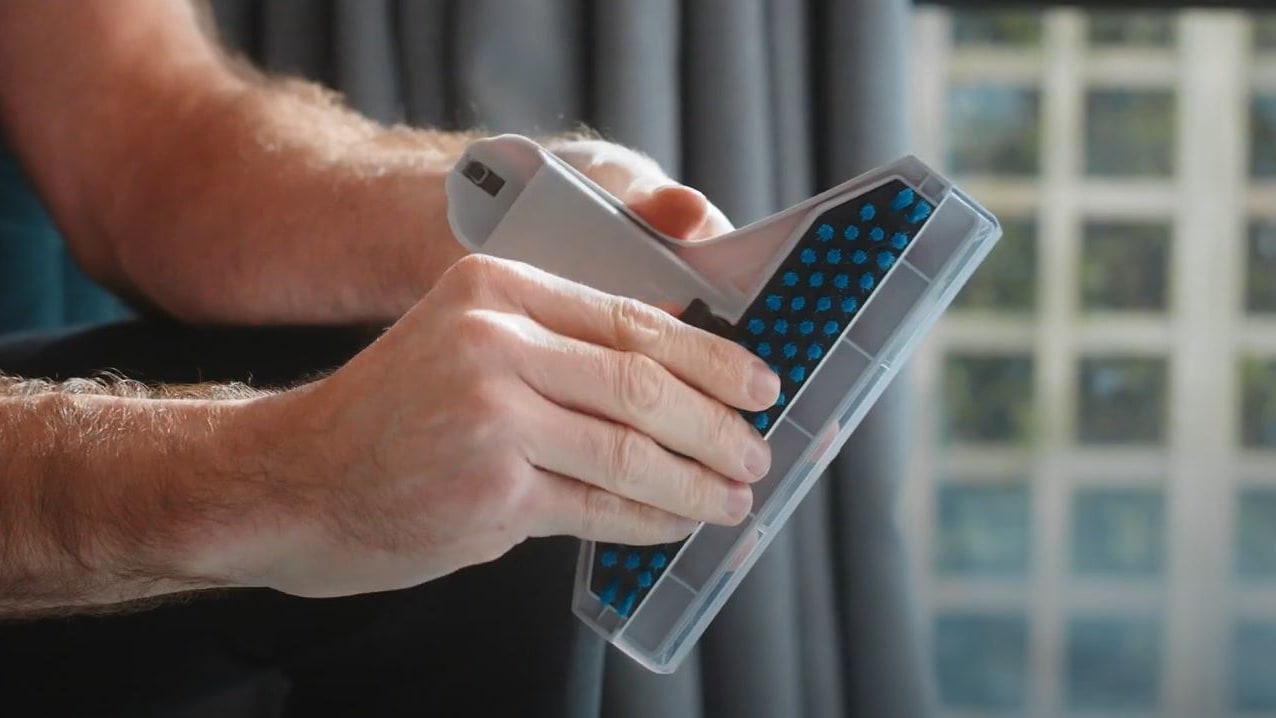

Remove attachment

Pull and lift the clip to remove the attachment from the wash tool.

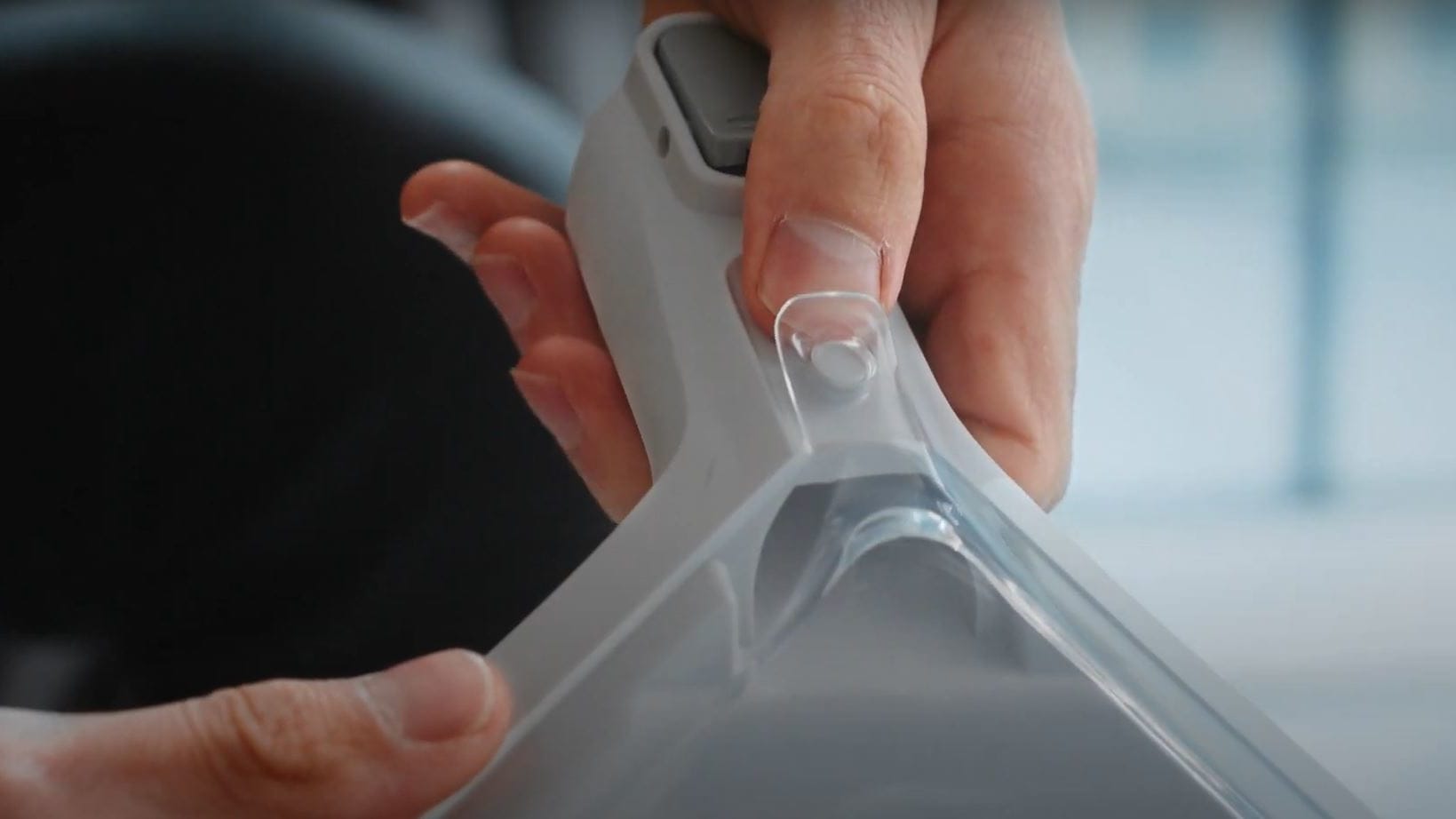

Remove nozzle

To remove the nozzle from the wash tool, push and lift the clear plastic clip up over the button on the end of the hose.

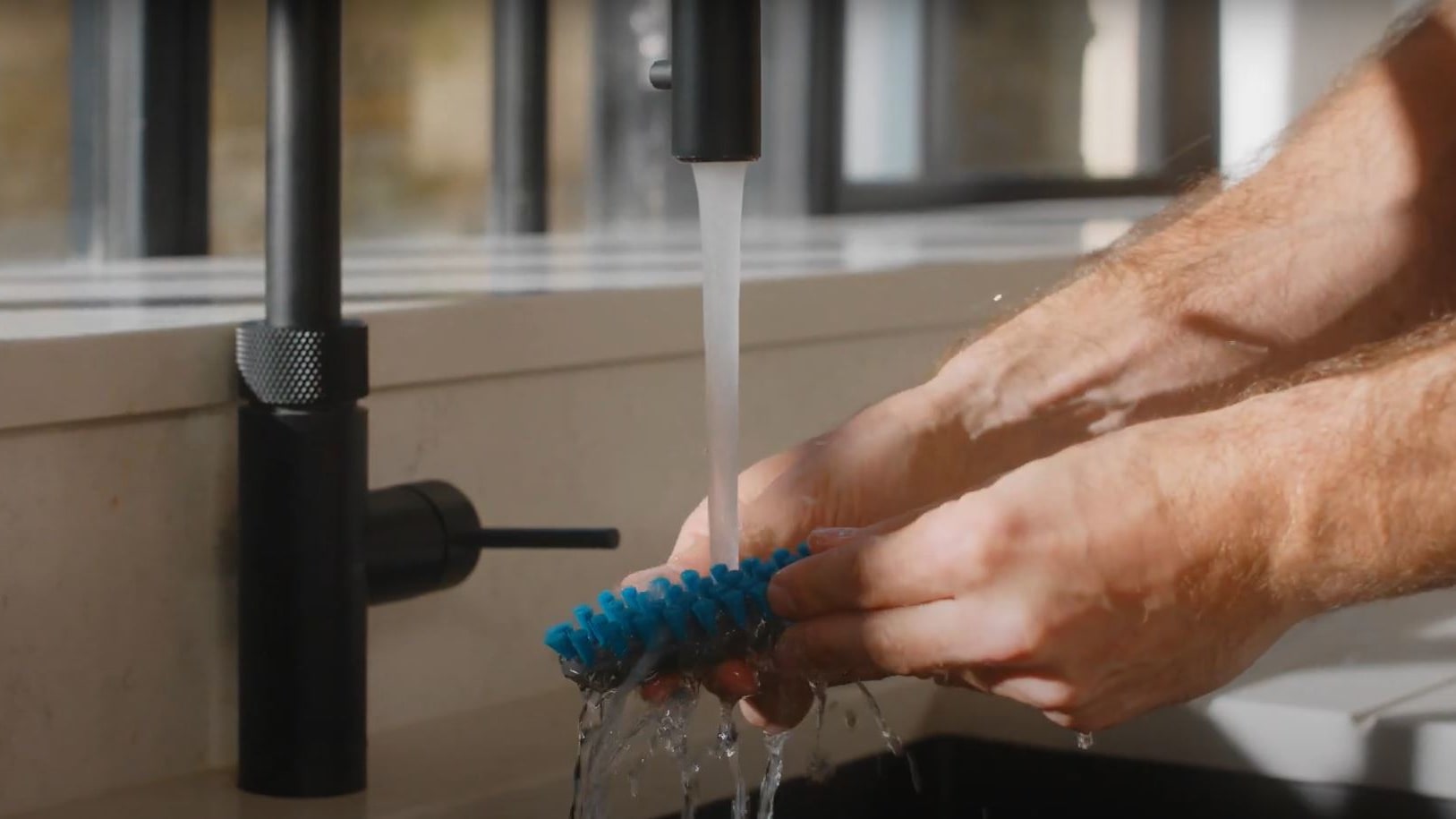

Rinse tools

Rinse the tools, attachments and the nozzle under warm water (max 40°C) to remove dirt/debris.

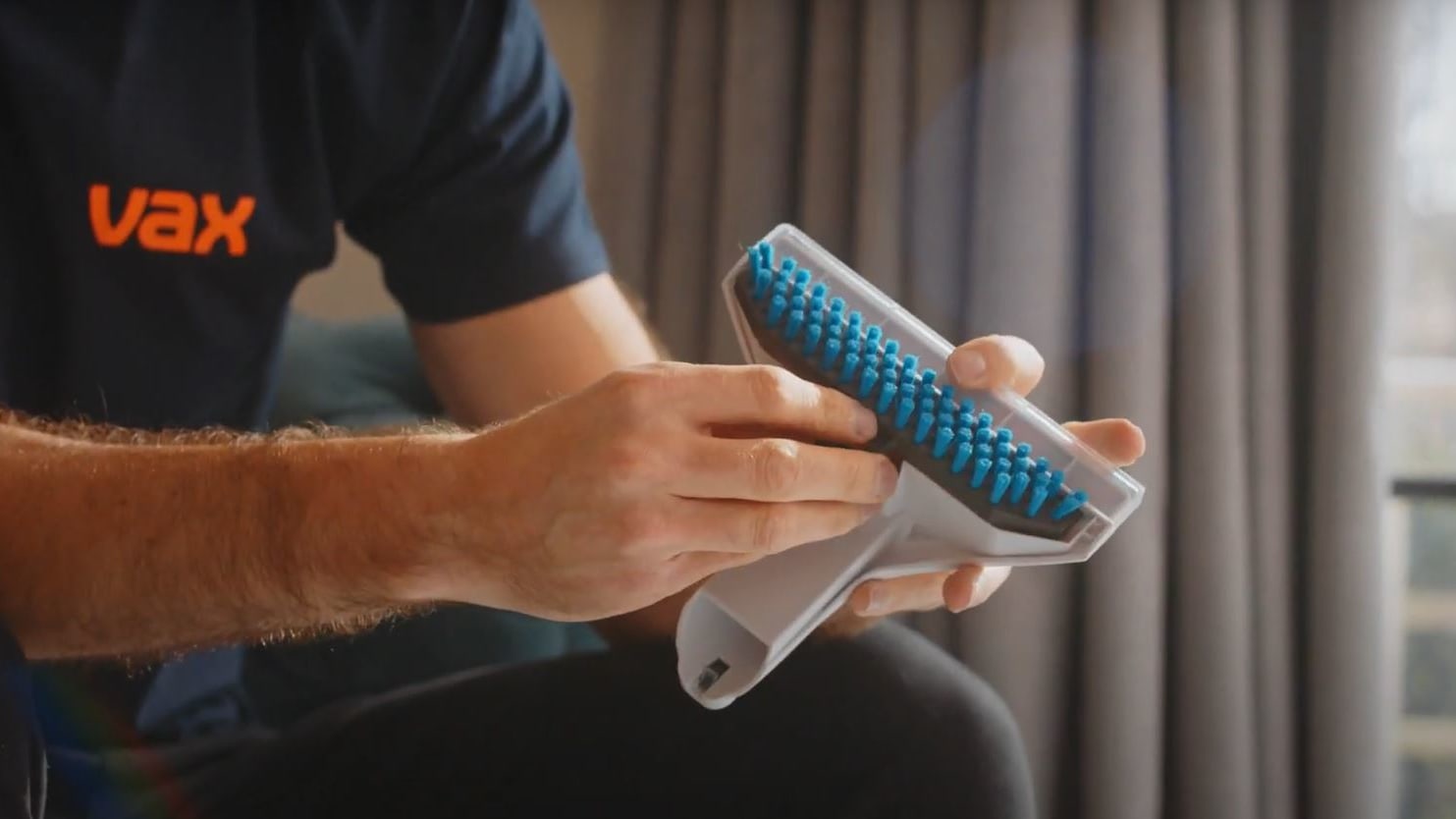

Refit nozzle

To refit the nozzle and attachment, slide the nozzle onto the wash tool until it clicks into place and fit the front of the attachment into the front of the wash tool and push the clip down.

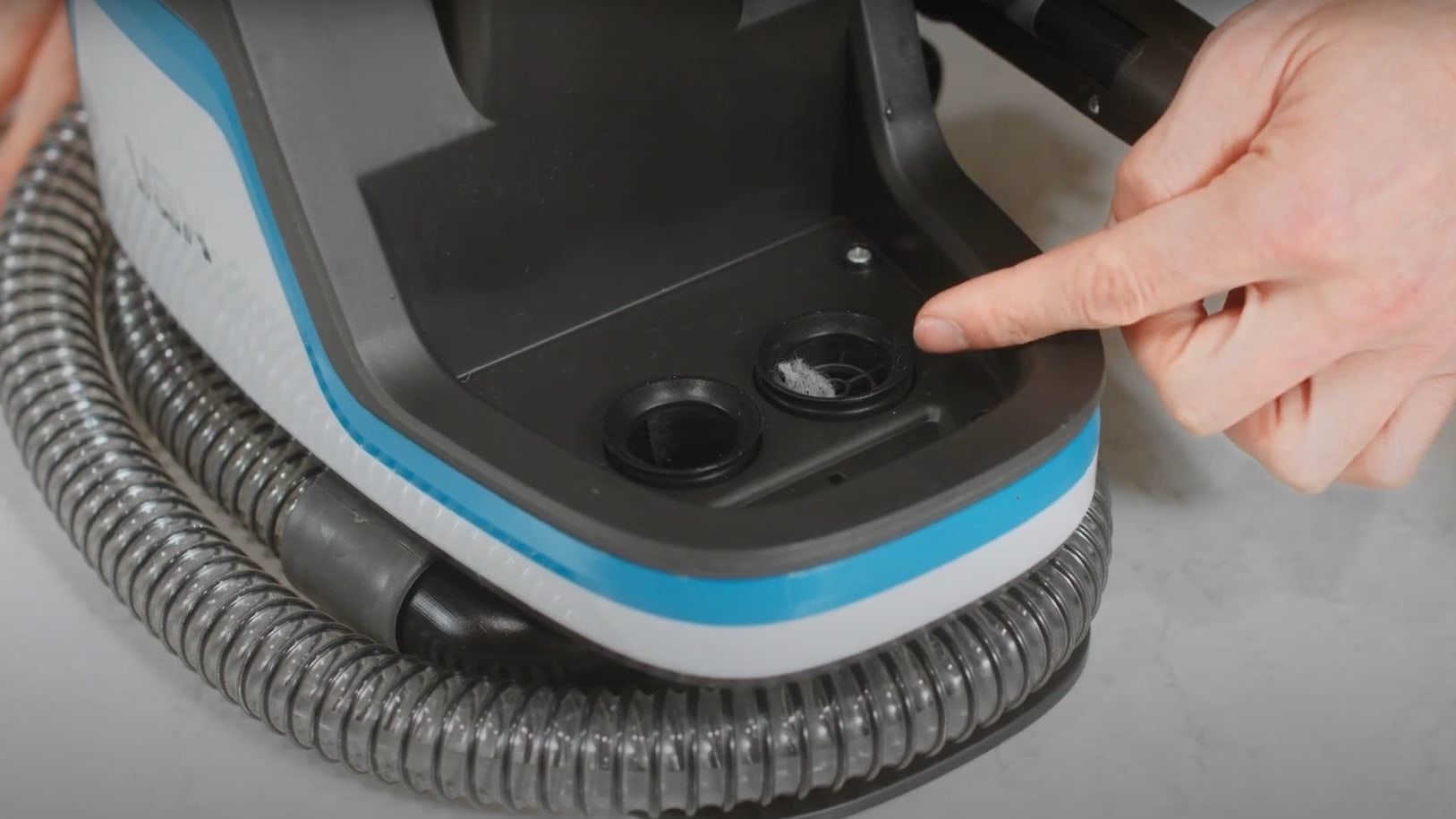

Cleaning the filter grill
Remove dirt bin

Press the dirty water tank release button. Pull and lift to remove the tank.

Lift lid

Remove any dirt and debris from the filter grill located underneath the dirty water tank.
