Maintenance

Here is what you can do to keep your appliance performing at its best.

Emptying and cleaning the dirty water tank

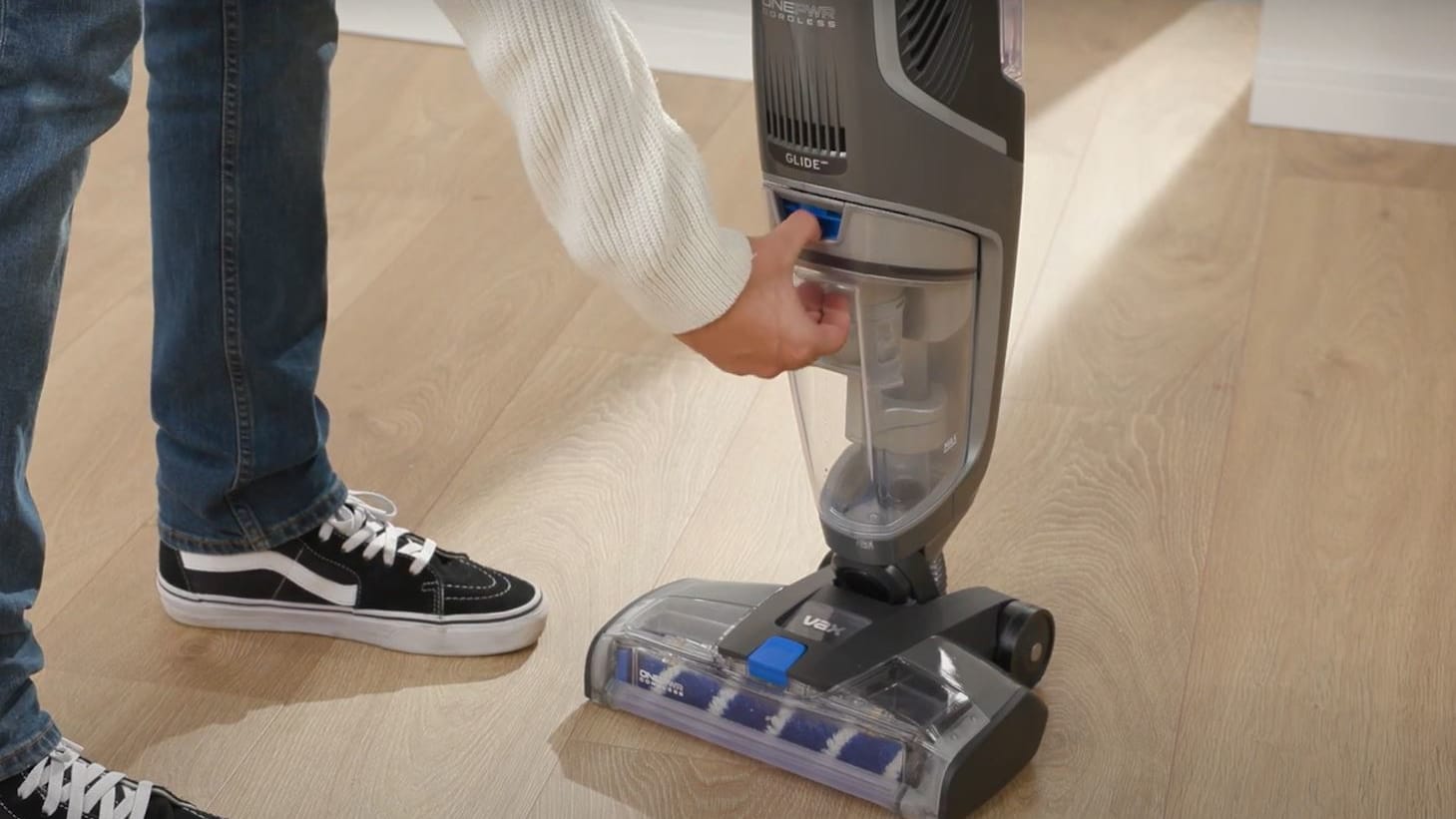

Remove DWT

Press down the dirty water tank release button and pull the tank to remove

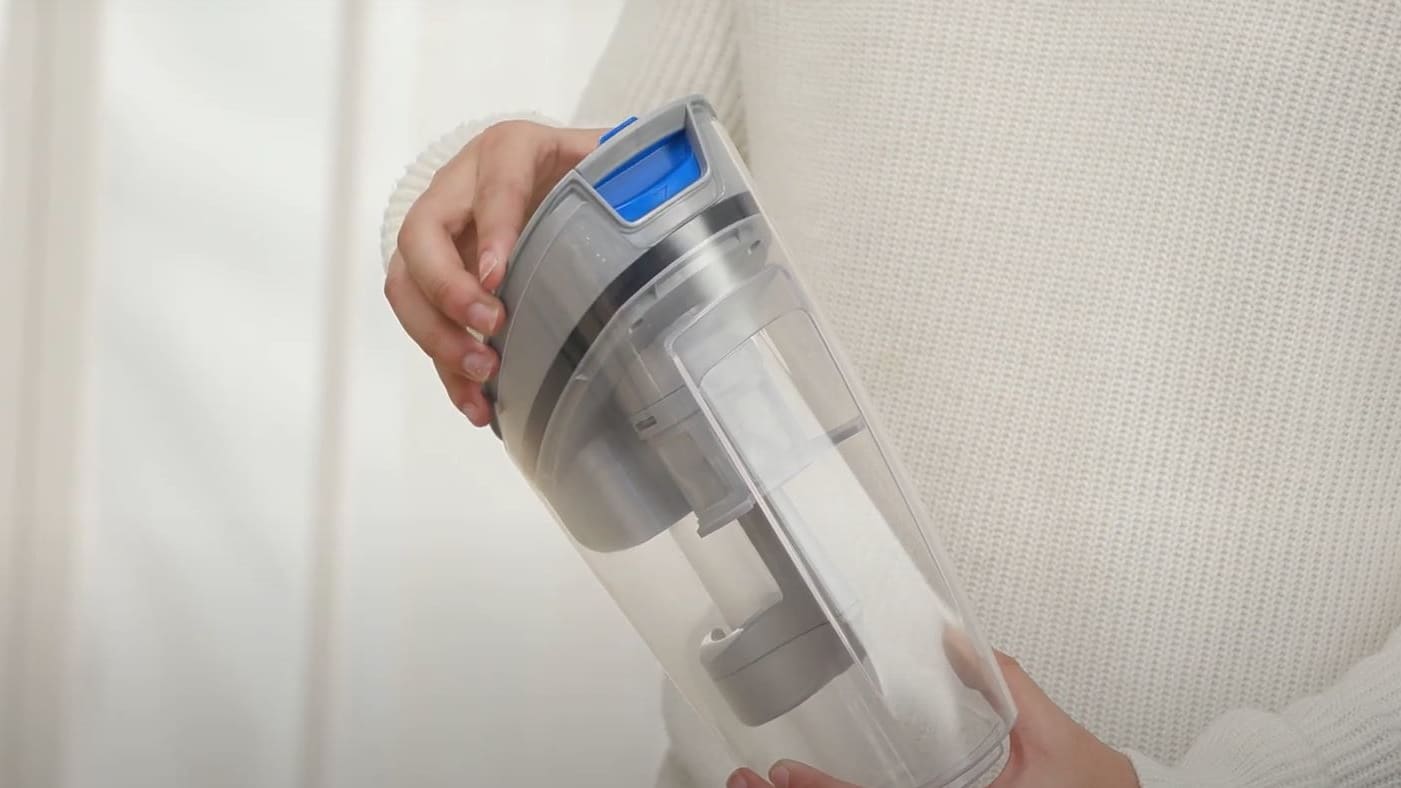

Pull to remove DWT lid

Hold the dirty water tank and pull the lid upwards to remove

Empty DWT

Empty the dirty water over a sink

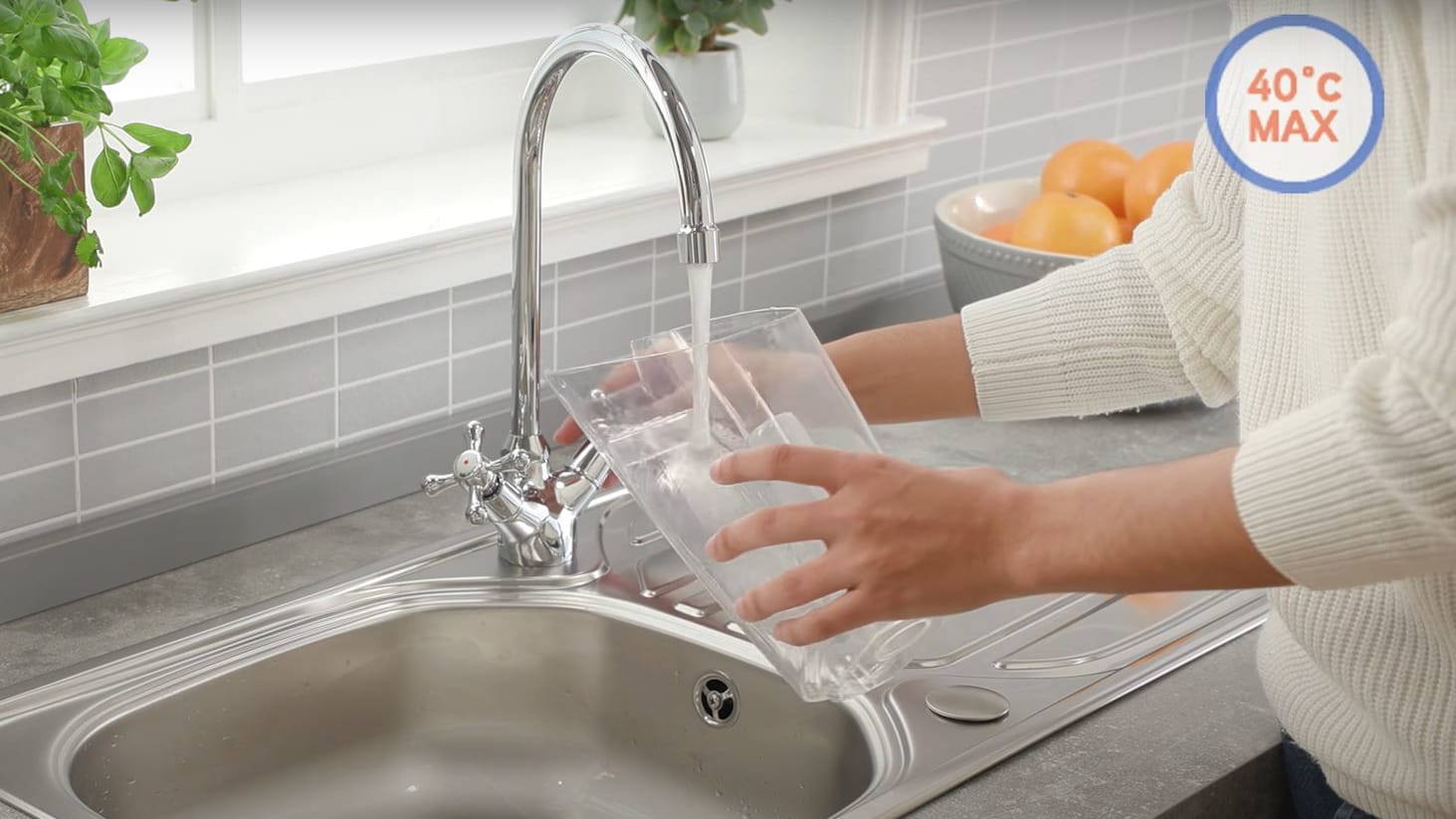

Rinse DWT

Rinse the tank and separator under water (max 40°C) to remove dirt/debris

Cleaning the brushroll and rinsing the machine using quick clean

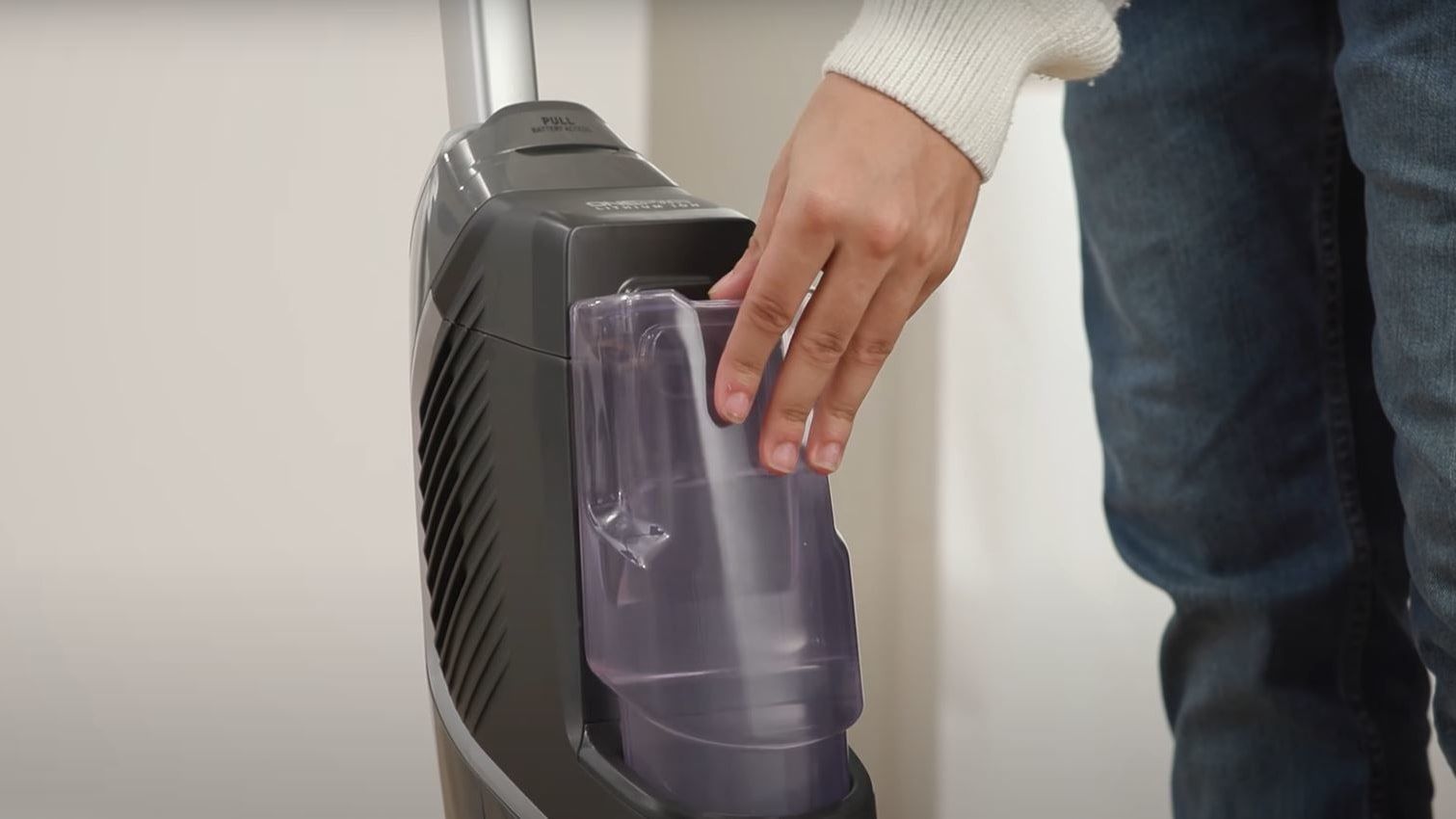

Fill clean water tank

Fill the clean water tank up with warm water (40˚ max) and replace the cap and refit the tank on to the machine

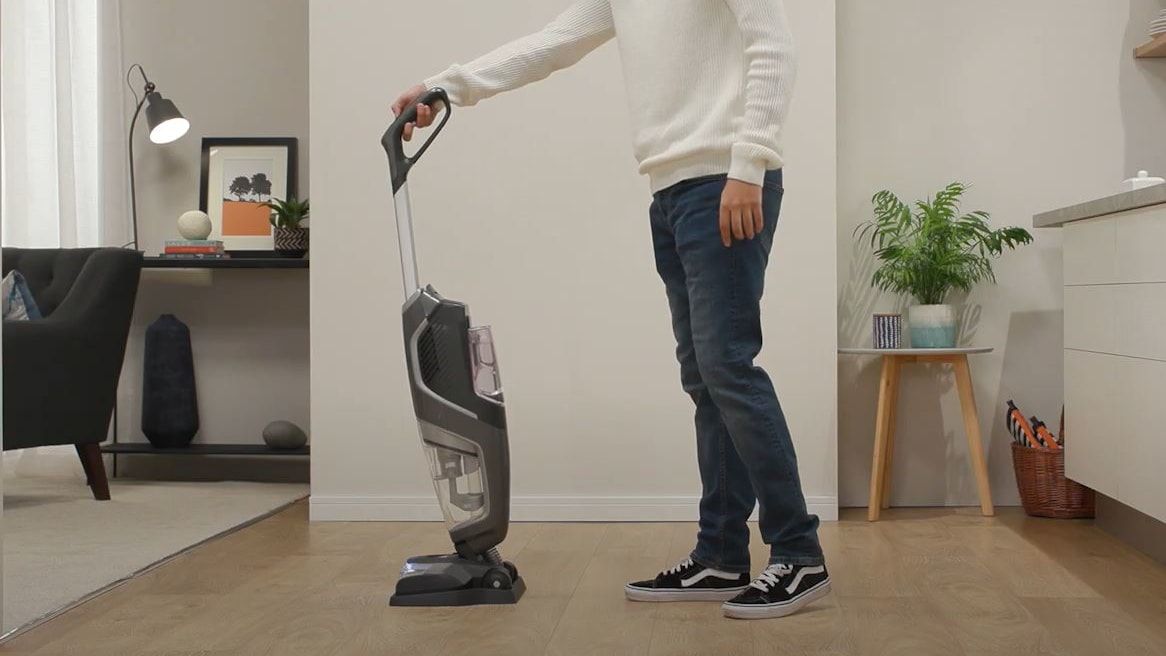

Stand in rinse tray

Stand the machine upright in the rinse/storage tray

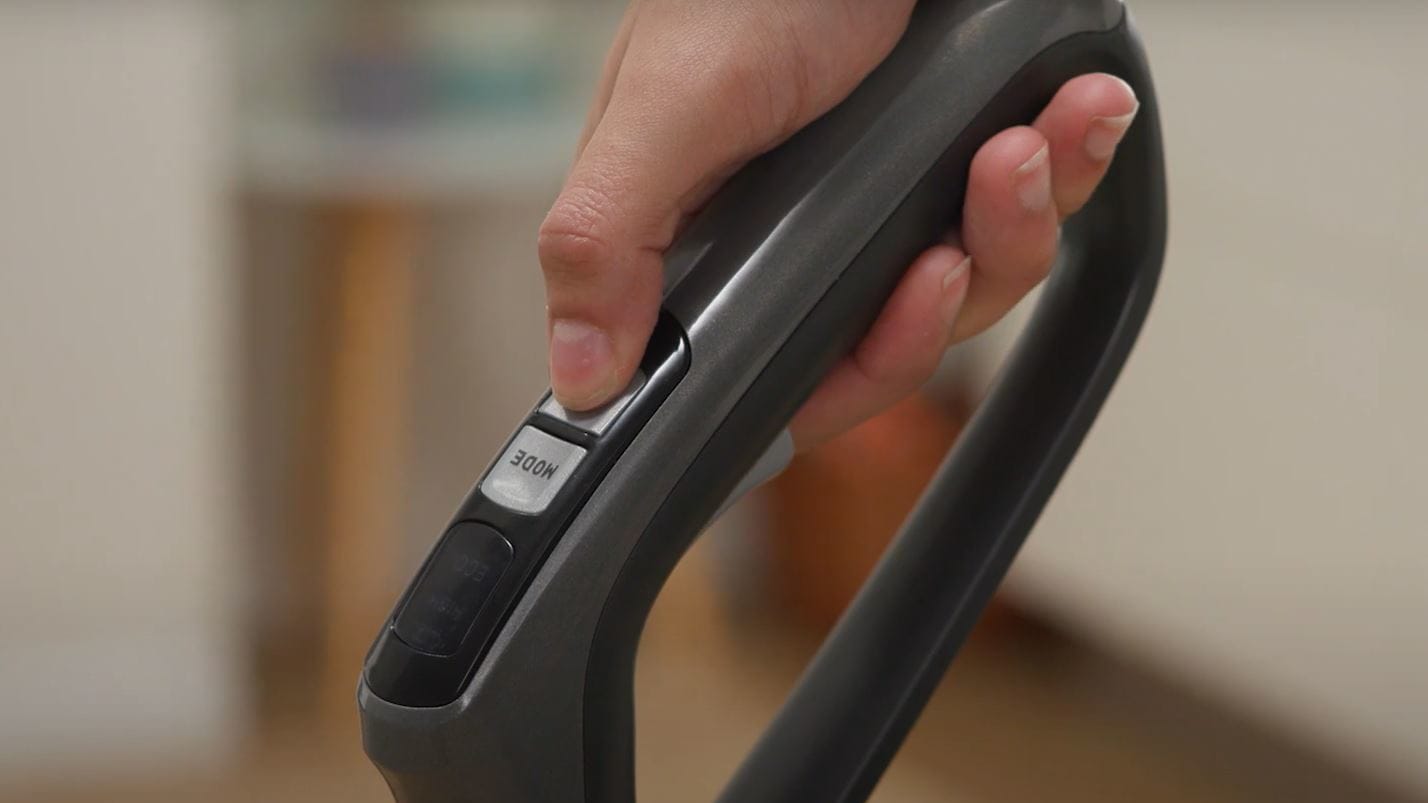

Press power button

Switch the machine on

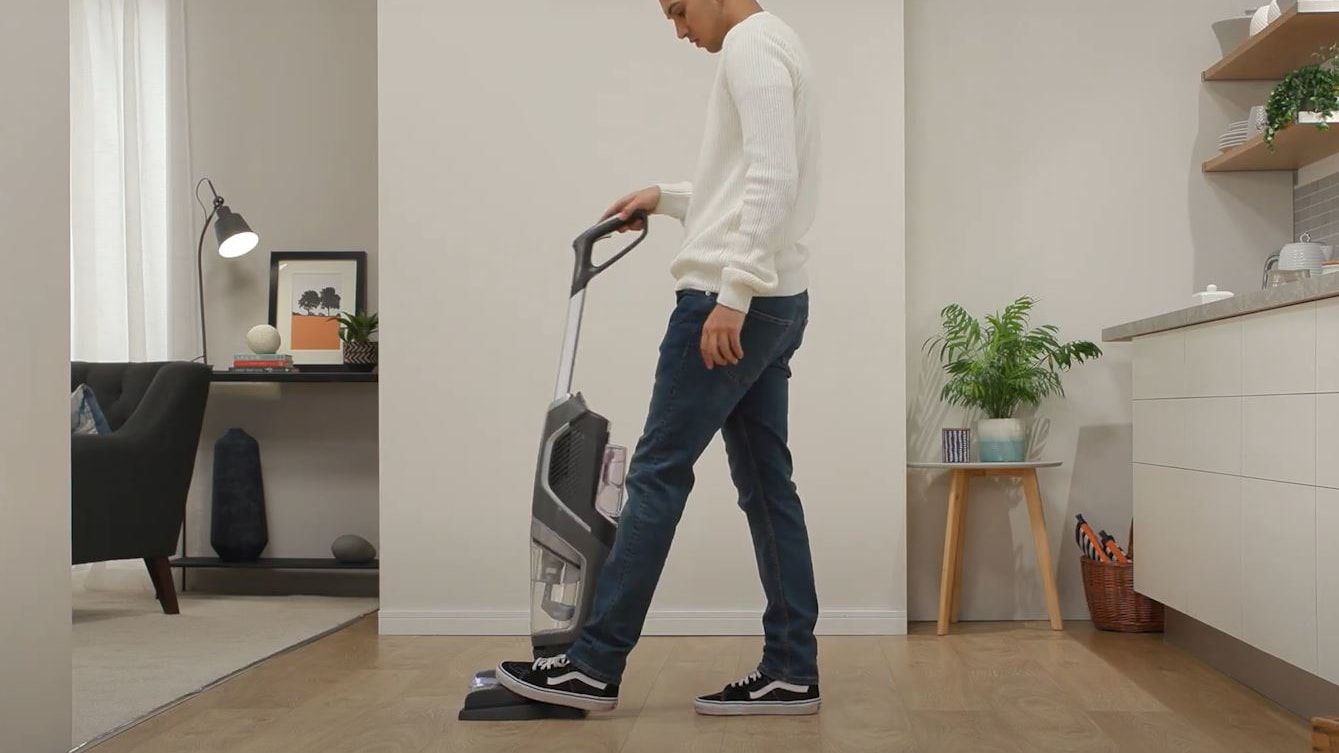

Recline machine in tray

Recline the machine so that the brushes rotate

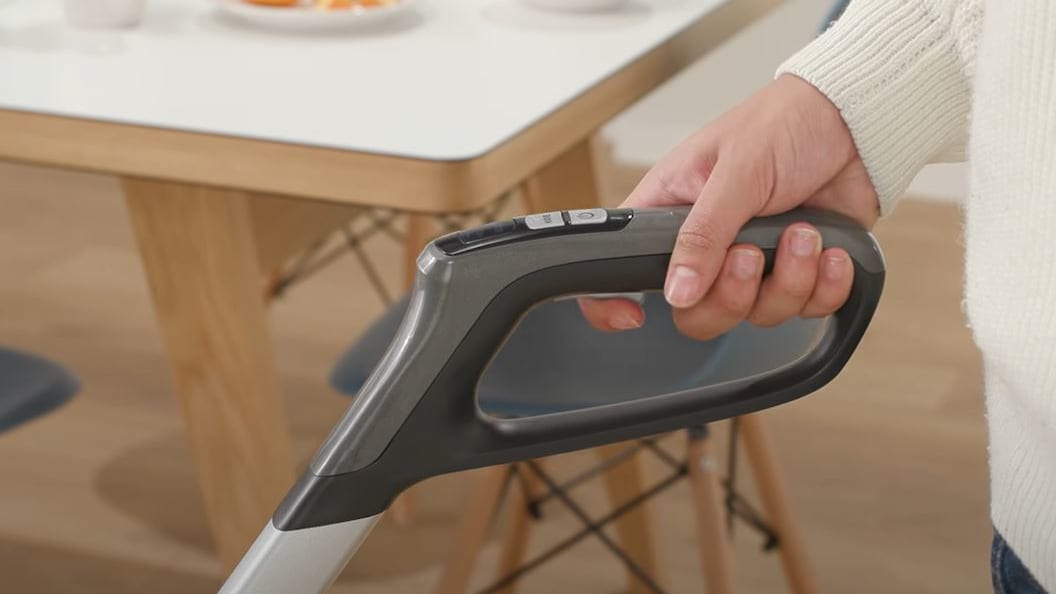

Press trigger

Press the trigger to release water onto the brushroll. Release the trigger at regular intervals to remove the brushroll dirt and debris. Repeat the process until the brushroll is clear and clean

Cleaning the filter and separator
Remove DWT

Press down the dirty water tank release button and pull to remove

Pull to remove DWT lid

Hold the dirty water tank and pull the lid upwards to remove

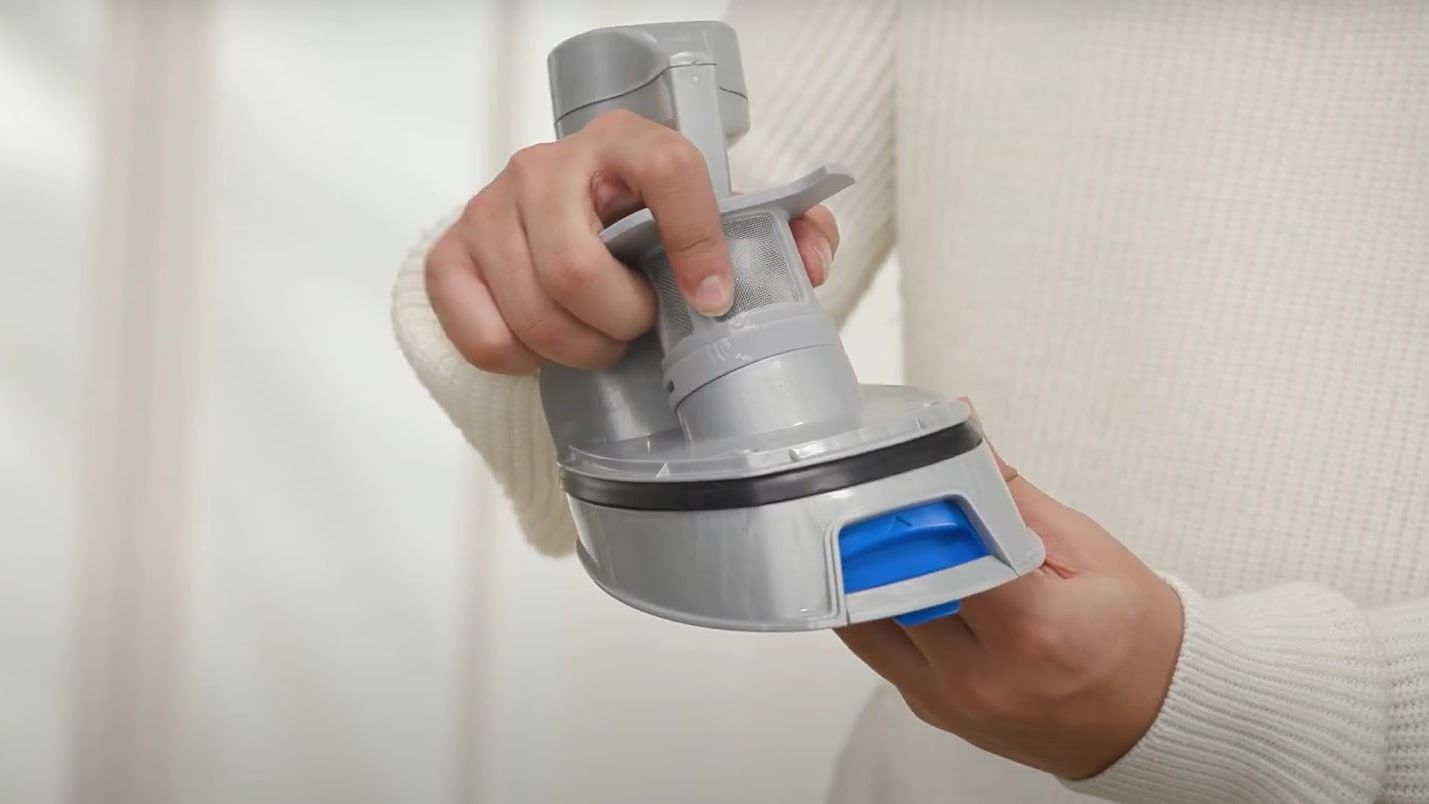

Twist the separator to remove

Twist the separator clockwise to release from the lid

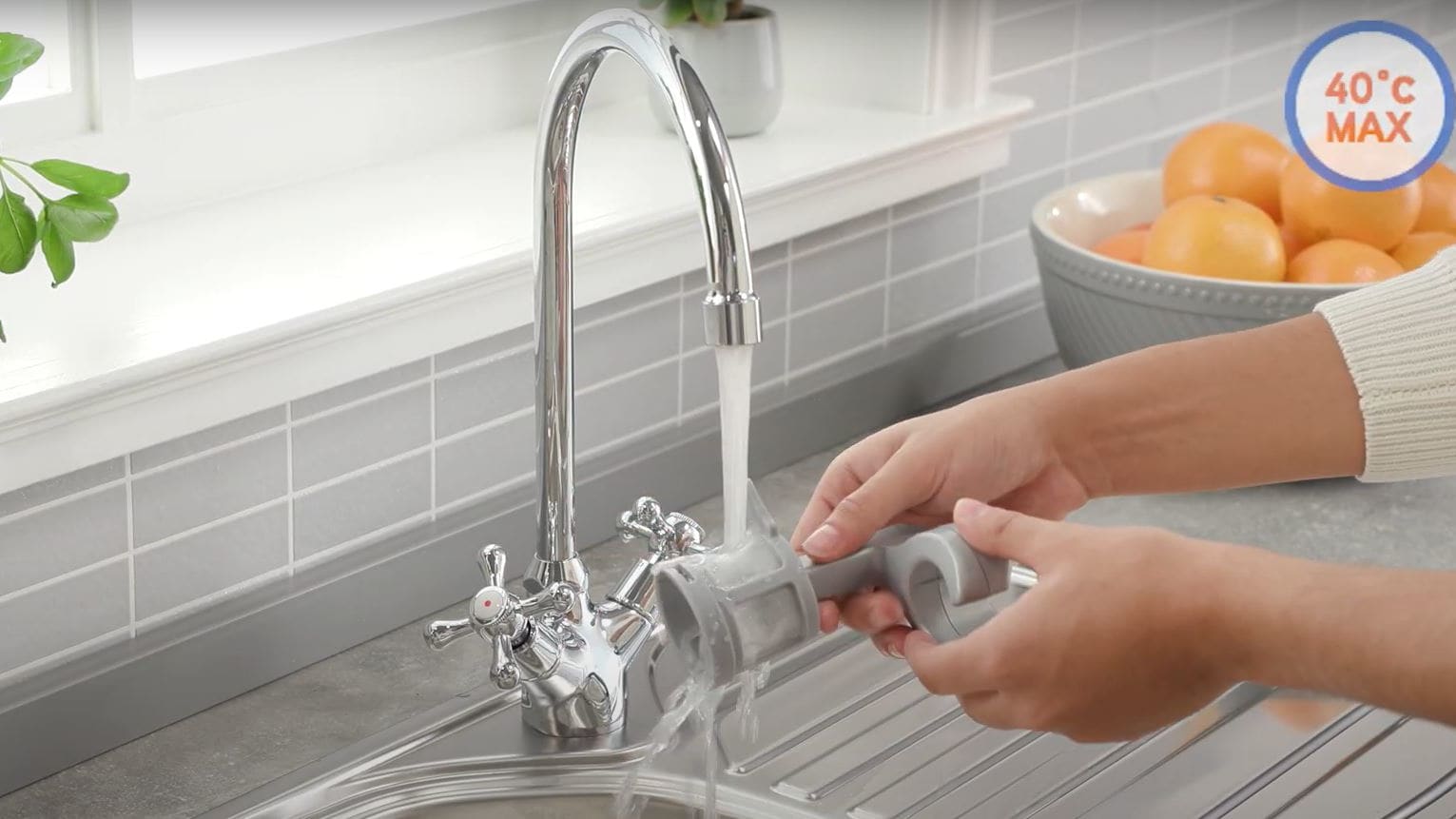

Rinse separator under the tap

Wash the separator mesh under running water (40˚ max) to remove any dirt and debris

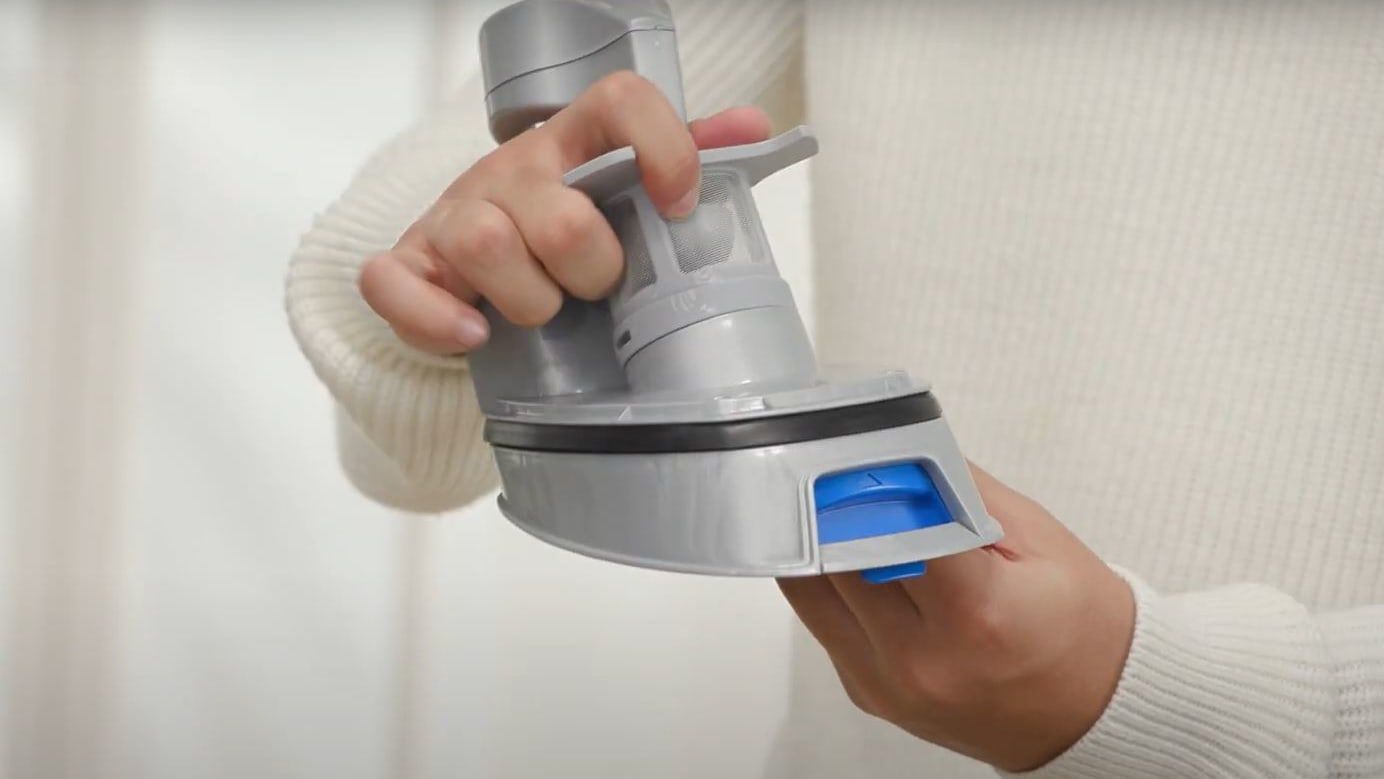

Twist separator to lock

To refit, line up the separator tab with the lid tab and twist anticlockwise to lock

Pull the tab to remove the filter

Pull the tab on the bottom of the filter to remove

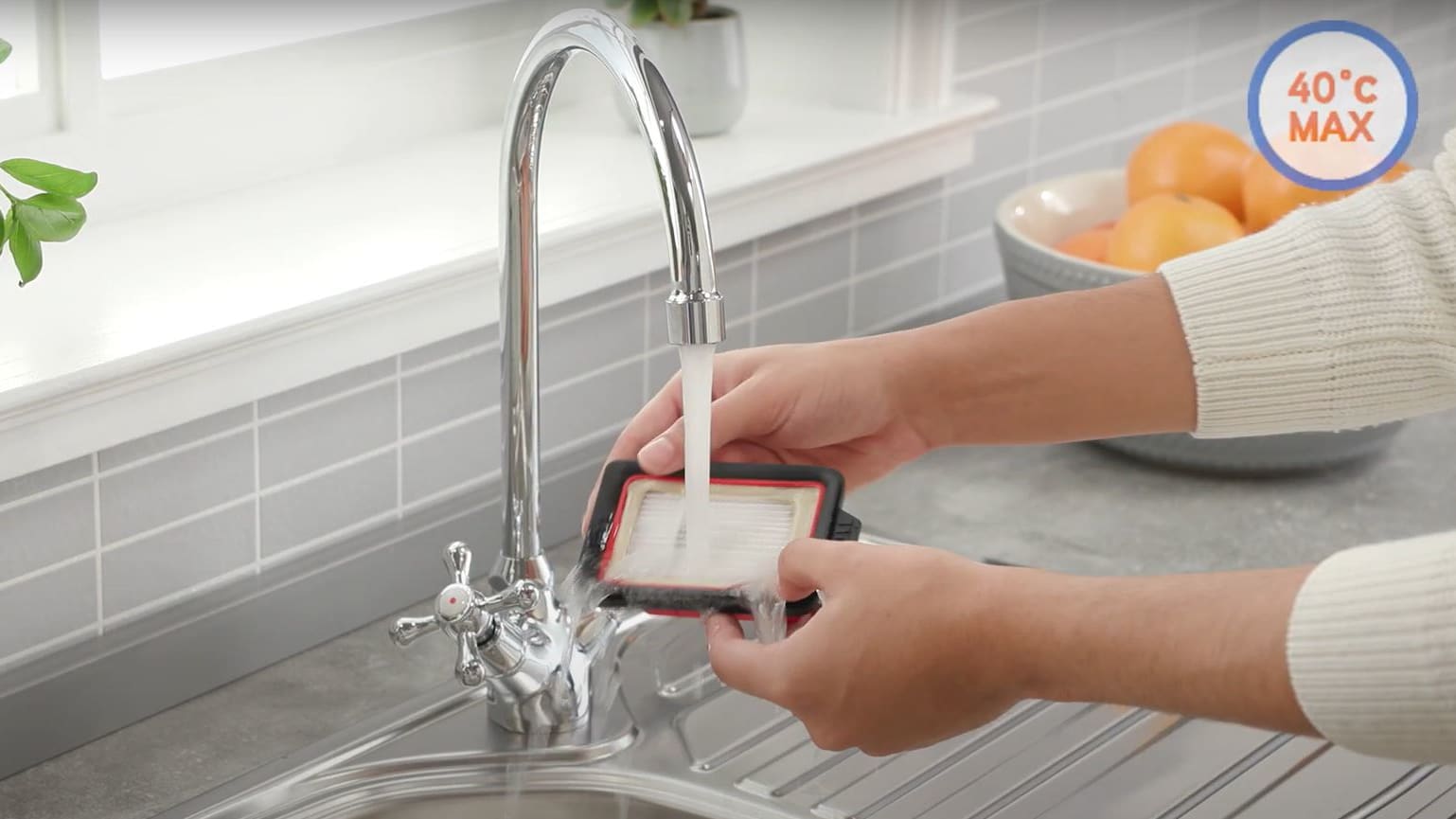

Rinse the filter under the tap

Wash the filter under running water (40°C max). Leave for at least 24hrs or until fully dry before refitting

Cleaning the brushroll

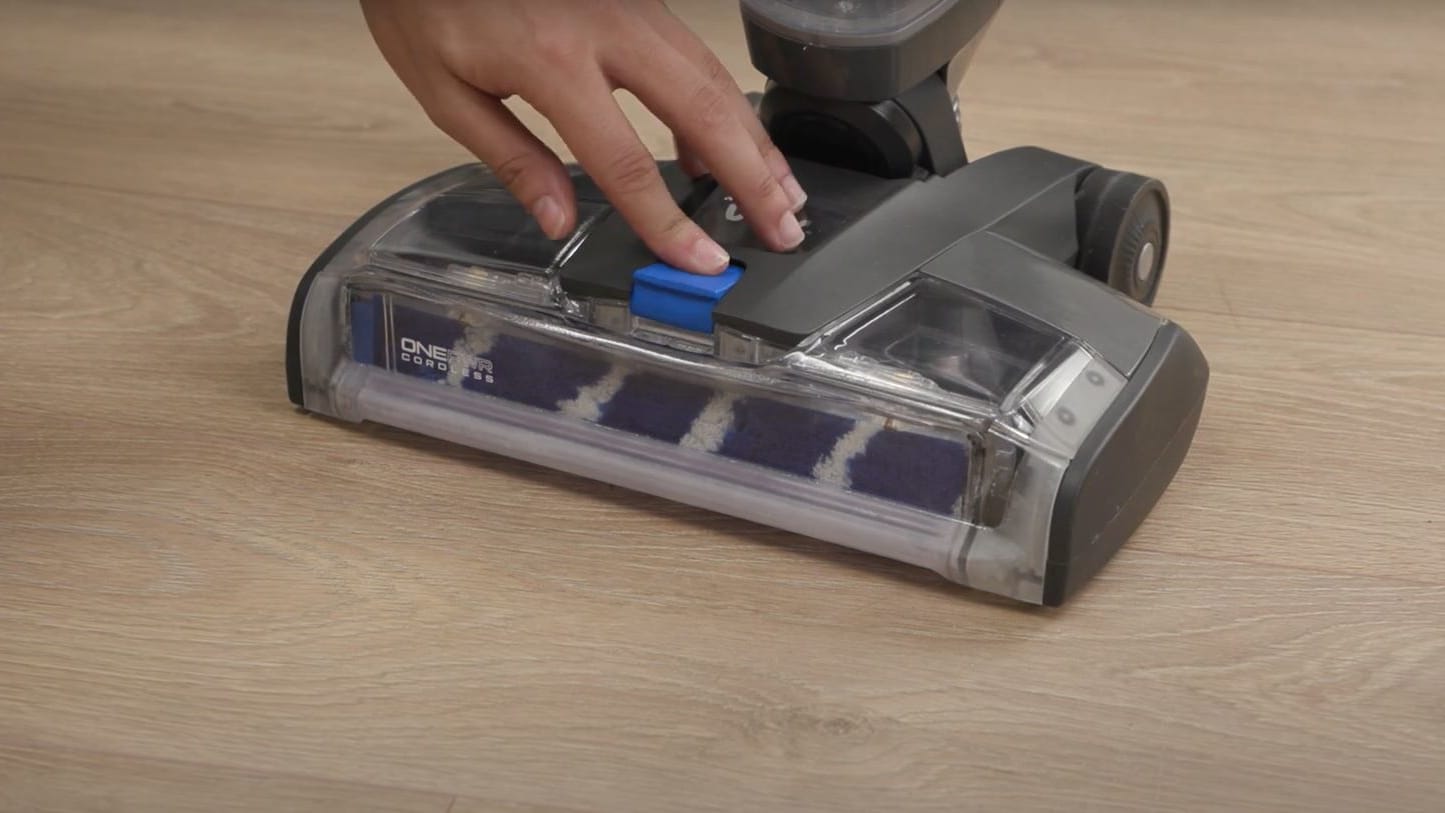

Brushroll release

Press the brushroll cover release button and pull to remove the brushroll cover.

Remove brushroll

Pull the tab on the side of the brushroll to remove.

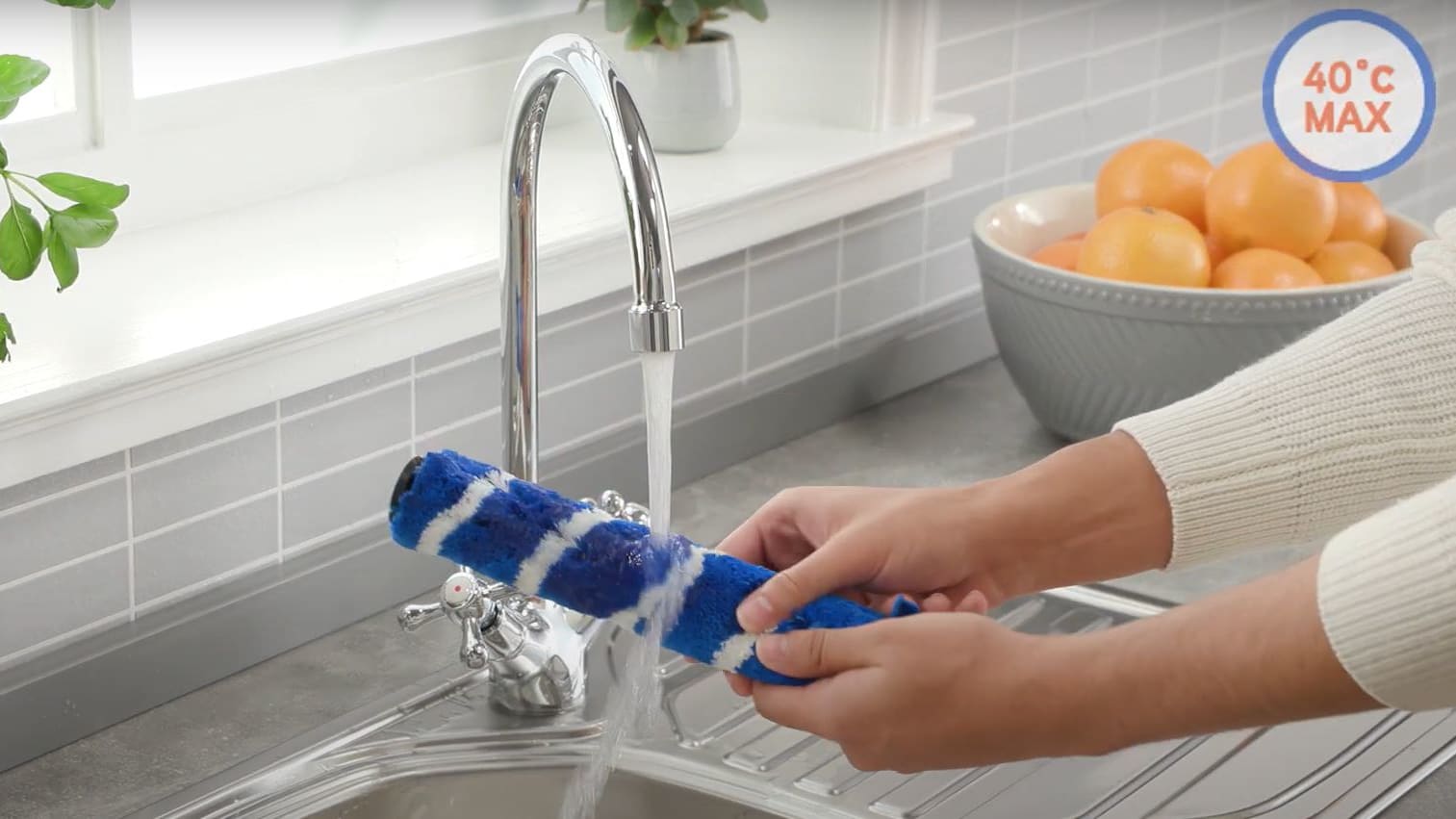

Rinse brushroll

Rinse the brushroll under a tap (40˚ max) to remove any dirt or debris.

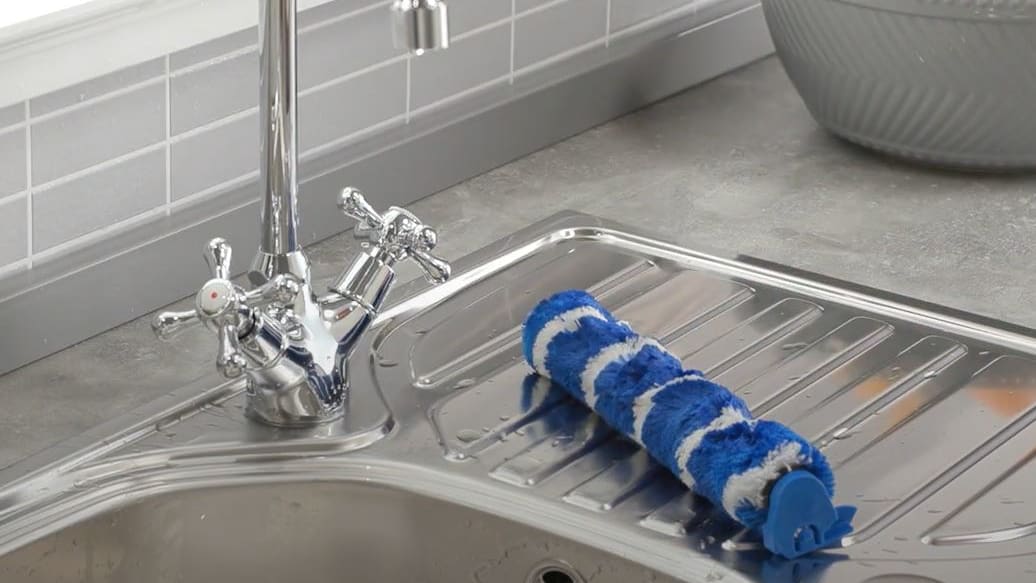

Dry

Allow the brushroll to fully air dry before refiting. The brushroll can also be dried and stored in the rinse/storage tray.

Replace brushroll

Refit the brushroll right side first into the machine, push the tab on the left in to place to secure.

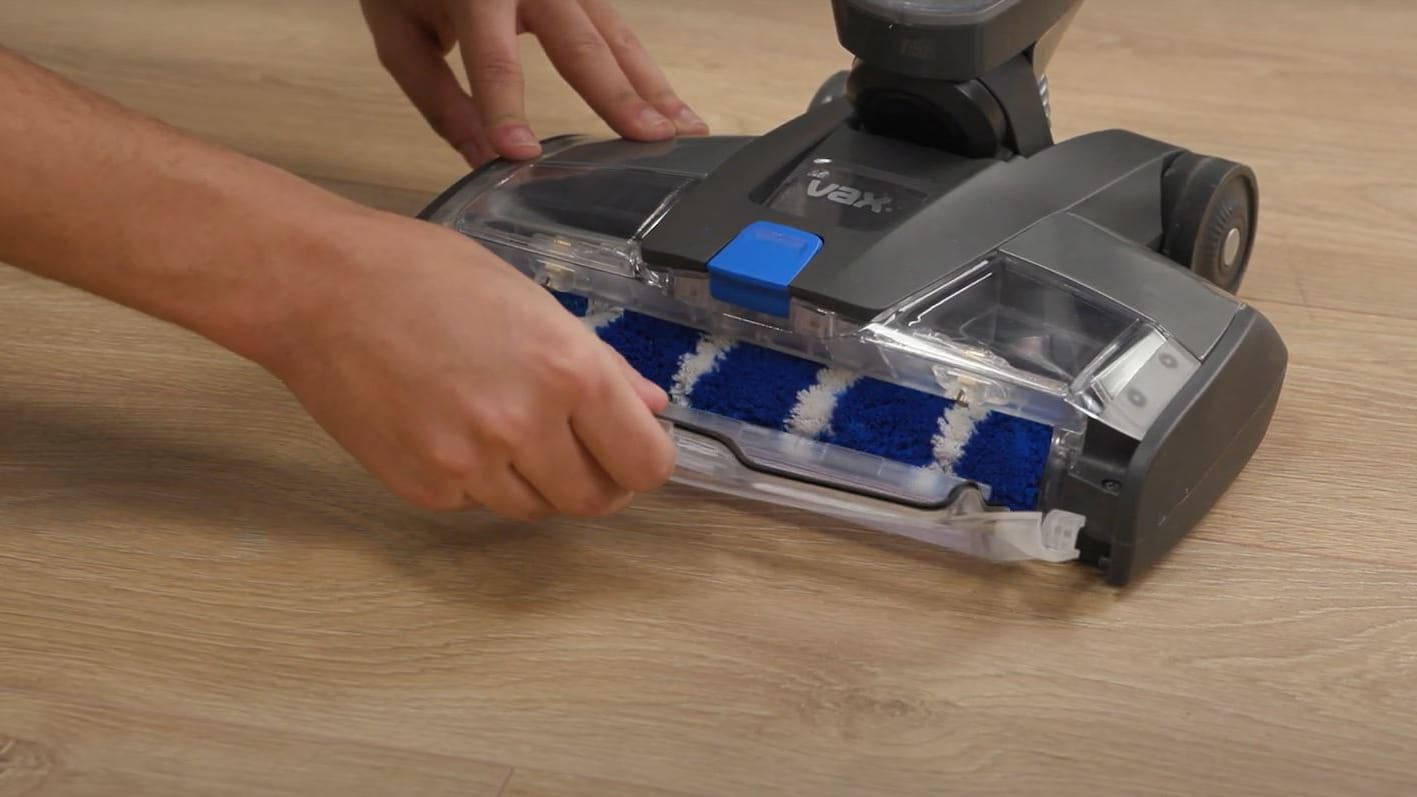

Replace brushroll cover

To refit the brushroll cover, hook onto the tabs on the bottom edge first and then push into place until it clicks.
