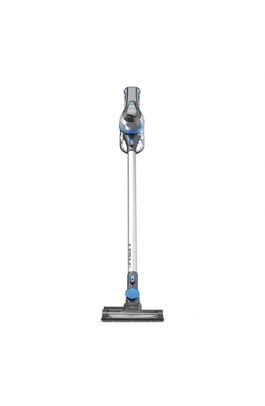

Slim Vac 18v Series

How to videos and documents

Useful video and PDF guides, showing you how to use, maintain and fix your Vax product.

Maintenance

Here is what you can do to keep your appliance performing at its best.

Emptying and cleaning the dirt container

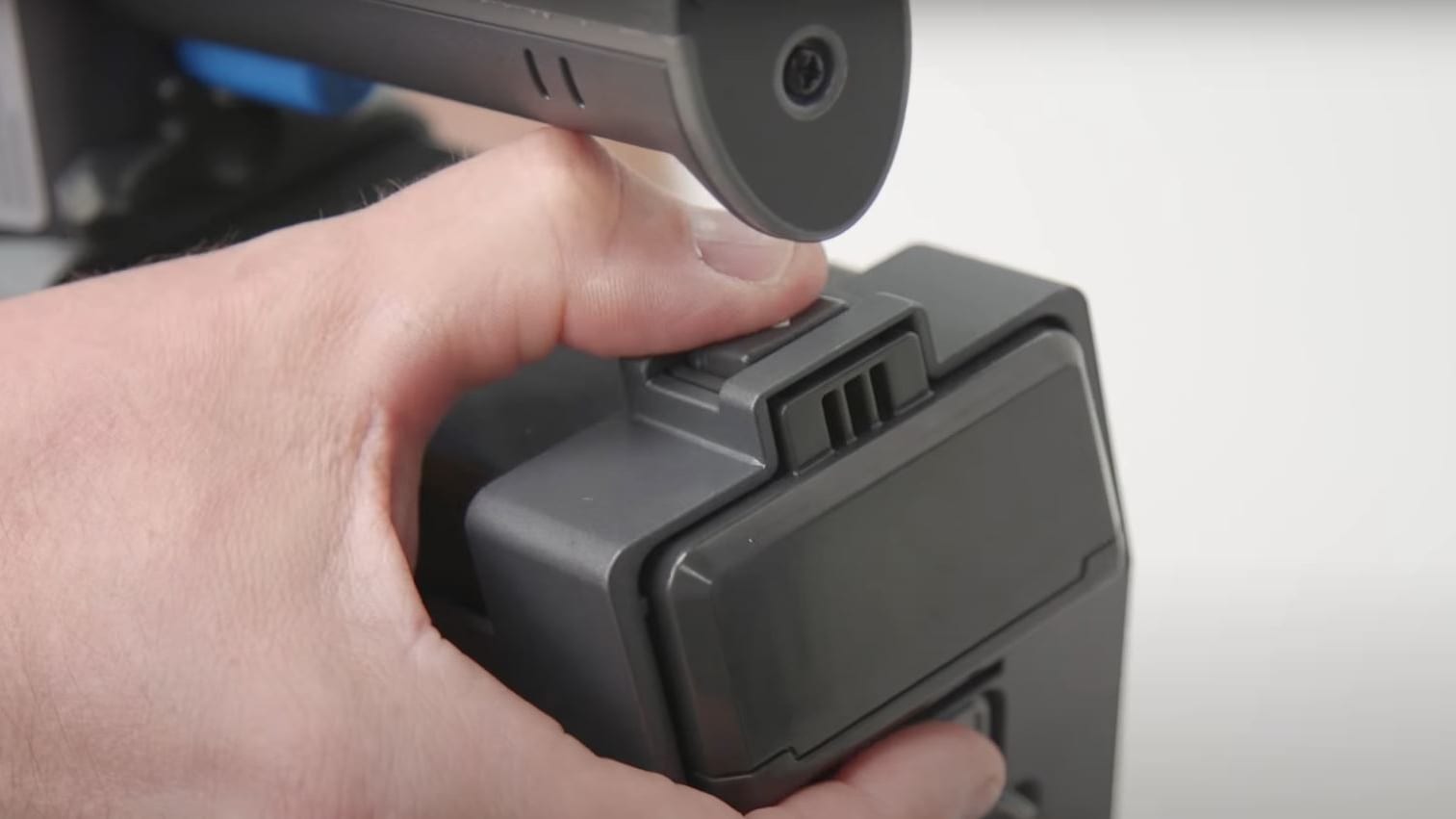

Remove the battery

Remove the battery.

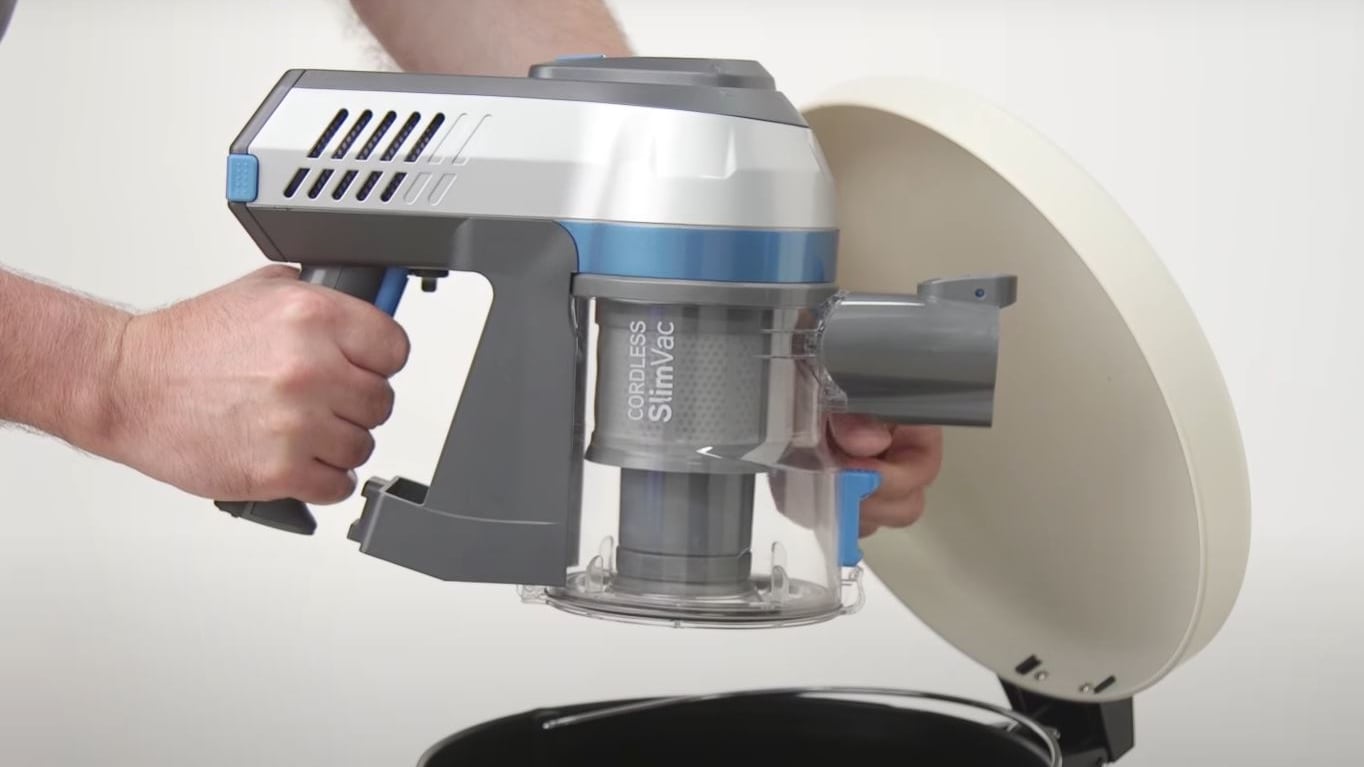

Empty dirt container

Release the dirt and debris over a bin.

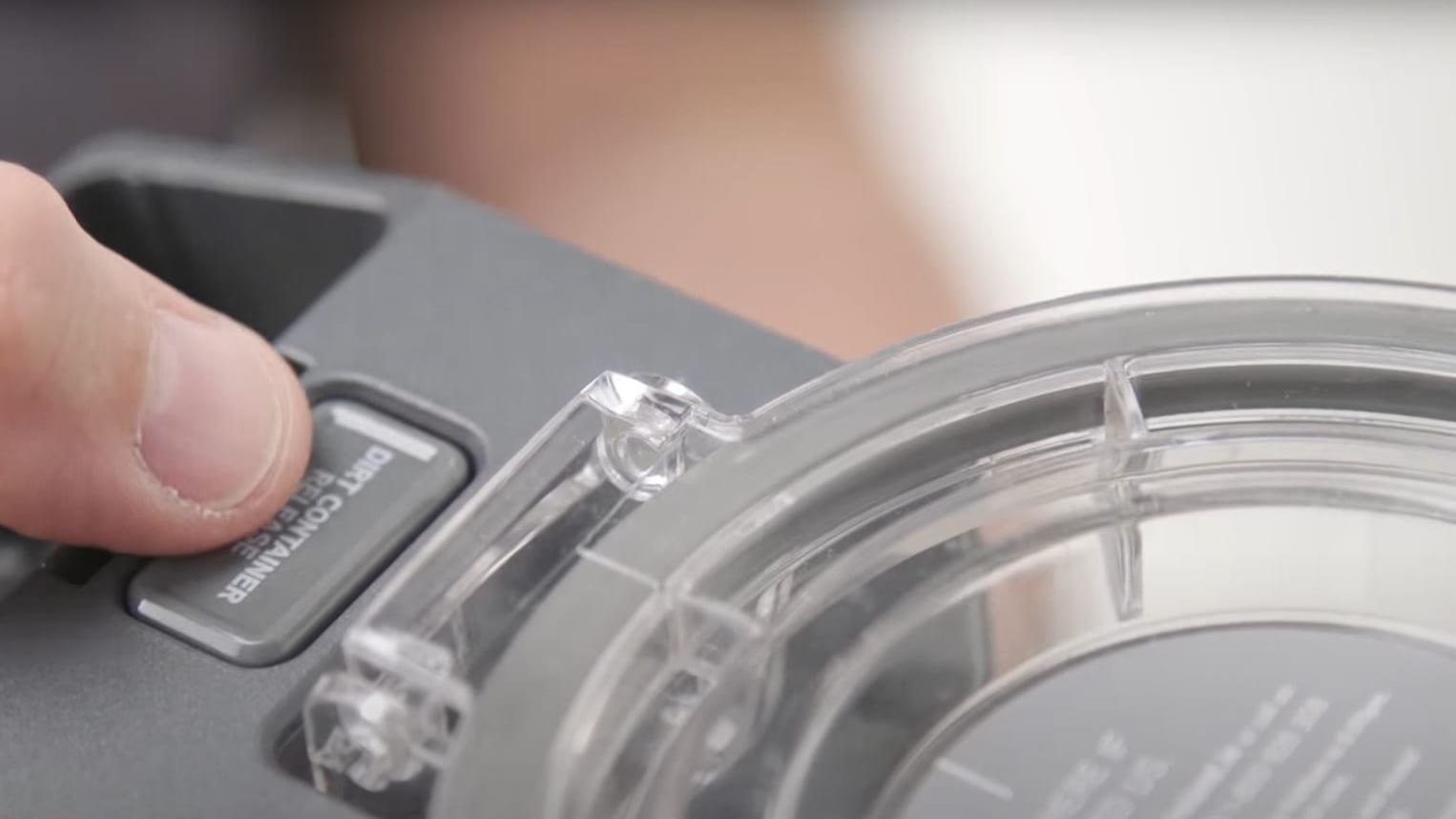

Dirt container release button

Press the dirt container release button.

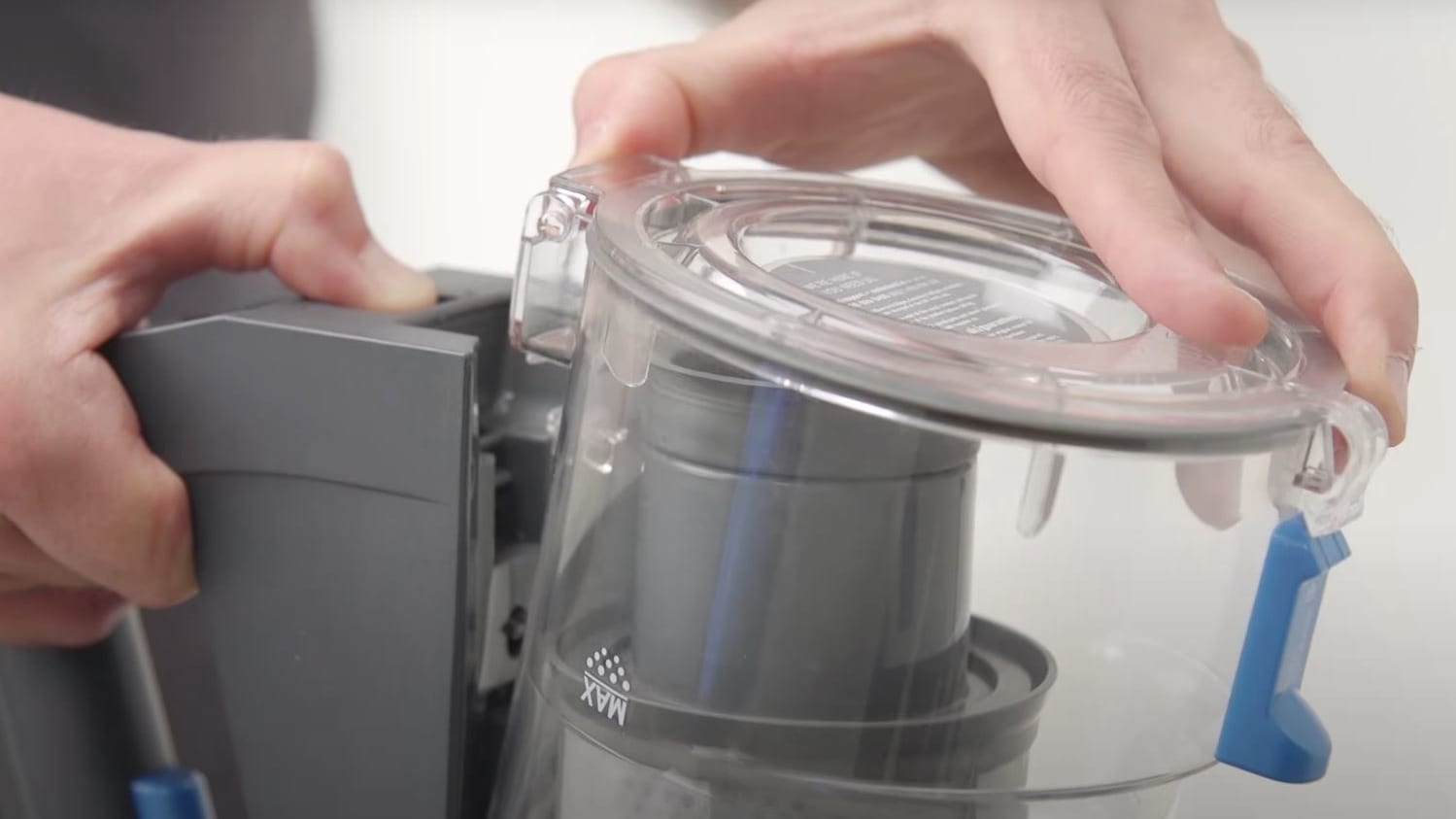

Remove dirt container

Lift to remove the dirt container.

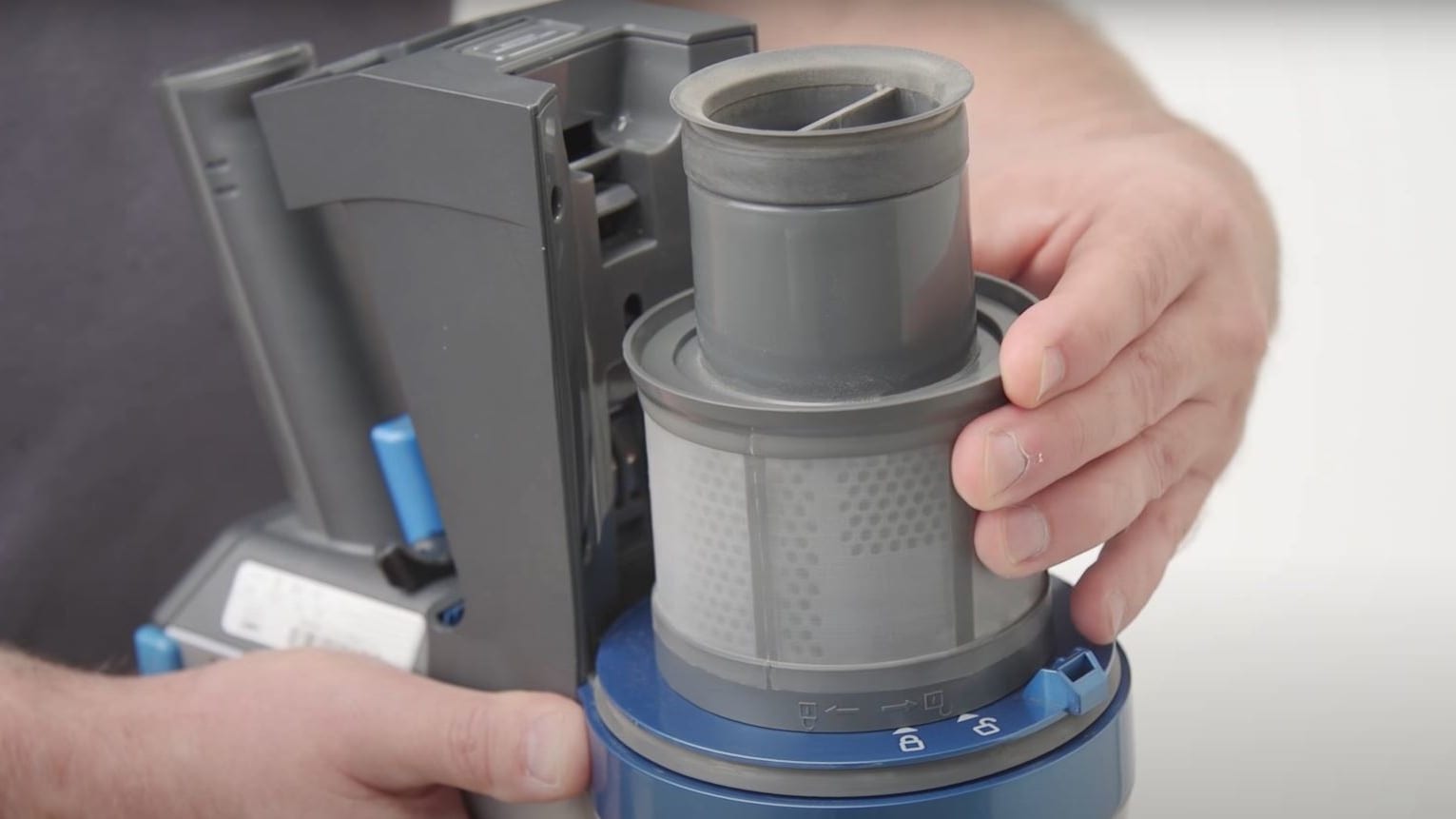

Remove the shroud

Twist to remove the shroud.

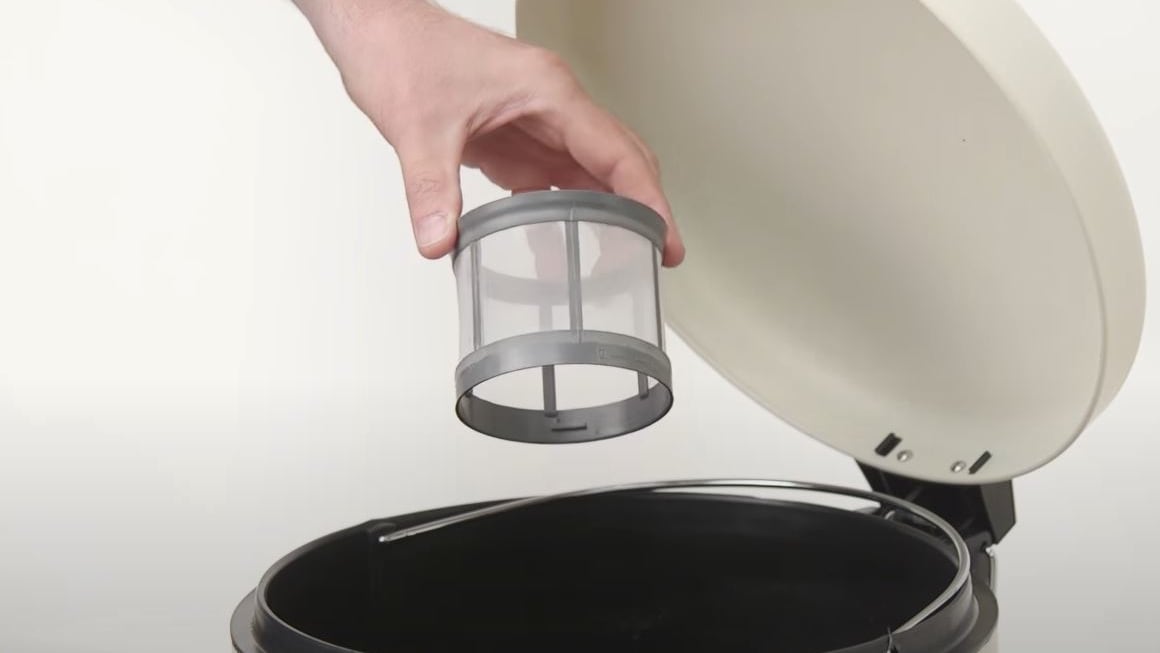

Tap shroud over bin

Tap the shroud to remove any dust or debris.

Remove the separator

Twist to remove the separator.

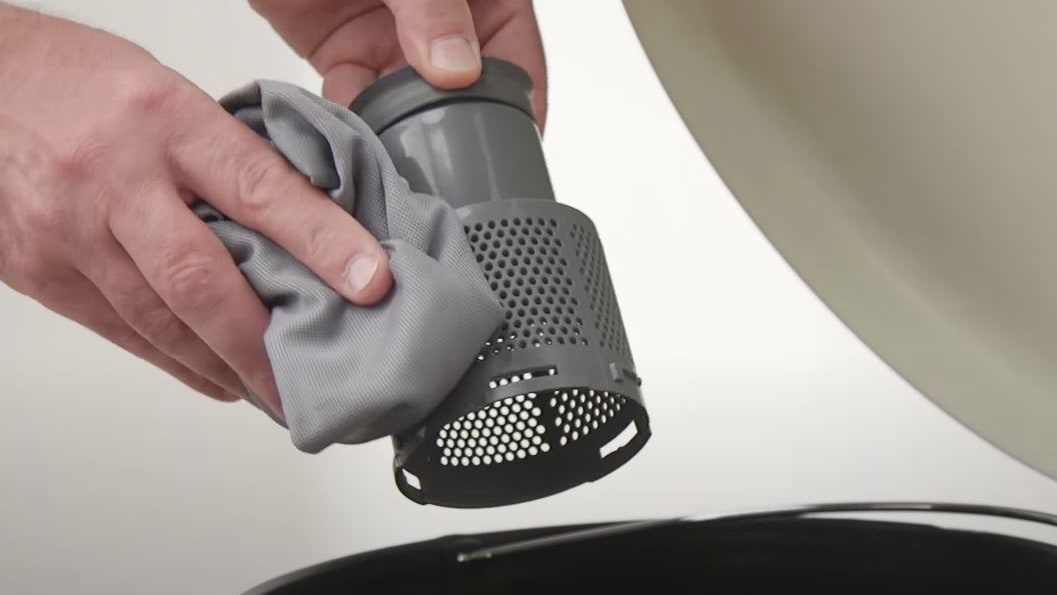

Wipe separator with cloth

Wipe with a cloth to remove any dirt or debris.

Cleaning the post-motor filter
Remove the battery

Remove the battery.

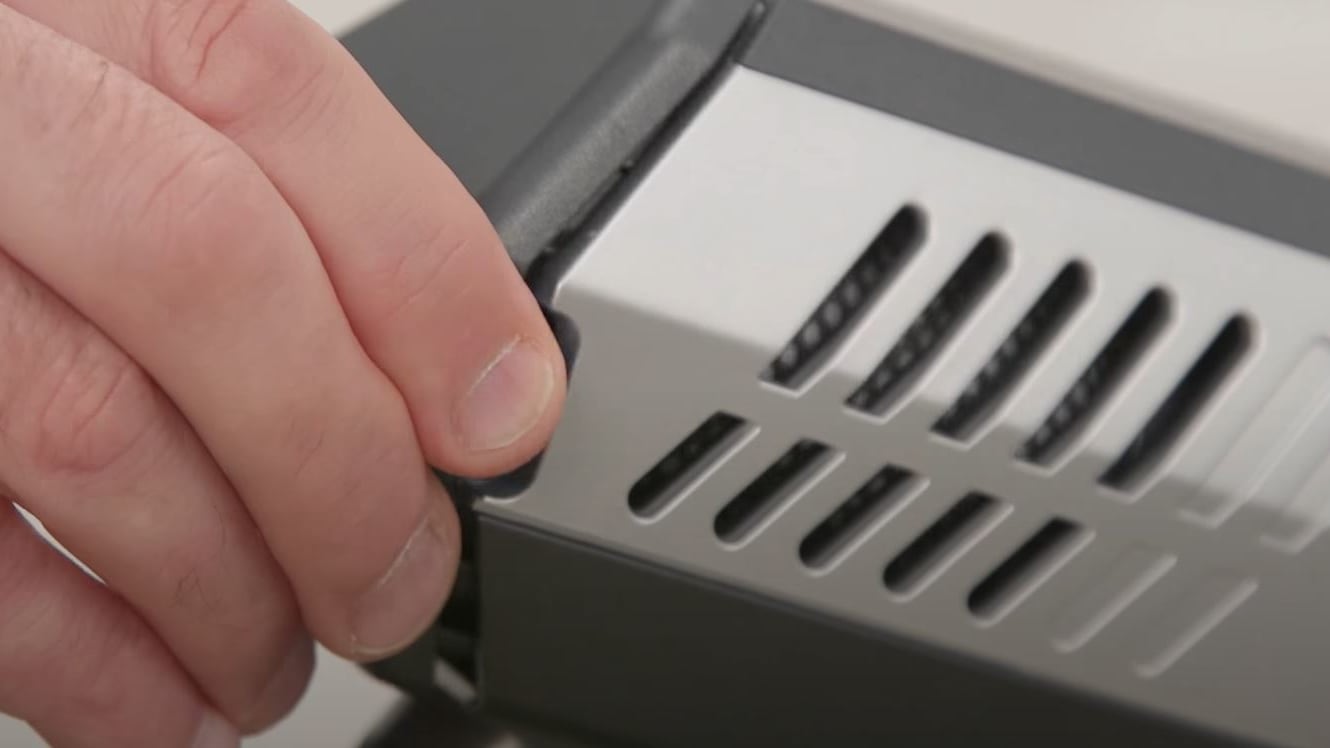

Remove the post-motor filter

Press the release buttons to remove the post motor filter.

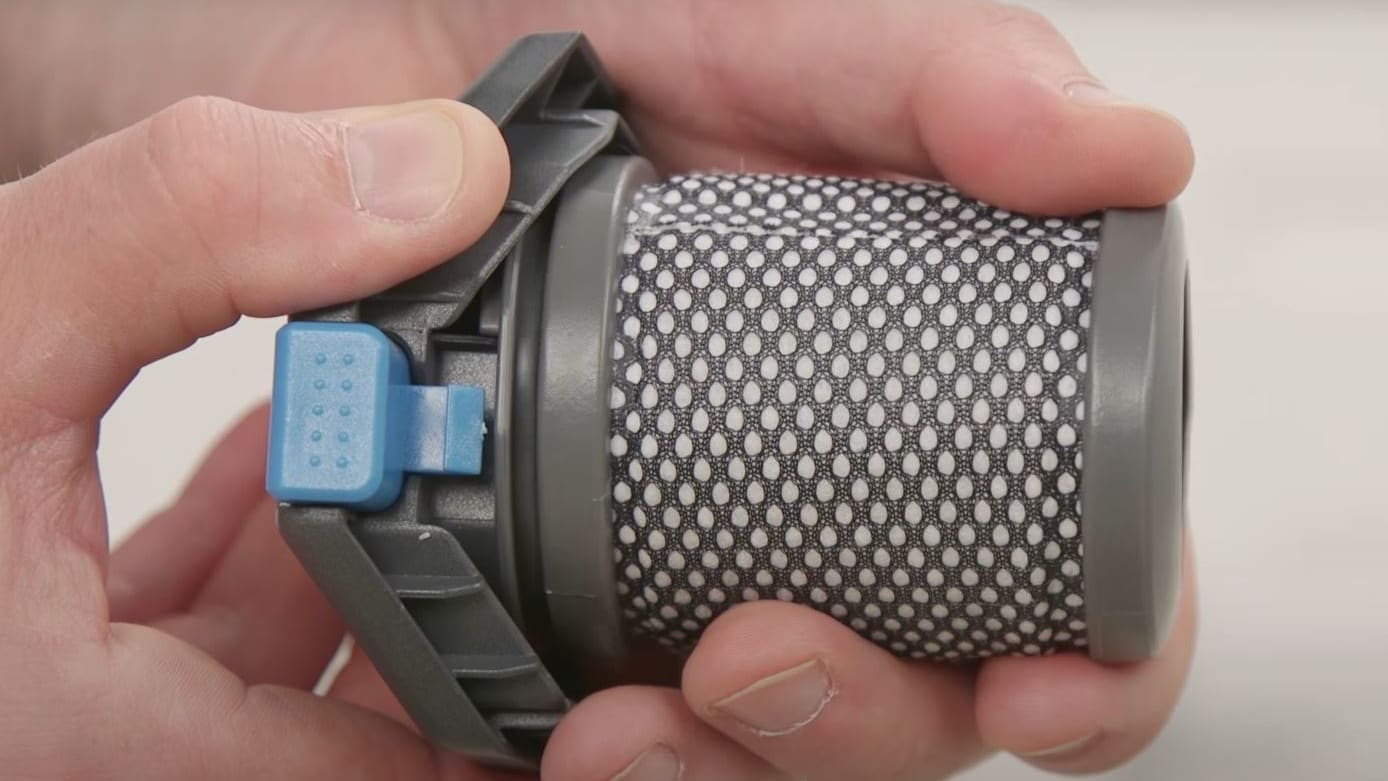

Remove post-motor filter frame

Pull to remove the post motor filter from the frame.

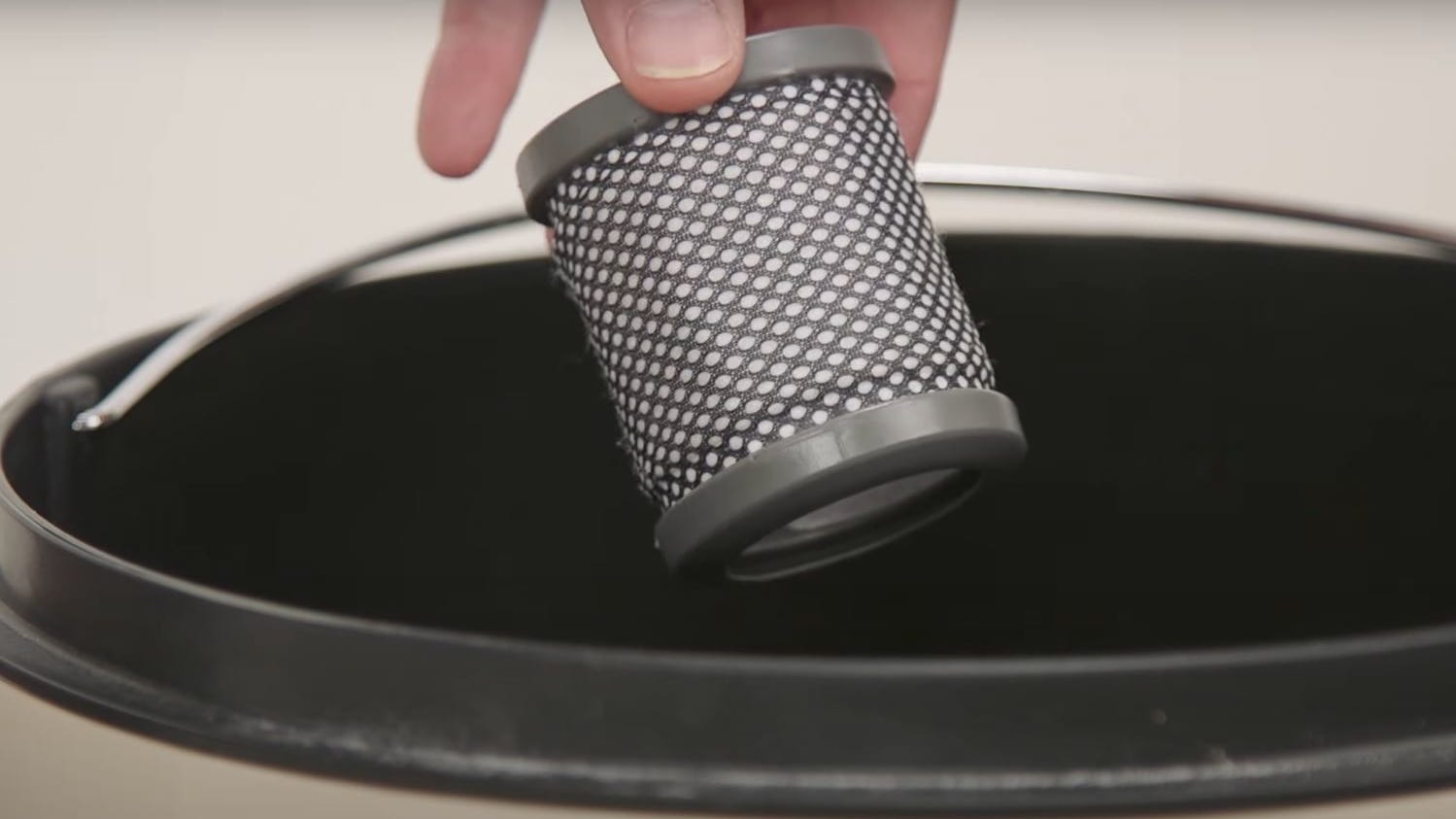

Tap post-motor filter over bin

Tap the filter against the side of a bin.

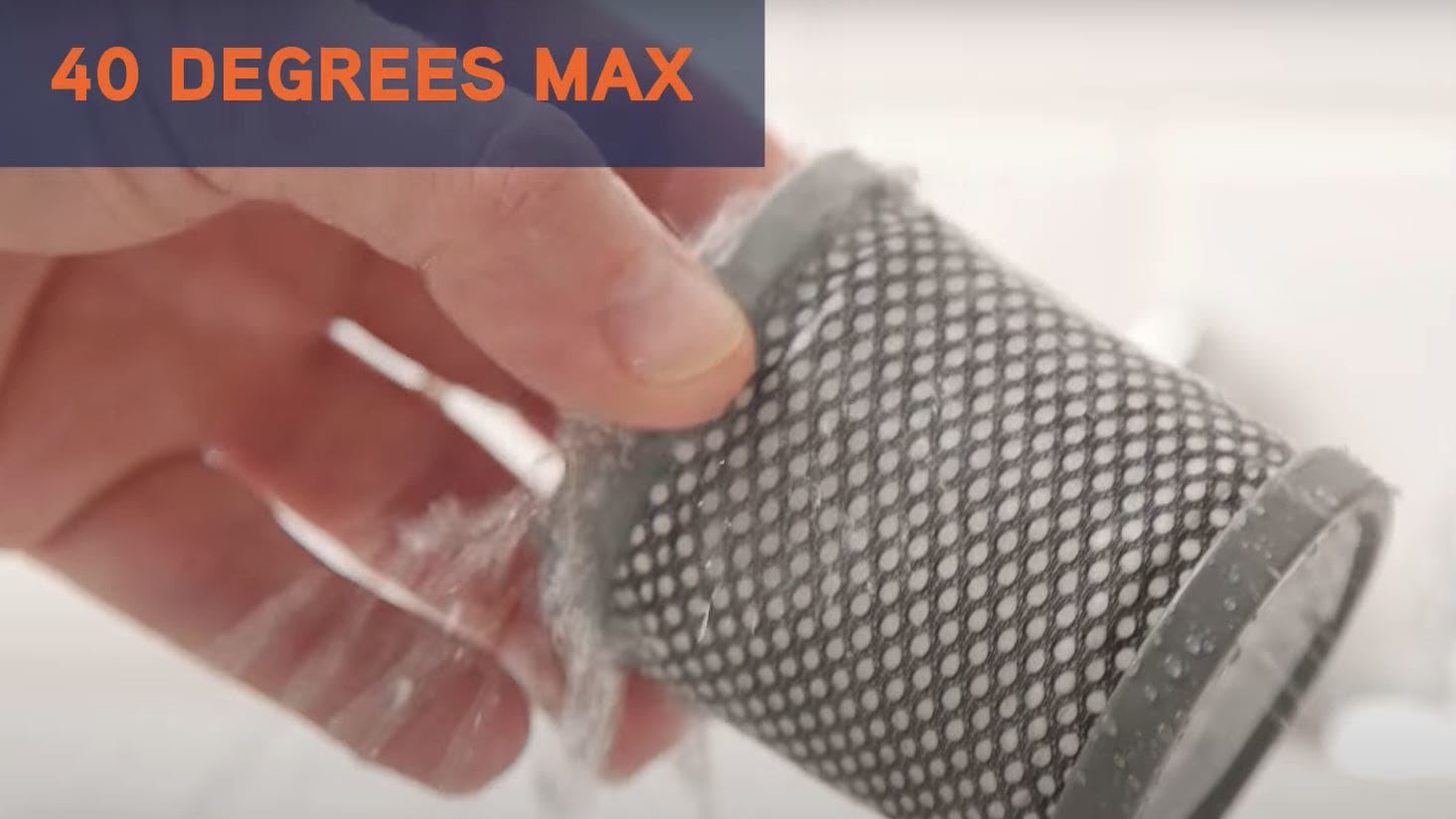

Rinse post-motor filter

Rinse the filter under the tap. Allow 24 hours to fully air dry.

Accessing the brushbar

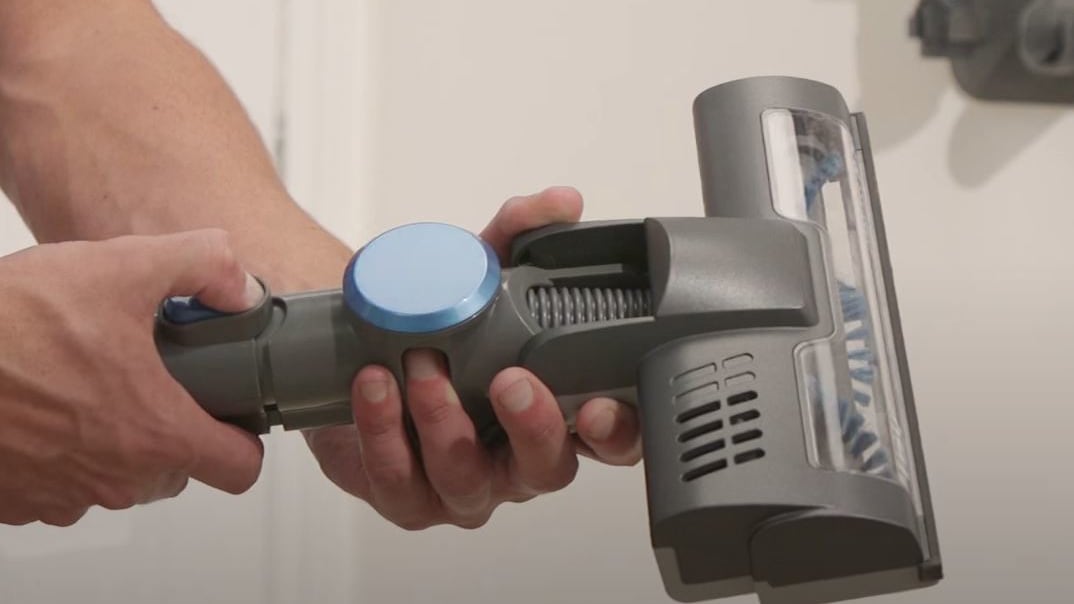

Remove the floorhead

Remove the floorhead.

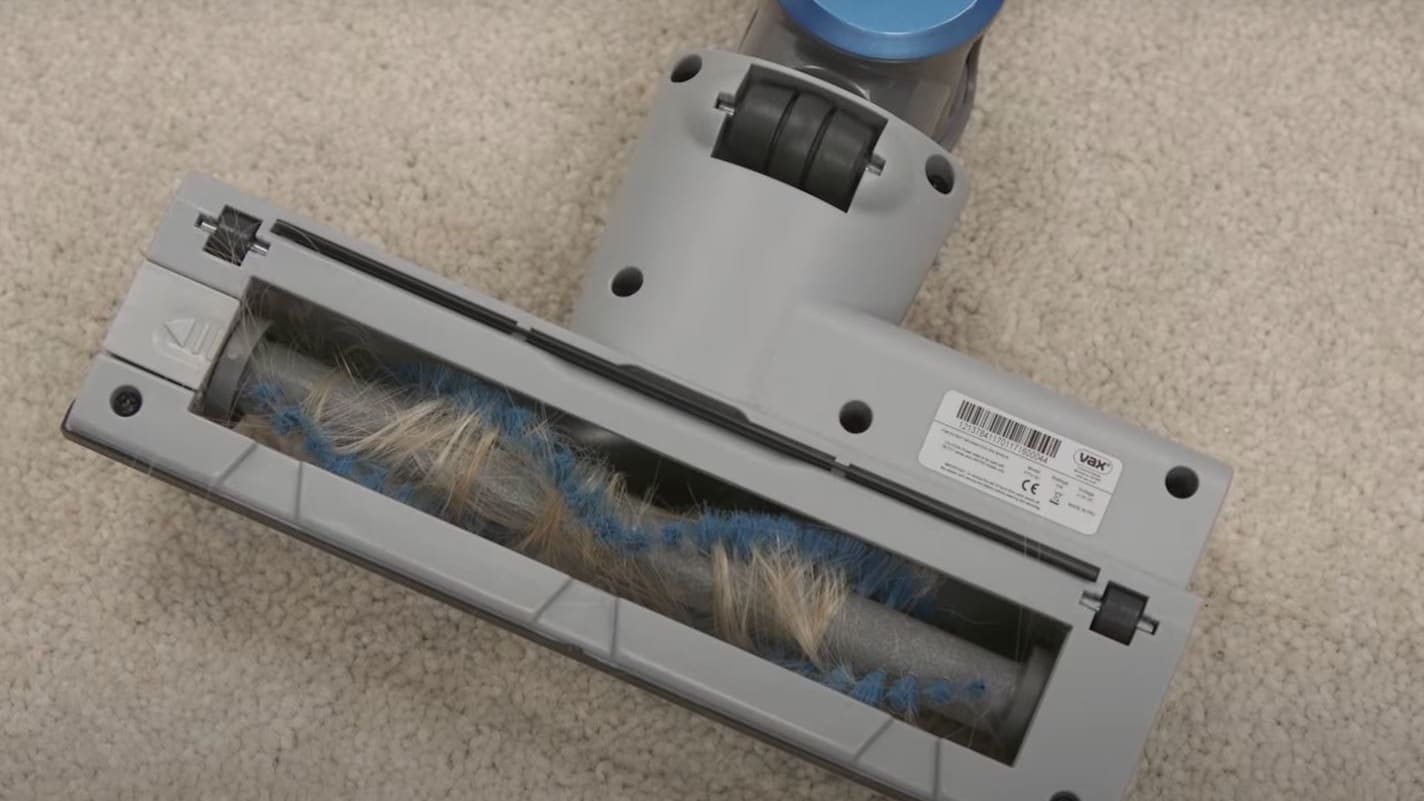

Turn floorhead

Turn it over to expose the brushbar.

Press brushbar clips

Press the brushbar release clips.

Remove brushbar

Lift the brushbar to remove.

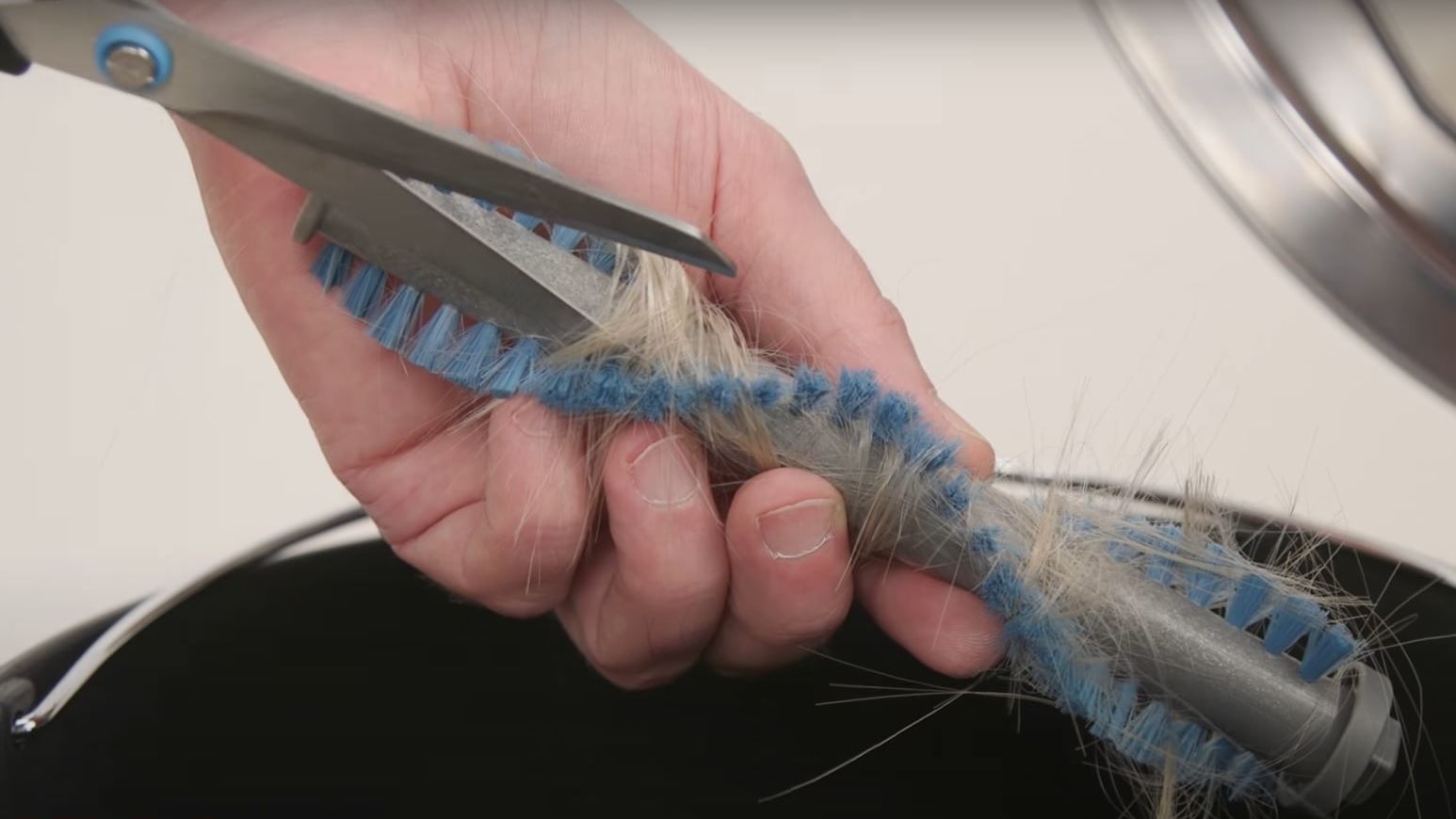

Remove hair from brushbar

Cut any hair or debris from around the brushbar.

Replace brushbar

Refit the brushbar back in to the floorhead.
