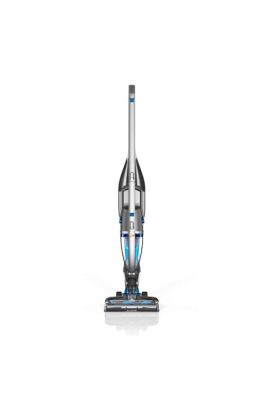

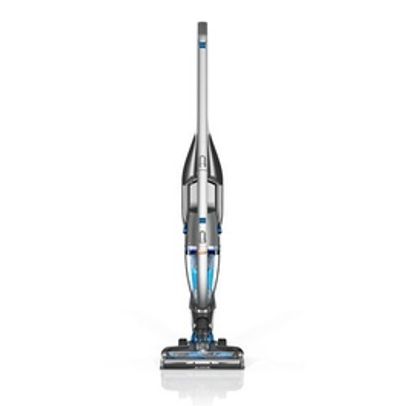

Air Cordless Switch

How to videos and documents

Useful video and PDF guides, showing you how to use, maintain and fix your Vax product.

Maintenance

Here is what you can do to keep your appliance performing at its best.

Cleaning the pre-motor filter

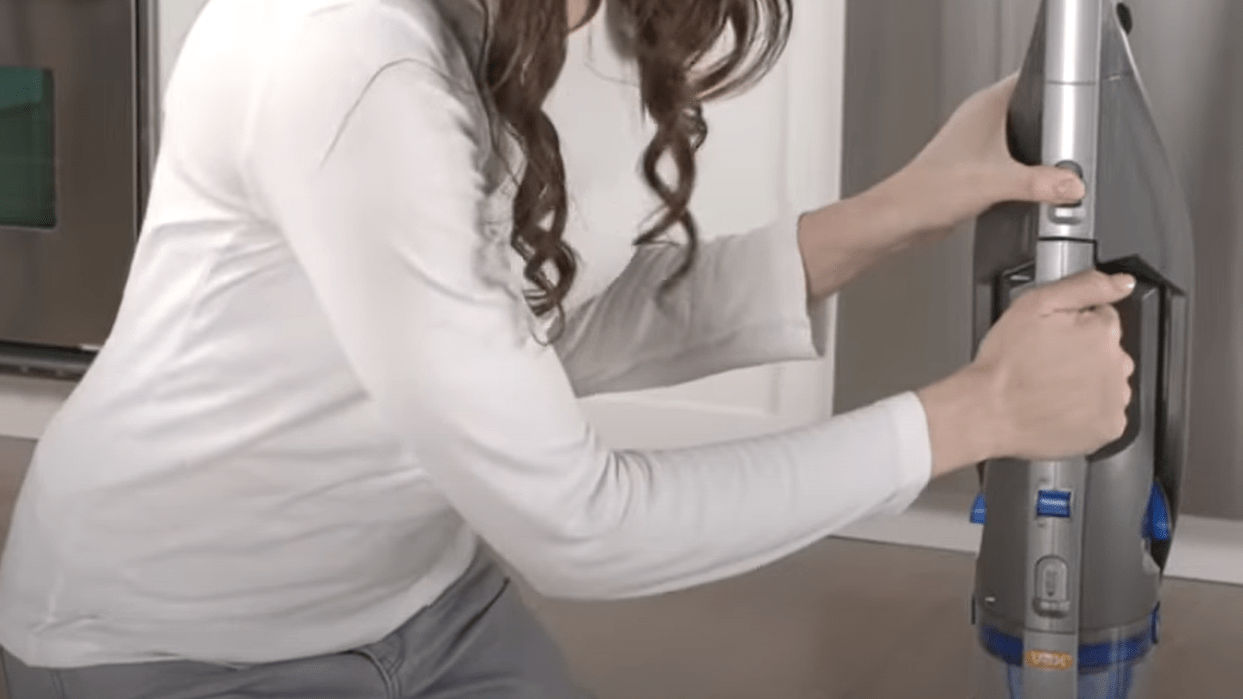

Remove the handheld

Remove the handheld unit.

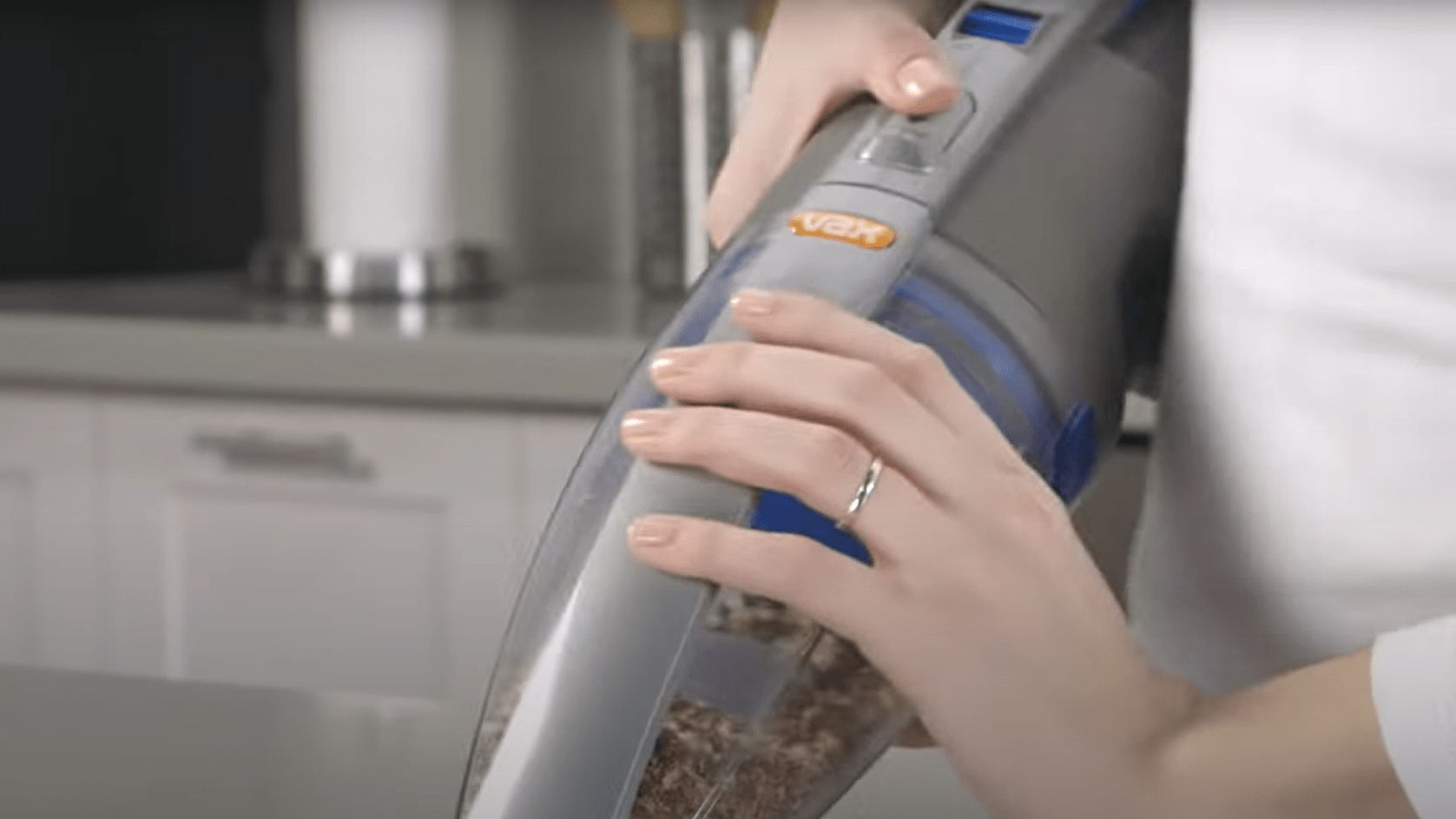

Remove dirt container

Release the dirt container.

Remove filter and housing

Lift the filter housing out of the top of the dirt container.

Remove pre motor filter

Lift to remove the pre motor filter.

Tap pre motor filter

Tap against the side of a bin.

Rinse the filter

Rinse under the tap.

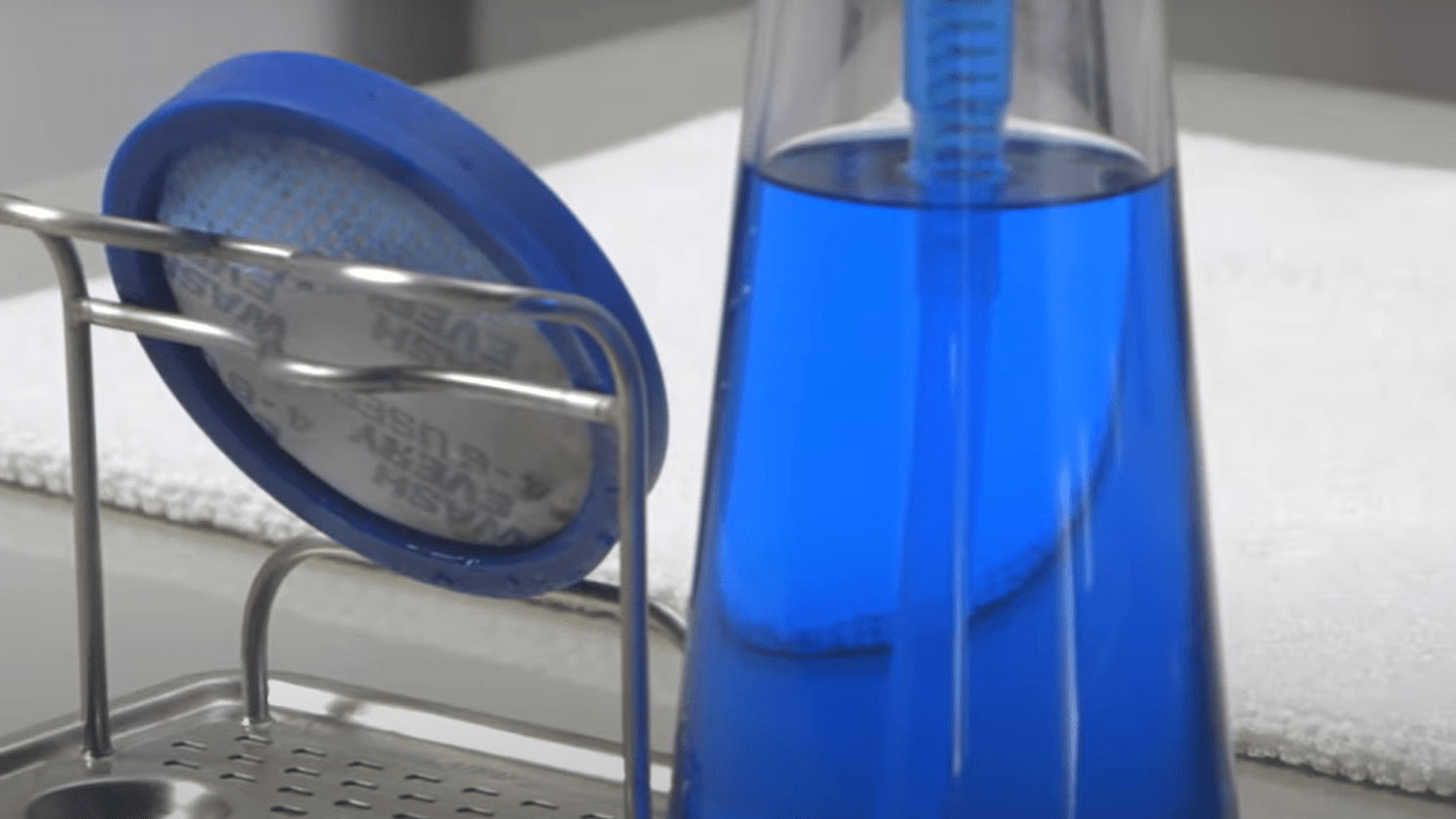

Leave filter to dry

Allow 24 hours to air dry.

Emptying and cleaning the dirt container
Remove the handheld

Remove the handheld unit.

Remove dirt container

Release the dirt container.

Remove the filter and housing

Lift the filter housing out of the top of the dirt container.

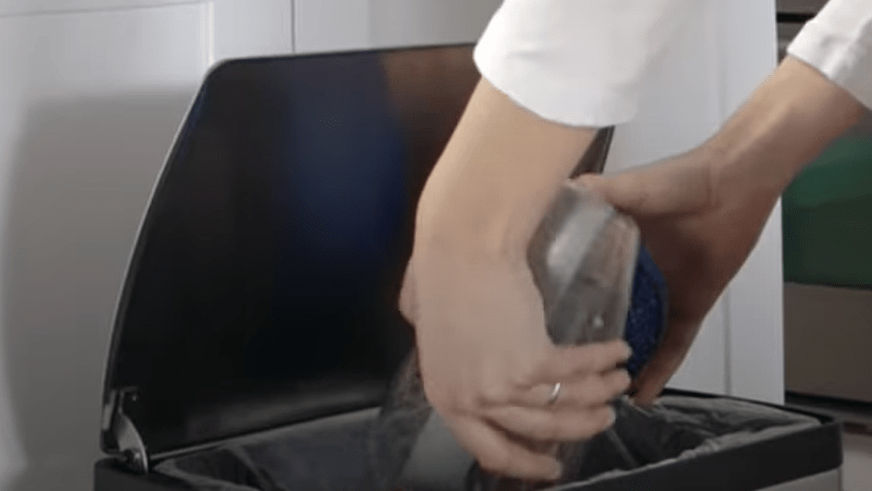

Empty the dirt bin

Tip the dirt into a bin.

Clearing a blockage from the brushbar

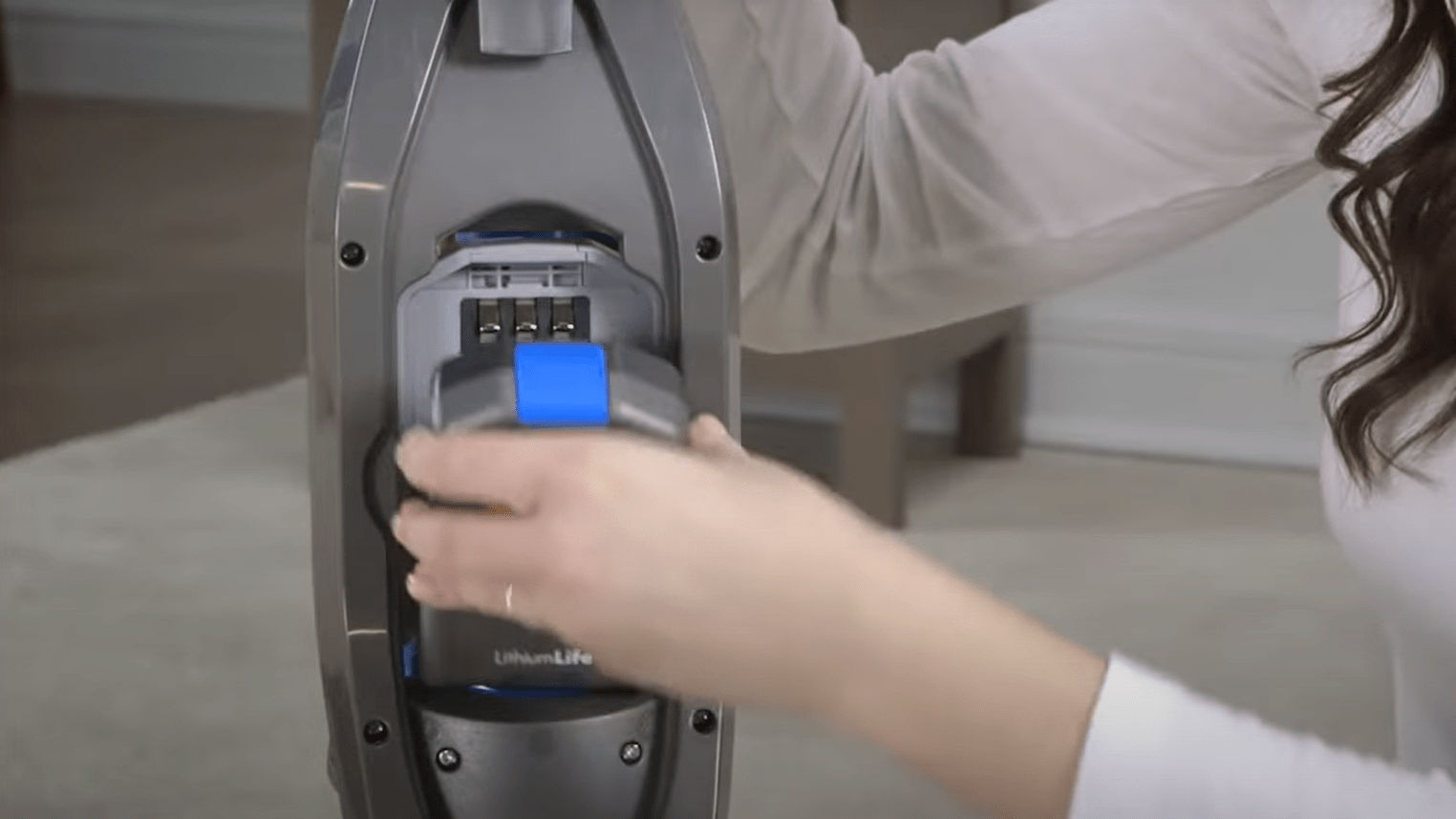

Remove the battery

Remove the battery.

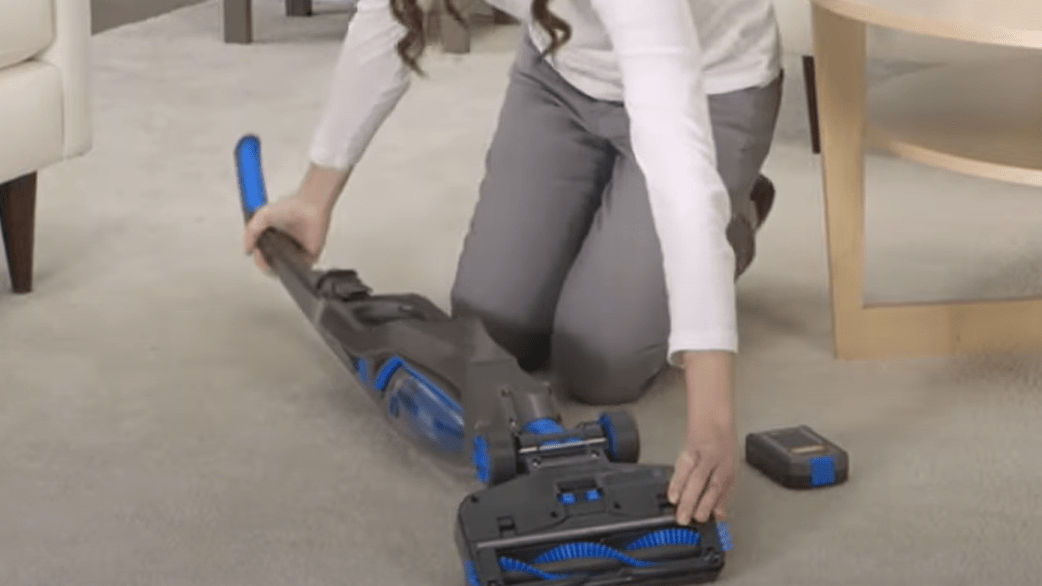

Lie machine on its front

Lie the machine on its front.

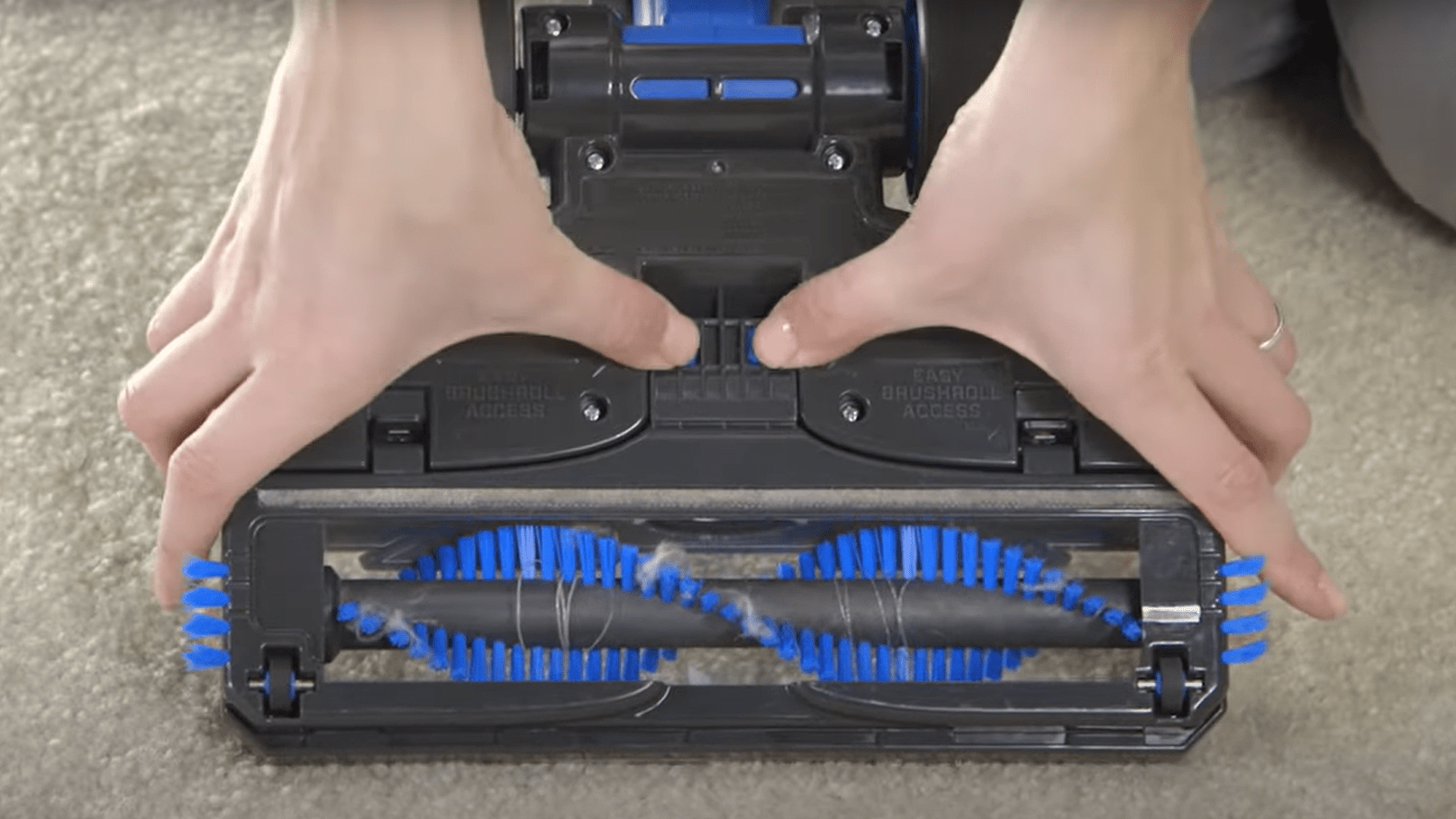

Brushbar cover clips

Push the locking clips towards each other.

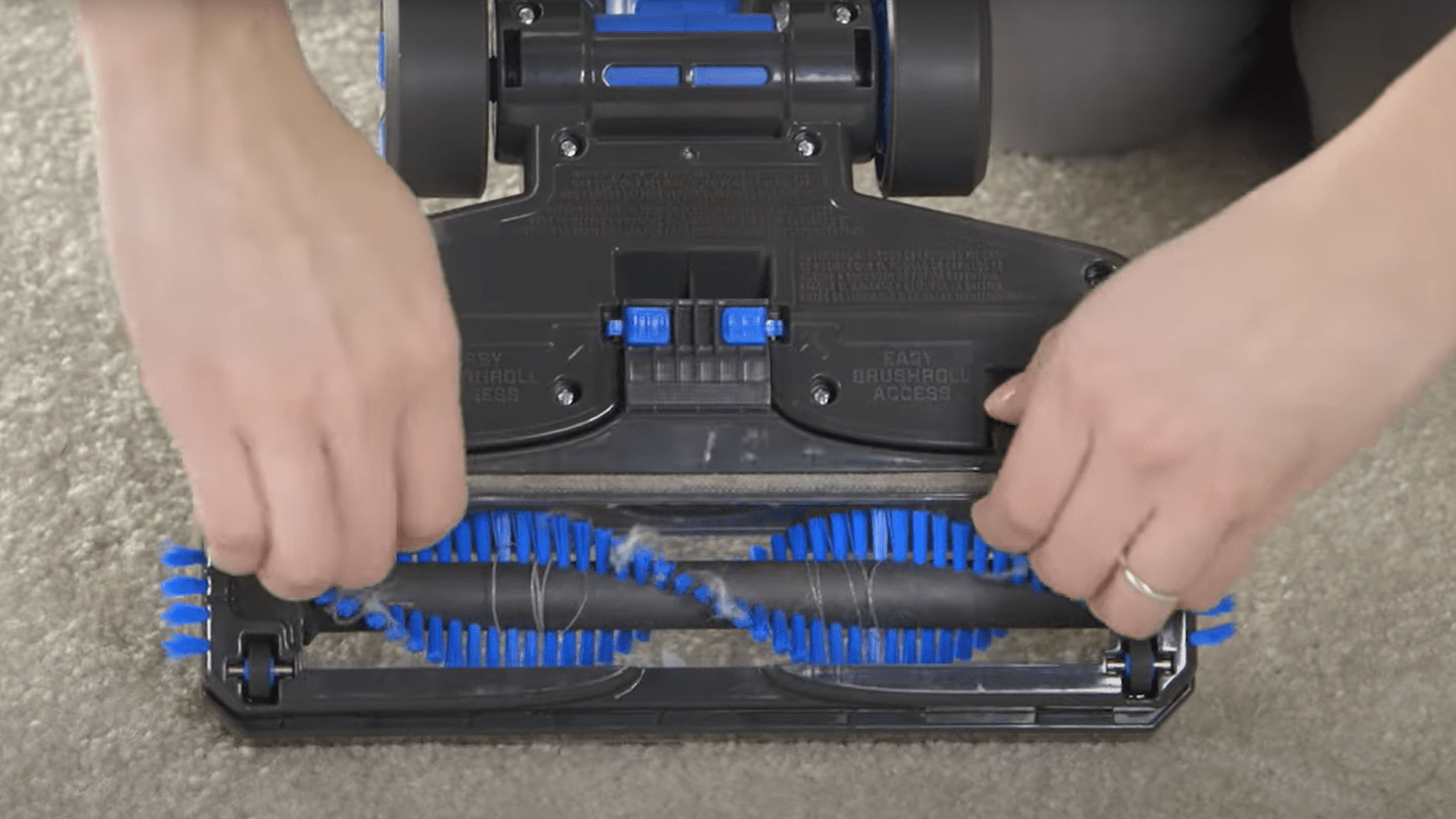

Brushbar cover clips

Push the brushbar cover clips toward the brushbar.

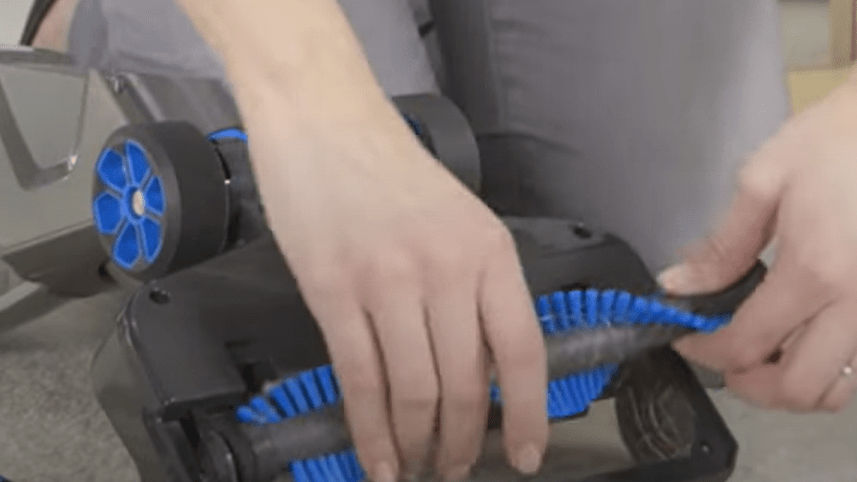

Remove brushbar

Lift to remove the brushbar.

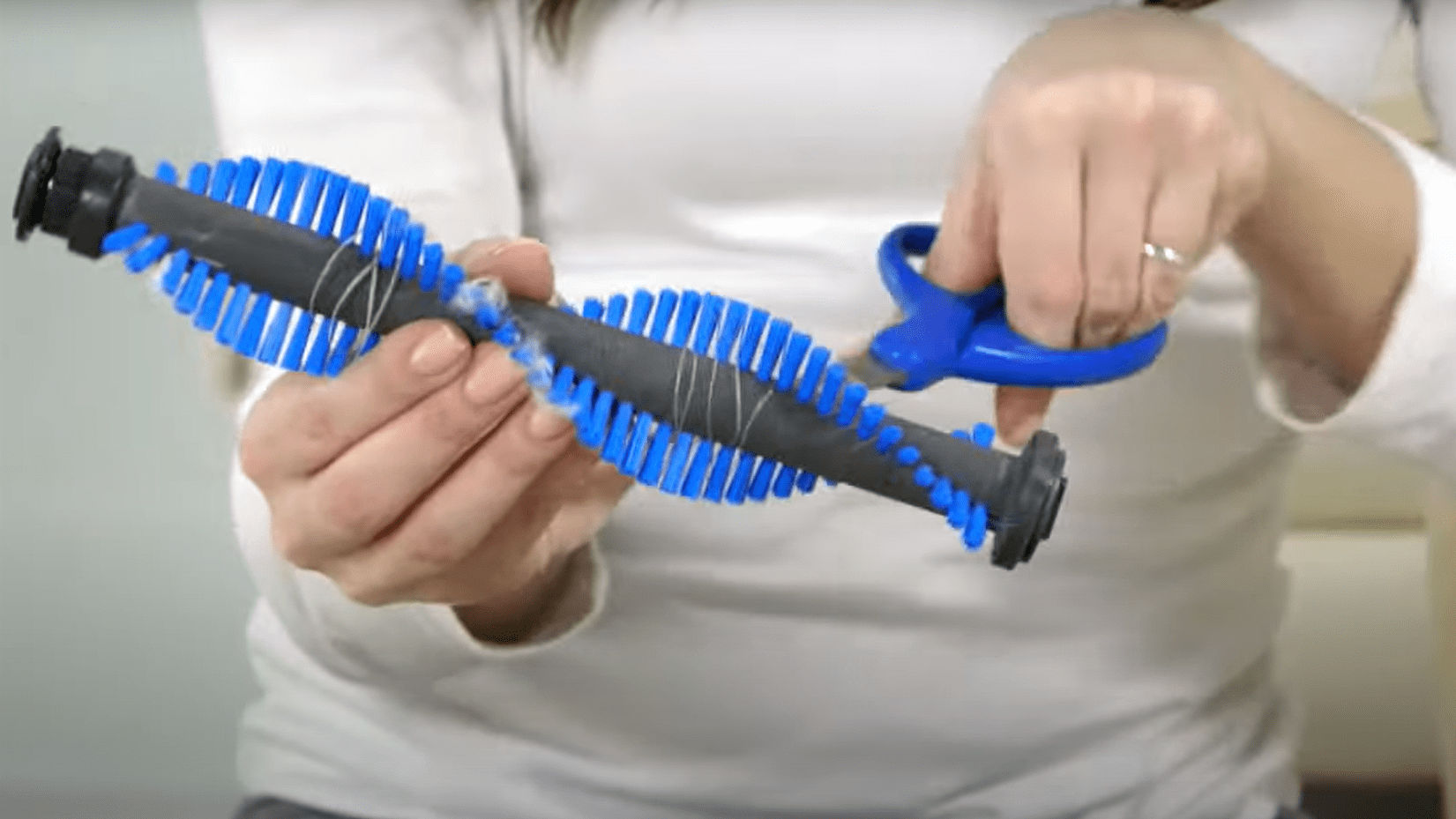

Cut hair from brushbar

Using scissors, cut any hair from around the brushbar.

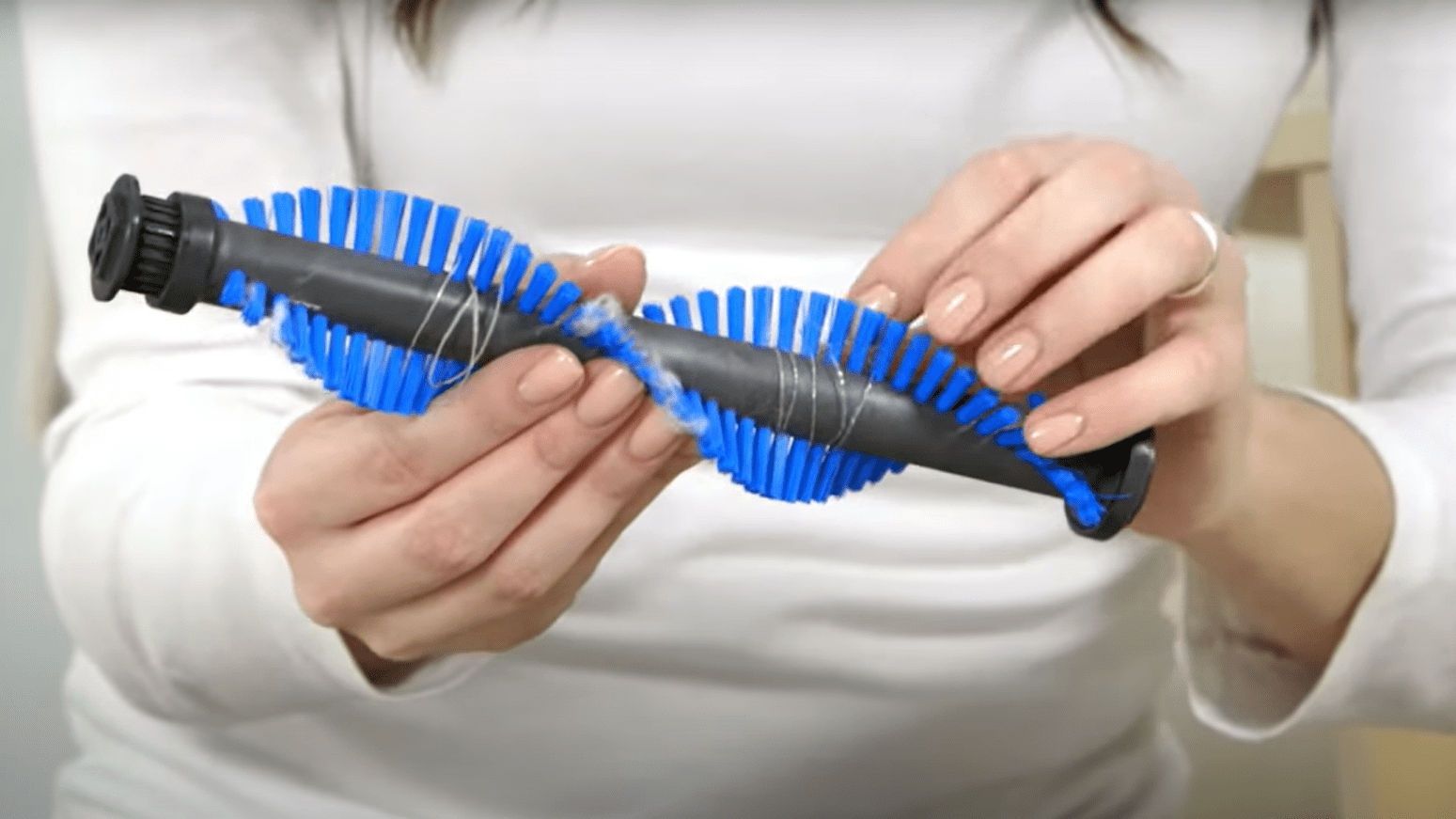

Clear debris from brushbar

Pull to remove any debris.

Cleaning the terminals
Remove the handheld

Remove the handheld.

Remove the battery

Remove the battery.

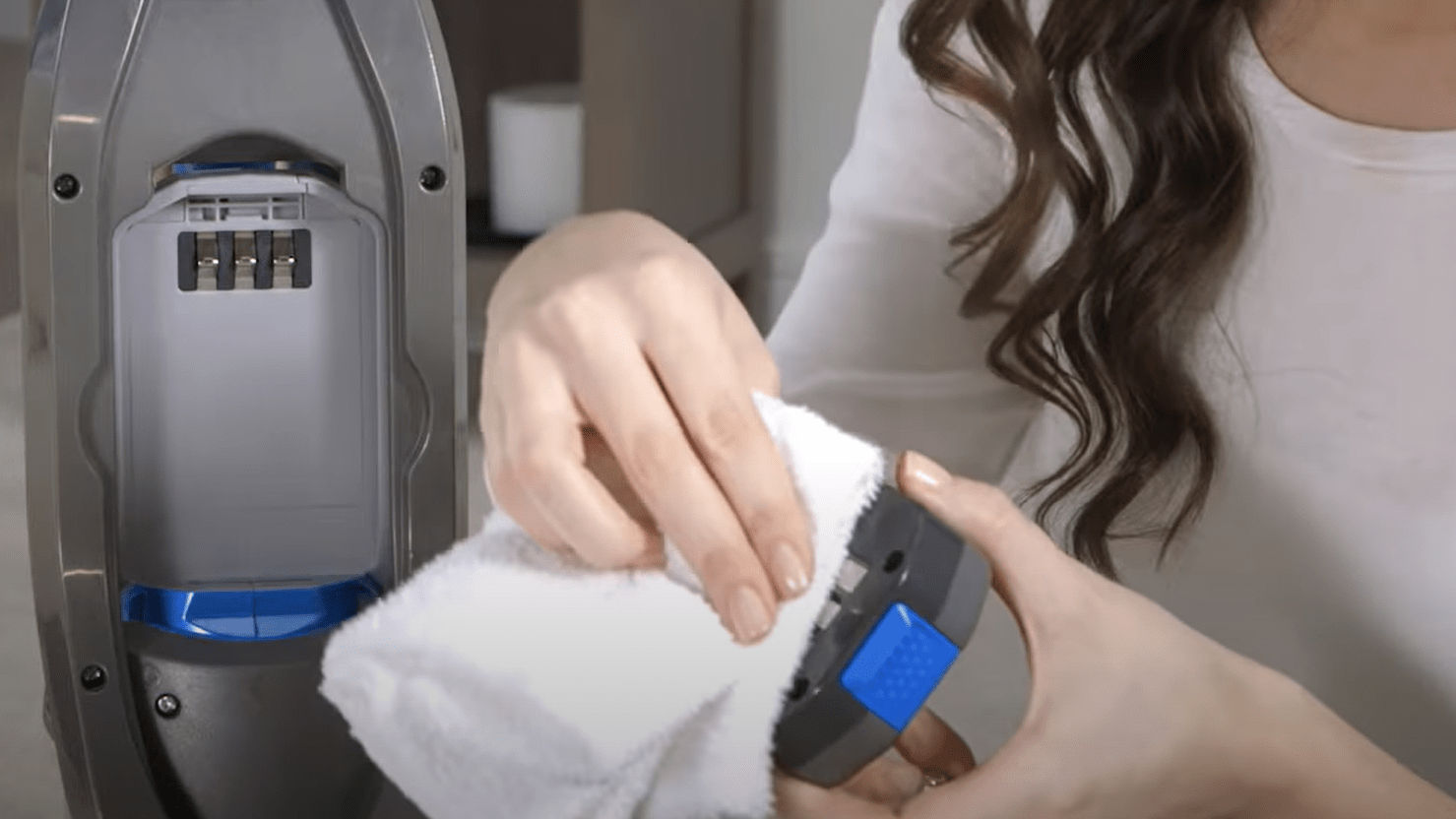

Clean battery terminals

Use a soft cloth to wipe the terminals on the battery,

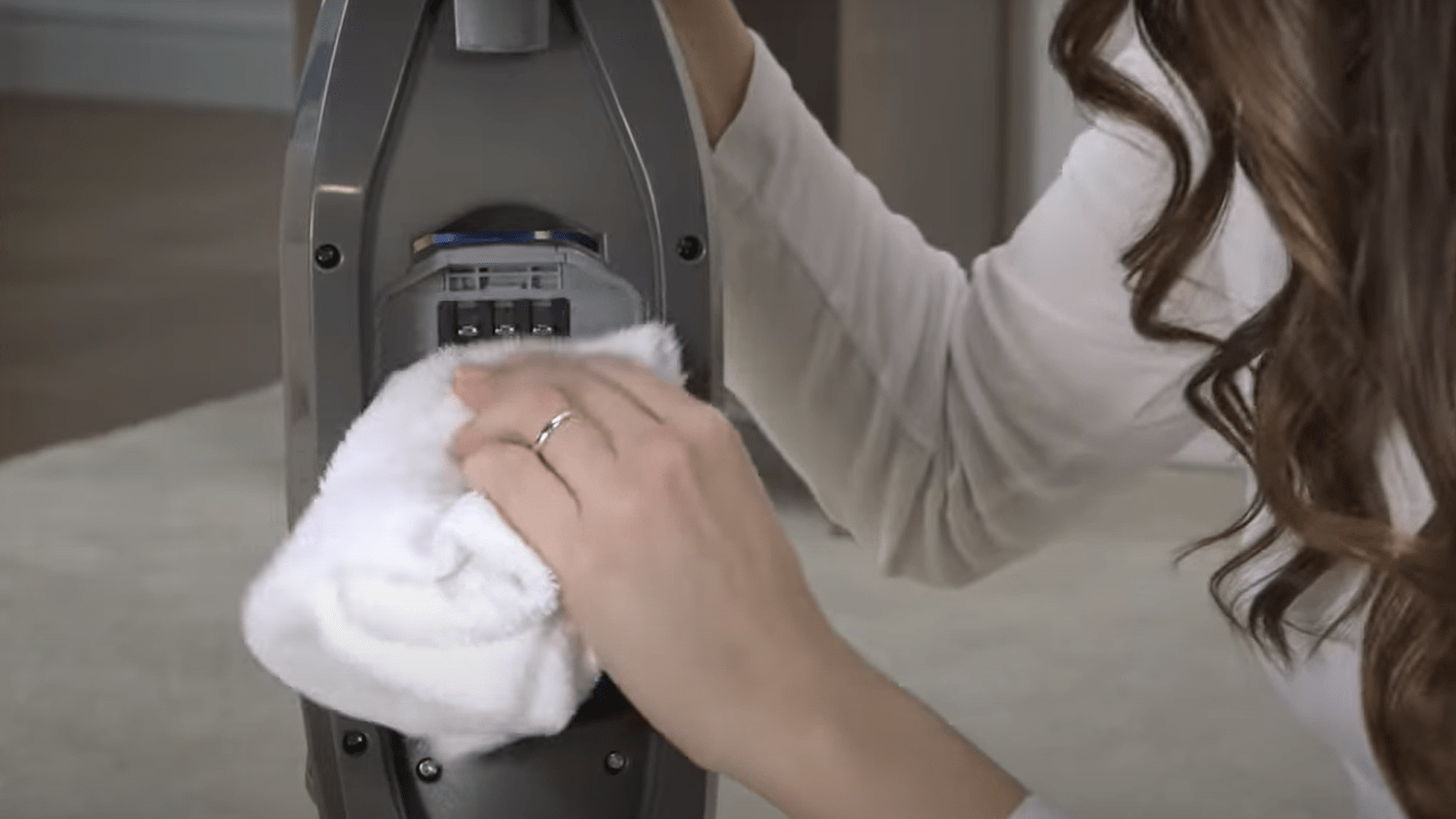

Clean machine terminals

The main machine,

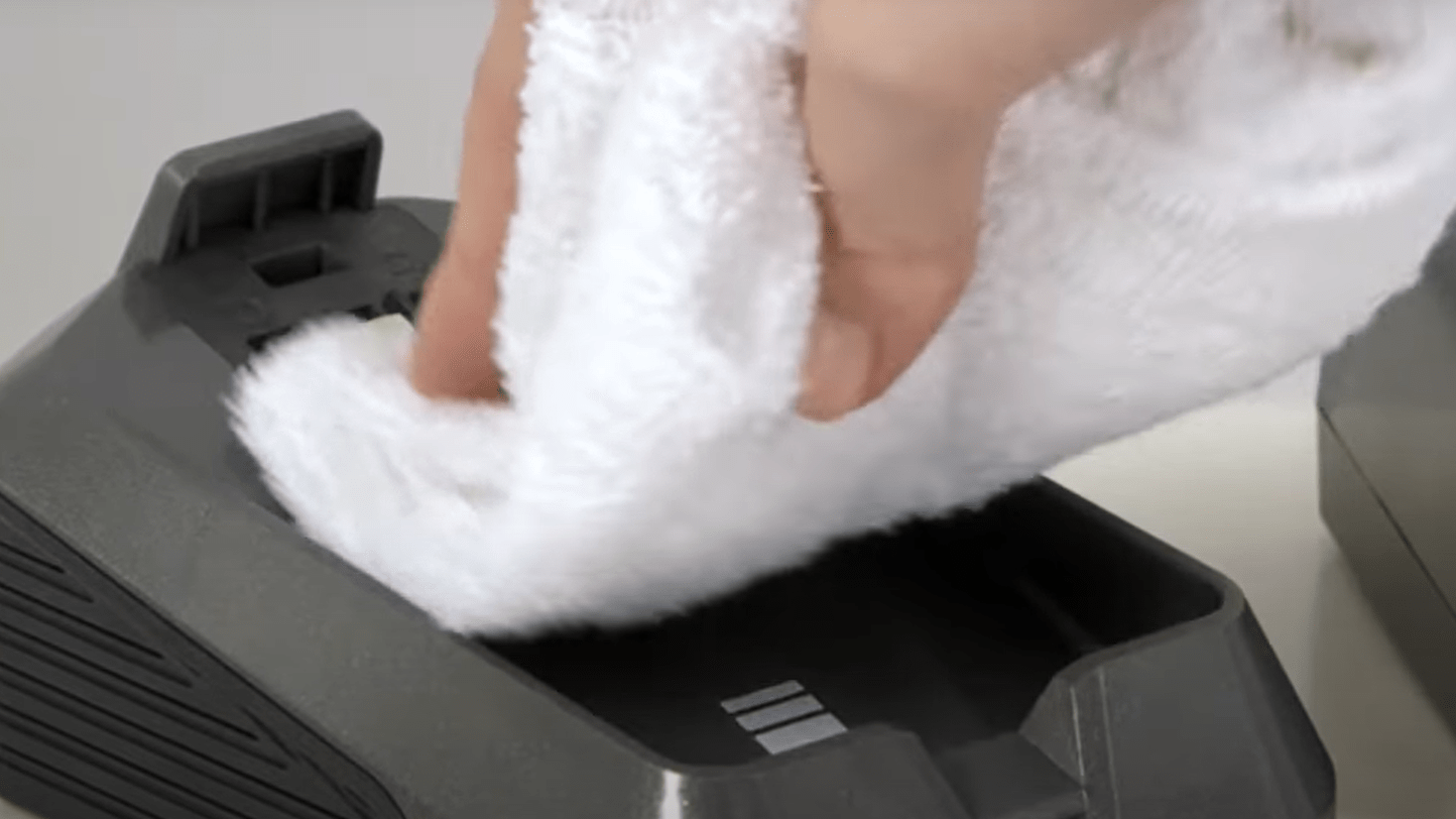

Clean charger terminals

and the charger.

Troubleshooting

Here is what you can do to keep your appliance performing at its best.
